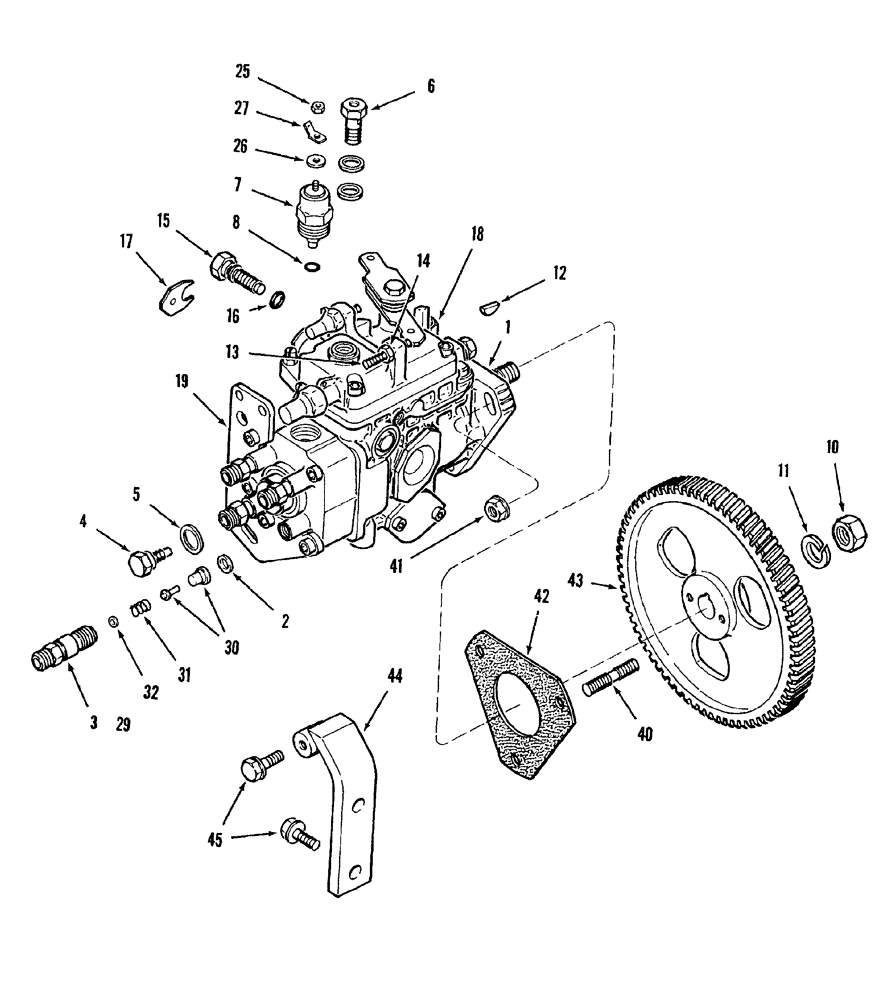

Запчасти Case IH 8840 (10-048) - FUEL INJECTION PUMP AND DRIVE (DIESEL) (10) - ENGINE

JR908184

REMAN-INJECTION PUMP

ASSEMBLY fuel, previous to1990

1шт.

JC908184

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

P/N JR917507 interchanges with P/N JR908184, but existing stock of P/N JR908184 should be used prior to ordering P/N JR917507.

1шт.

J917507

PUMP

ASSEMBLY fuel injection, new

1шт.

P/N JR917507 interchanges with P/N JR908184, but P/N JR917507 must be stocked for it's respective effectivity.

1шт.

JR917507

REMAN-INJECTION PUMP

ASSEMBLY fuel, 1990 and later

1шт.

JC917507

CORE-INJECTION PUMP

Return Part Number, use this part number to return pump core for credit

1шт.

J918640

FUEL TUBE

TUBE pump, 1990 and later

1шт.

P/N J918640 must be stocked for it's respective effectivity.

1шт.

1

J920393

SEAL

shaft

1шт.

2

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

delivery valve

4шт.

3

J903571

ADAPTER

FITTING delivery valve

4шт.

4

3079483R1

SCREW

vent

1шт.

5

3053133R1

SEALING RING,M8 x 11.5 x 1

GASKET vent screw

1шт.

6

J905465

BANJO BOLT

banjo, connector

1шт.

7

J903575

SOLENOID

ASSEMBLY shut down, 12 volt

1шт.

8

J903577

SEAL

solenoid

1шт.

10

J903738

NUT

hex, 14 mm

1шт.

11

92-11056

LOCK WASHER,9/16"

1шт.

12

J902332

KEY

retainer, pump gear

1шт.

13

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

low idle stop

1шт.

14

J904783

NUT

idle screw

1шт.

15

J904874

SCREW timing lock

1шт.

16

J904785

O-RING,8 mm ID x 2.5 mm

timing lock screw

1шт.

17

J904786

PLATE

timing lock

1шт.

18

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

tube

1шт.

19

J905696

SUPPORT

BRACKET pump

1шт.

25

J907480

NUT

solenoid wire

1шт.

26

J907481

WASHER

solenoid

1шт.

27

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

Male

1шт.

29

J910794

FITTING

delivery valve

4шт.

30

J910795

BY-PASS VALVE

delivery

4шт.

31

J910796

SPRING

delivery valve

4шт.

32

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

special, used as shim

4шт.

40

J902501

STUD

STUD mounting, pump, M8 x 48 mm

3шт.

41

J900589

NUT

hex flange, M8

3шт.

42

J914389

GASKET

mounting, pump

1шт.

43

J920594

PINION

GEAR drive, pump

1шт.

44

J905387

BRACE

fuel pump

1шт.

45

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.
