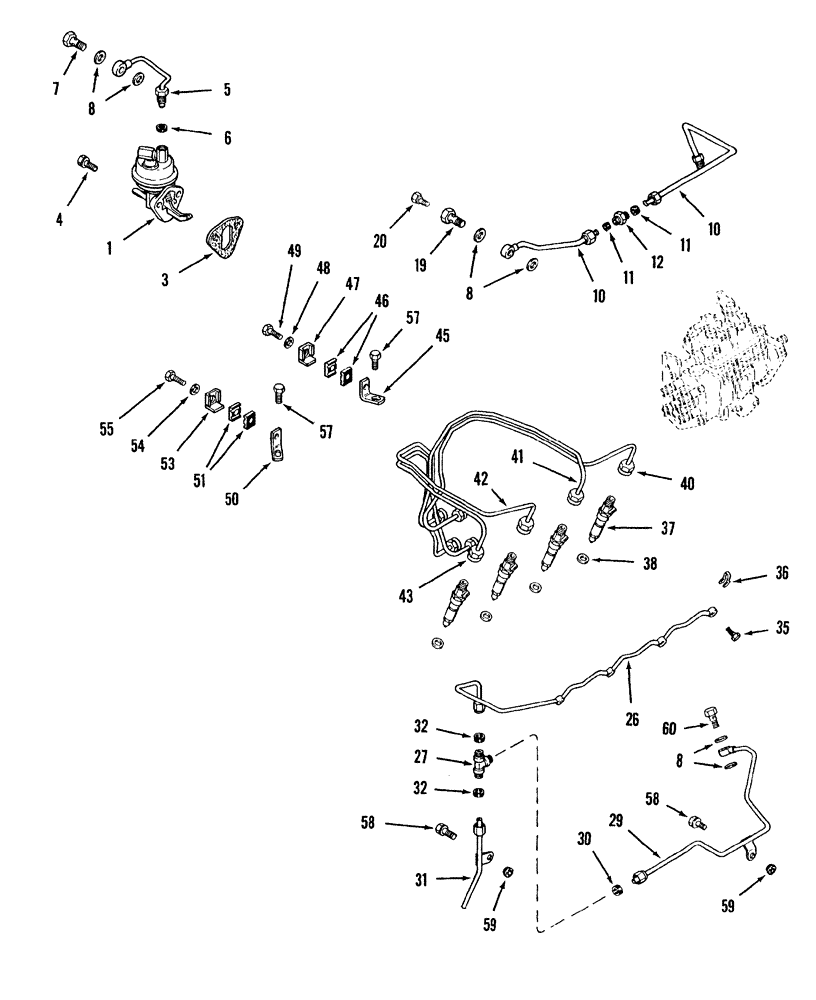

Запчасти Case IH 8840 (10-044) - FUEL INJECTION SYSTEM (DIESEL) (10) - ENGINE

1

J904374

PUMP

ASSEMBLY lift, fuel

1шт.

3

J914304

GASKET

fuel lift pump

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

ASSEMBLY fuel, lift pump to filter

1шт.

6

222-101

SLEEVE,3/16" Tube

for 3/16" Tube

1шт.

7

J903035

BANJO BOLT

hex, M12 x 1.5 x 24 mm

1шт.

8

J918191

PACKING RING

WASHER sealing, 12 x 18 x 1 mm

4шт.

10

J912783

FUEL TUBE,363.9, 84 mm L

ASSEMBLY fuel supply, filter to tee

1шт.

11

222-103

SLEEVE,5/16" Tube

1шт.

12

222-4

FITTING,9/16"-24, Flex Tube

CONNECTOR straight, 5/16" tube

1шт.

J905860

BANJO BOLT

BOLT banjo hex, special

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT connector, banjo hex, special

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW hex, special, vent

1шт.

26

J909695

FUEL TUBE

MANIFOLD ASSEMBLY fuel return

1шт.

27

222-121

TEE,3/16", Flex Tubing

Union

1шт.

222-661

TUBE NUT,3/8"-24, 45 Degree Fl, Comp

Hex, discard before assembly

3шт.

29

J905699

FUEL TUBE,4.76 mm OD

ASSEMBLY fuel return, tee to pump

1шт.

30

222-103

SLEEVE,5/16" Tube

1шт.

31

J905692

FUEL TUBE

ASSEMBLY fuel return, tee to fuel tank

1шт.

32

222-101

SLEEVE,3/16" Tube

for 3/16" Tube

1шт.

35

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

4шт.

36

J903380

SEAL

connector

4шт.

37

REF

INSTRUCTION

INJECTOR ASSEMBLY fuel, 7 mm tip

4шт.

38

J900808

SEAL

injector

4шт.

40

J903480

FUEL TUBE,21 mm ID x 64 mm OD

ASSEMBLY fuel injector, No. 1 cylinder

1шт.

41

J903481

FUEL TUBE,21 mm ID x 64 mm OD

ASSEMBLY fuel injector, No. 2 cylinder

1шт.

42

J903482

FUEL TUBE,21 mm ID x 64 mm OD

ASSEMBLY fuel injector, No. 3 cylinder

1шт.

43

J903483

FUEL TUBE,21 mm ID x 64 mm OD

ASSEMBLY fuel injector, No. 4 cylinder

1шт.

45

J919294

SUPPORT

BRACKET fuel tube

1шт.

46

J917746

CLAMP

ISOLATOR fuel tube

2шт.

47

CURJ904711

CLAMP

PLATE clamp, fuel tube

1шт.

48

J903723

WASHER

lock, M5

1шт.

49

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

50

J919292

SUPPORT

BRACKET fuel tube

1шт.

51

J917746

CLAMP

ISOLATOR fuel tube

2шт.

53

CURJ904711

CLAMP

PLATE clamp, fuel tube

1шт.

54

J903723

WASHER

lock, M5

1шт.

55

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

57

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

hex, special

2шт.

58

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

59

J900267

SEAL

ASSEMBLY cover bolt

2шт.

60

J905465

BANJO BOLT

banjo, connector

1шт.
