Запчасти Case IH 8840 (10-042) - ENGINE GASKET KITS (DIESEL) (10) - ENGINE

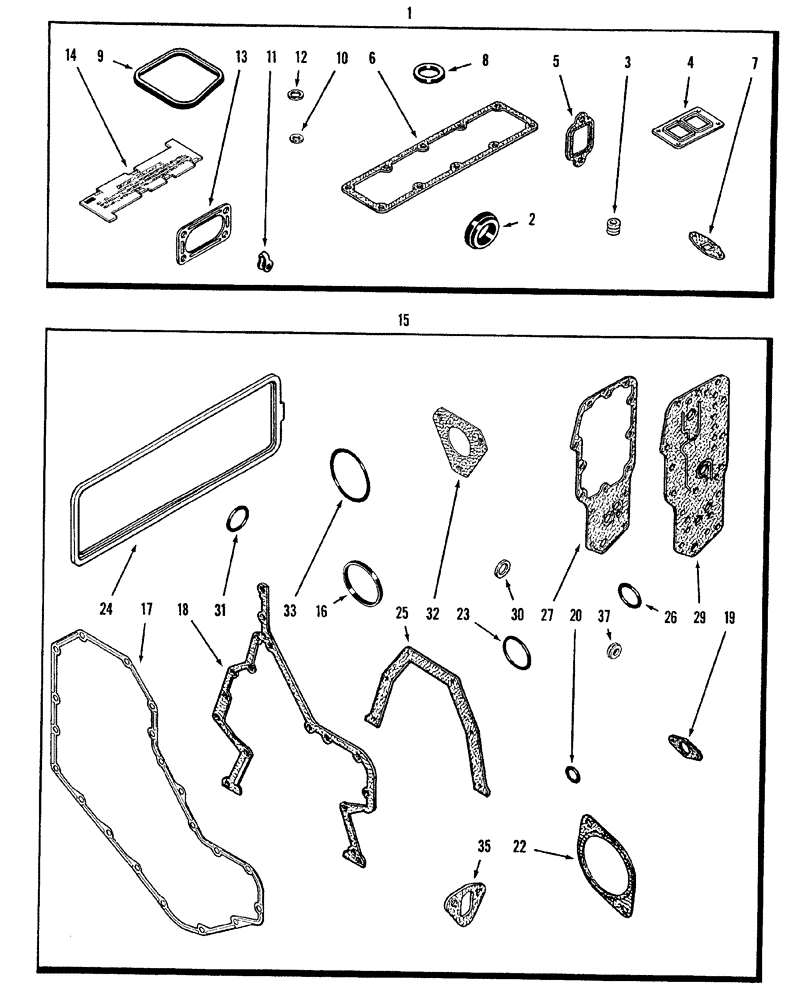

Схема запчастей Case IH 8840 - (10-042) - ENGINE GASKET KITS (DIESEL) (10) - ENGINE
19
8
31
18
26
10
2
7
20
29
30
4
32
37
15
24
33
17
35
1
16
6
11
9
13
14
3
27
12
5
22
23
25

Артикул

Название

Примечание

Количество

1

A77792

GASKET KIT

valve grind, order the required cylinder head gasket when just the valve grind gasket kit is used

1шт.

2

J920020

GASKET

housing, valve grind

1шт.

3

J901097

SEAL

valve, valve grind

8шт.

4

J901356

GASKET,0.5mm Thk

turbocharger to manifold, valve grind

1шт.

5

J905443

MANIFOLD GASKET

exhaust manifold, valve grind

4шт.

6

J914028

GASKET

intake manifold, valve grind

1шт.

7

J914388

GASKET

oil drain tube, valve grind

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap, valve grind

1шт.

9

J902666

GASKET

SEAL rocker cover, valve grind

4шт.

10

J920174

PACKING RING

SEAL injector, 7 mm tip, valve grind

4шт.

11

J903380

SEAL

connector, valve grind

4шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

injector, body, valve grind

1шт.

13

J914856

GASKET,1.02mm Thk

connection, crossover, valve grind

1шт.

14

J823921

GAUGE

cylinder head reused bolt stretch, valve grind

1шт.

15

A77671

GASKET KIT

engine block, for complete engine overhaul, order (1) cylinder block kit, (1) valve grind kit, (1) oil pan kit, front and rear crankshaft seal kit, and required cylinder head gasket, cylinder bock

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

cover, cylinder block

1шт.

17

J914385

GASKET,1.02mm Thk

front cover, cylinder block

1шт.

18

J916131

GASKET

gear housing, cylinder block

1шт.

19

J905595

GASKET

pin housing, cylinder block

1шт.

20

J913994

O-RING

sealing, cylinder block

1шт.

22

J913192

GASKET

cover plate, cylinder block

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Cylinder block

1шт.

24

J904056

GASKET

tappet cover, cylinder block

1шт.

25

J914386

GASKET

seal retainer, cylinder block

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID, cylinder block

1шт.

27

J918256

GASKET

cooler core, oil, cylinder block

1шт.

29

J918257

GASKET

filter head, cylinder block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

seal, plug, cylinder block

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, cylinder block

1шт.

32

J914389

GASKET

fuel pump, cylinder block

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING housing to block, cylinder block

1шт.

35

J914304

GASKET

mounting, lift pump, cylinder block

1шт.

37

J900267

SEAL

ASSEMBLY cover bolt, cylinder block

4шт.

Выбрано товаров: 33
