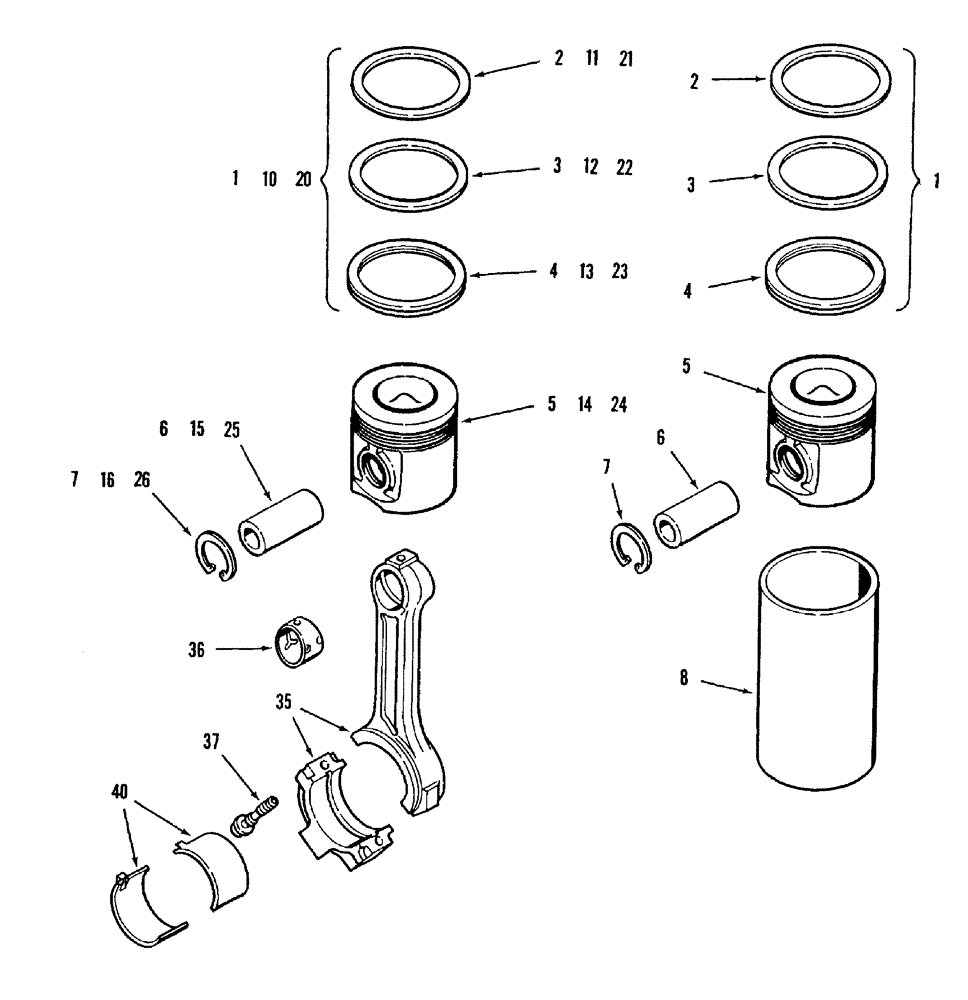

Запчасти Case IH 8840 (10-040) - PISTONS AND CONNECTING RODS (DIESEL) (10) - ENGINE

A77730

PISTON,104MM PISTON DIAMETER

KIT engine, standard

4шт.

1

A77727

PISTON RING SET

KIT standard

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, top, pistons

1шт.

3

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons

1шт.

4

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON engine, standard, stamped 7163

1шт.

6

J901793

PISTON PIN

1шт.

7

J901706

RING

retainer, pin, pistons

2шт.

8

J904166

SLEEVE

LINER piston, use only in engine block repair, when liner is installed use only P/N A77730 piston kit

1шт.

A77731

PISTON & RINGS KIT

KIT engine, 0.5 mm oversize

4шт.

10

A77728

PISTON RING SET

KIT engine, 0.5 mm oversize

1шт.

11

NSS

NOT SOLD SEPARAT

RING compression, top, pistons

1шт.

12

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons

1шт.

13

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON engine, 0.5 mm oversize, stamped 6209

1шт.

15

J901793

PISTON PIN

1шт.

16

J901706

RING

retainer, pin, pistons

2шт.

A77732

PISTON

KIT engine, 1.0 mm oversize

4шт.

20

A77729

PISTON RING SET

KIT engine, 1.0 mm oversize

1шт.

21

NSS

NOT SOLD SEPARAT

Ring compression, top, pistons

1шт.

22

NSS

NOT SOLD SEPARAT

Ring compression, middle, pistons

1шт.

23

NSS

NOT SOLD SEPARAT

Ring oil, bottom, pistons

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON engine, 1.0 mm oversize, stamped 6208

1шт.

25

J901793

PISTON PIN

1шт.

26

J901706

RING

retainer, pin, pistons

2шт.

35

J901569

ROD, CONNECTING

ASSEMBLY new

4шт.

35

JR901569

ROD

Assembly connecting, remanufactured

4шт.

35

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod Return Number, use this number to return connecting rod for credit

4шт.

35

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

35

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

35

84145405R

REMAN-CONNECTING ROD

8840, Reman For New PN J901569

4шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

36

NSS

NOT SOLD SEPARAT

BUSHING rod to piston pin, order J901569, connecting rods

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex, special, MJ11 x 1 x 26 mm, connecting rods

2шт.

40

87425525

CRANKSHAFT BEARING

KIT set, upper and lower, standard

4шт.

A77466

BEARING SET

KIT set, upper and lower, 0.25 mm oversize

4шт.

A77467

BEARING LINER

KIT set, upper and lower, 0.5 mm oversize

4шт.

A77468

BEARING SET

KIT set, upper and lower, 0.75 mm oversize

4шт.

A77469

BEARING SET

KIT set, upper and lower, 1.0 mm oversize

4шт.
