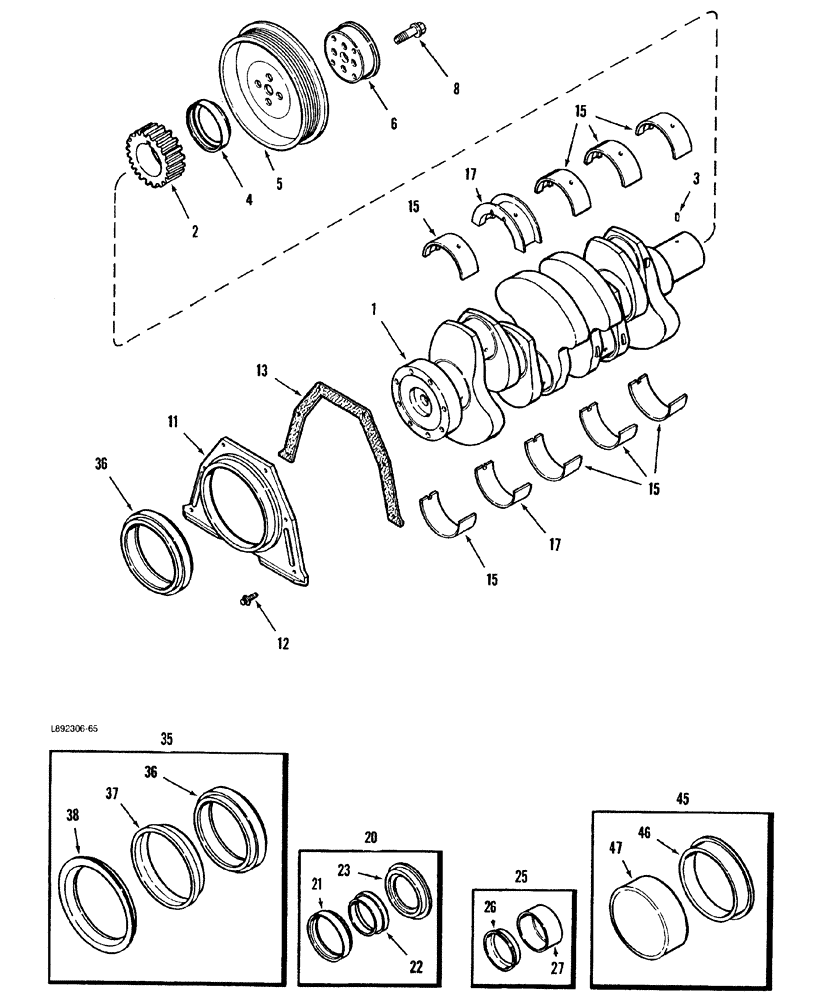

Запчасти Case IH 8840 (10-036) - CRANKSHAFT (DIESEL) (10) - ENGINE

JR918323

CRANKSHAFT

remanufactured, North America only

1шт.

J929036R

REMAN-CRANKSHAFT

8840, Reman For New P/N JR918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

RETURN NUMBER, use this part number to return crankshaft for credit

1шт.

1

J918323

CRANKSHAFT

ASSEMBLY engine, new

1шт.

J929036R

REMAN-CRANKSHAFT

8840, Reman for New P/N J918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J919681

PINION

GEAR crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order Ref. 20

1шт.

5

J914494

PULLEY,181.25mm OD

crankshaft

1шт.

6

J905820

ADAPTER

FLANGE adapter, pulley

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange head, M12 x 36 mm

4шт.

11

J921043

REAR COVER

RETAINER seal

1шт.

12

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Heavy

6шт.

13

J914386

GASKET

seal retainer

1шт.

15

A77405

CRANKSHAFT BEARING

KIT main, set, upper and lower, standard

4шт.

A77472

BEARING SET

KIT main, set, upper and lower, 0.25 mm oversize

4шт.

A77474

BEARING SET

KIT main, set, upper and lower, 0.5 mm oversize

4шт.

A77476

BEARING SET

KIT main, set, upper and lower, 0.75 mm oversize

4шт.

A77478

BEARING SET

KIT main, set, upper and lower, 1.0 mm oversize

4шт.

17

A77406

CRANKSHAFT BEARING

KIT thrust, main, set, upper and lower, standard

1шт.

A77473

THRUST BEARING

KIT main, set, upper and lower, 0.25 mm oversize

1шт.

A77475

THRUST BEARING

KIT main, set, upper and lower, 0.5 mm oversize

1шт.

A77477

THRUST BEARING

KIT main, set, upper and lower, 0.75 mm oversize

1шт.

A77479

THRUST BEARING

KIT main, set, upper and lower, 1.0 mm oversize

1шт.

20

J904353

GASKET KIT

seal, oil, crankshaft front

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

25

J906080

PACKAGE, REPAIR

KIT wear sleeve, crankshaft front

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

35

J909410

GASKET KIT

seal, oil, crankshaft rear

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

38

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

45

J906081

SLEEVE

KIT wear, crankshaft rear

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

47

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.
