(10-034) - CYLINDER BLOCK AND ENGINE BLOCK HEATER (DIESEL)

Запчасти Case IH 8840 (10-034) - CYLINDER BLOCK AND ENGINE BLOCK HEATER (DIESEL) (10) - ENGINE

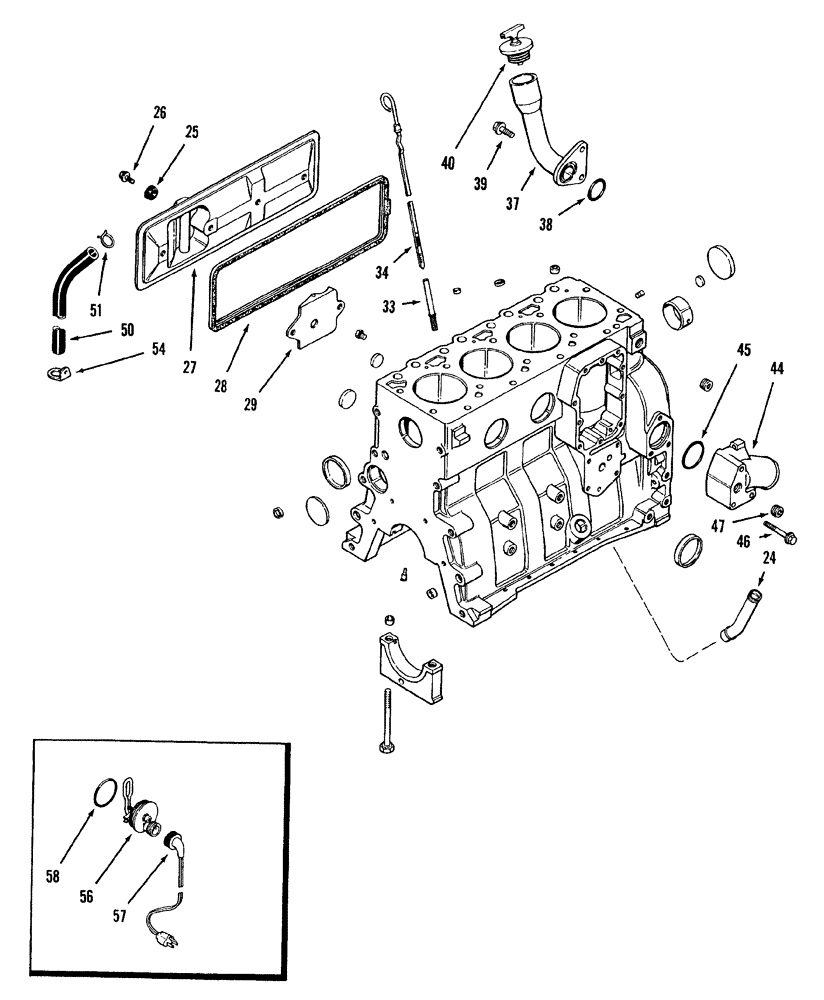

Схема запчастей Case IH 8840 - (10-034) - CYLINDER BLOCK AND ENGINE BLOCK HEATER (DIESEL) (10) - ENGINE
44
27
26
46
51
38
45
33
37
50
28
29
40
34
54
25
56
57
47
58
24
39
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

24

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE drain, oil

1шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

25

J900267

SEAL

ASSEMBLY cover bolt

4шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

26

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

27

J916441

COVER

tappet

1шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

28

J904056

GASKET

tappet cover

1шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

29

J907586

BAFFLE

tappet cover

1шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

33

J905425

TUBE,9.52 mm OD x 93 mm L

dipstick, oil

1шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

34

J904294

DIPSTICK

oil level gauge

1шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

37

J905440

TUBE

oil fill

1шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

38

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm ID

1шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

39

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

40

A77424

FILLER CAP

CAP ASSEMBLY fill, oil

1шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

44

J903102

CONNECTION

water inlet

1шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID

1шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

46

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

47

A77429

PLUG

hex socket pipe, 1/2" PT

2шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

50

J906593

HOSE

Breather

1шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

51

J904230

CLAMP,25.4mm

spring, hose

1шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

54

J909670

CLIP

retaining

1шт.

Engine S/N 44559664 and After, 4-390 engine

1шт.

A77634

KIT

heater, engine block

1шт.

56

J916127

RESISTOR

HEATER engine block, order kit A77634

1шт.

57

J905113

CABLE

heater, engine block

1шт.

58

J910517

O-RING

sealing, heater, engine block

1шт.
