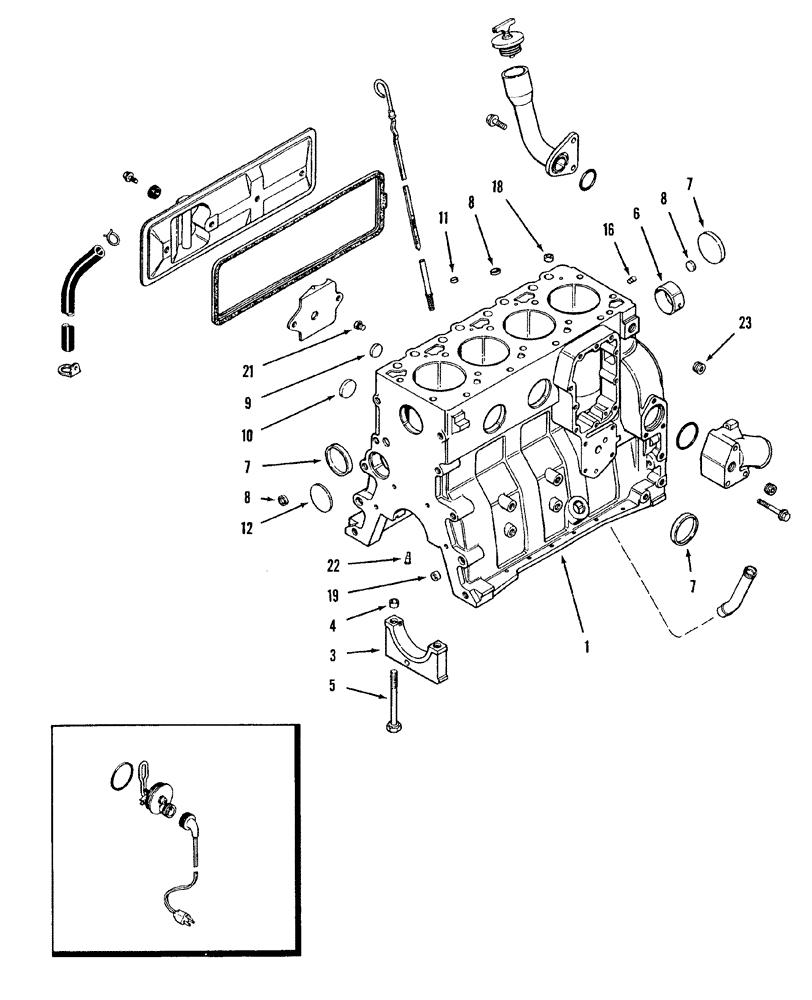

Запчасти Case IH 8840 (10-031) - CYLINDER BLOCK (DIESEL) (10) - ENGINE

1989101C2

ENGINE ASSEMBLY

ENGINE ASSY 4T-390 standard, complete, new, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe

1шт.

1989092C3R

REMAN-BASIC ENGINE

Reman Basic Engine, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler

1шт.

1989092C3C

CORE-BASIC ENGINE

Return Number

1шт.

1989092C2

BASIC ENGINE

ASSY. new, includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel & housing, oil fill & dipstick, fuel injection pump, injectors & lines, front crank pulley, belt tensioner, turbocharger

1шт.

A77759

SKELETON ENGINE

BLOCK ASSEMBLY short, new, includes stripped block, pistons, connecting rods and bearings and crankshaft and bearings, order short block and P/N J920399 hardware kit

1шт.

JR933236

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933236

CORE-SHORT ENGINE

Return Part Number

1шт.

1

A77757

CRANKCASE

BLOCK ASSEMBLY stripped, engine, order short block and P/N J920399 hardware kit

1шт.

3

J900967

BEARING CAP

CAP main

5шт.

4

J900068

BEARING WASHER

RING dowel, 18 mm OD

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

bearing cap, special

10шт.

6

REF

INSTRUCTION

BUSHING camshaft front

1шт.

7

A77782

PLUG

expansion

4шт.

8

J900956

PLUG

expansion, 18 mm OD

3шт.

9

A77539

PLUG

expansion, 26 mm

2шт.

PJ920399

SHIN

KIT block hardware

1шт.

10

J900958

PLUG

expansion, 32 mm OD

2шт.

11

J900955

PLUG

expansion, 10 mm OD

1шт.

12

J900687

PLUG

expansion, welch, 60 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long

2шт.

18

J902343

DOWEL

RING, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

hex socket pipe, 1/8"-27 PT

2шт.

22

J919002

NOZZLE CAP

piston cooling

4шт.

23

A77429

PLUG

hex socket pipe, 1/4"-18 PT

1шт.
