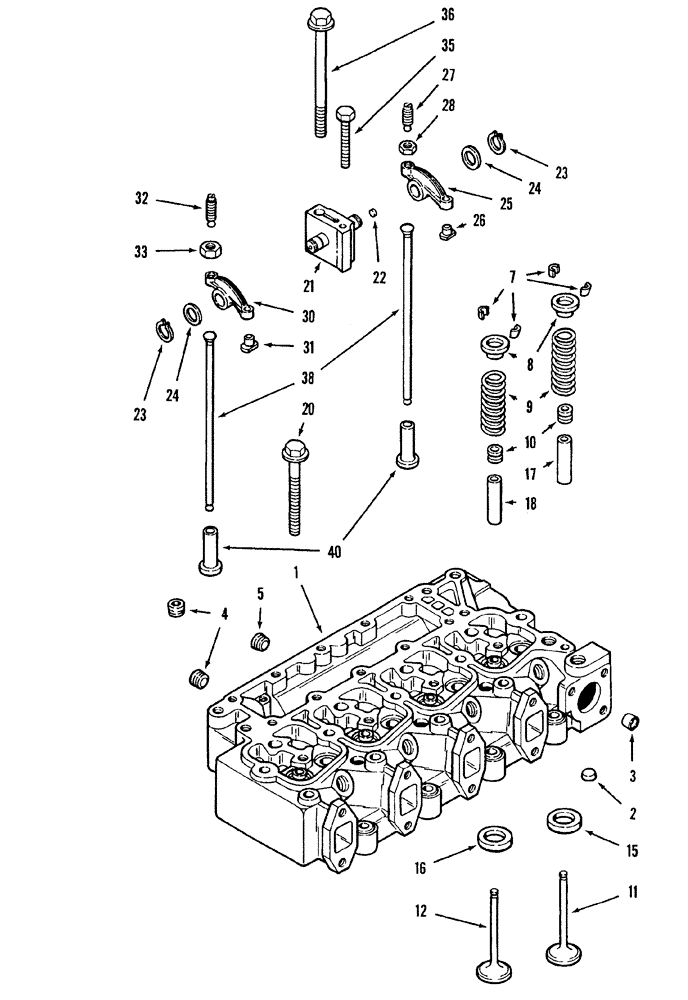

Запчасти Case IH 8840 (10-024) - VALVE MECHANISM (DIESEL) (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
J920611
HEAD (CYLINDER)
ASSEMBLY new, with valves, use with fuel injection nozzles with 7 mm diameter tip
1шт.
1
J920005
HEAD (CYLINDER)
ASSEMBLY, without valves, use with fuel injection nozzles with 7 mm diameter tip
1шт.
2
J902606
PLUG
expansion, 21 mm OD
3шт.
3
J909403
BUSHING
SLEEVE cylinder head
1шт.
4
A77429
PLUG
hex socket pipe, 1/4"-18 PT
5шт.
5
J906619
PLUG,1/8" - 27
hex socket pipe, 1/8"-27 PT
2шт.
7
J900250
SCREW
KEEPER valve
16шт.
8
J900299
RETAINER
valve spring
8шт.
9
J900276
VALVE SPRING
8шт.
10
J901097
SEAL
valve
8шт.
11
J920867
VALVE
intake
4шт.
12
J920868
VALVE
exhaust
4шт.
15
J906854
SEAT, VALVE
insert, intake, service repair only
4шт.
16
J904105
SEAT, VALVE
insert, exhaust, service repair only
4шт.
17
J904408
GUIDE
valve, intake, service repair only
4шт.
18
J904409
GUIDE
valve, exhaust, service repair only
4шт.
20
J903938
BOLT
BOLT hex flange head, M12 x 1.75 x 70 mm
4шт.
20
J903939
BOLT
BOLT hex flange head, M12 x 1.75 x 120 mm
10шт.
21
J910814
SUPPORT
SHAFT ASSEMBLY rocker arm
4шт.
22
J907555
PLUG
1шт.
23
J900242
SNAP RING
retaining, rocker arm
8шт.
24
J900245
WASHER
thrust, rocker arm
8шт.
25
J910811
ROCKER
ARM ASSEMBLY intake
4шт.
26
NSS
NOT SOLD SEPARAT
INSERT rocker arm
1шт.
27
J937438
ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point
slotted set adjusting, 3/8" NF x 40 mm
1шт.
28
25-116
NUT,Hex, 3/8"-24, G5
jam
2шт.
30
J910810
ROCKER
ARM ASSEMBLY exhaust
4шт.
31
NSS
NOT SOLD SEPARAT
INSERT rocker arm
1шт.
32
J937438
ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point
slotted set adjusting, 3/8" NF x 40 mm
1шт.
33
25-116
NUT,Hex, 3/8"-24, G5
jam
1шт.
35
813-8075
BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8
4шт.
36
J903940
BOLT
BOLT hex flange head, M12 x 1.75 x 180 mm
4шт.
38
J904679
PUSH ROD
rocker arm
8шт.
40
J907240
TAPPET
valve, push rod
8шт.
Выбрано товаров: 35
