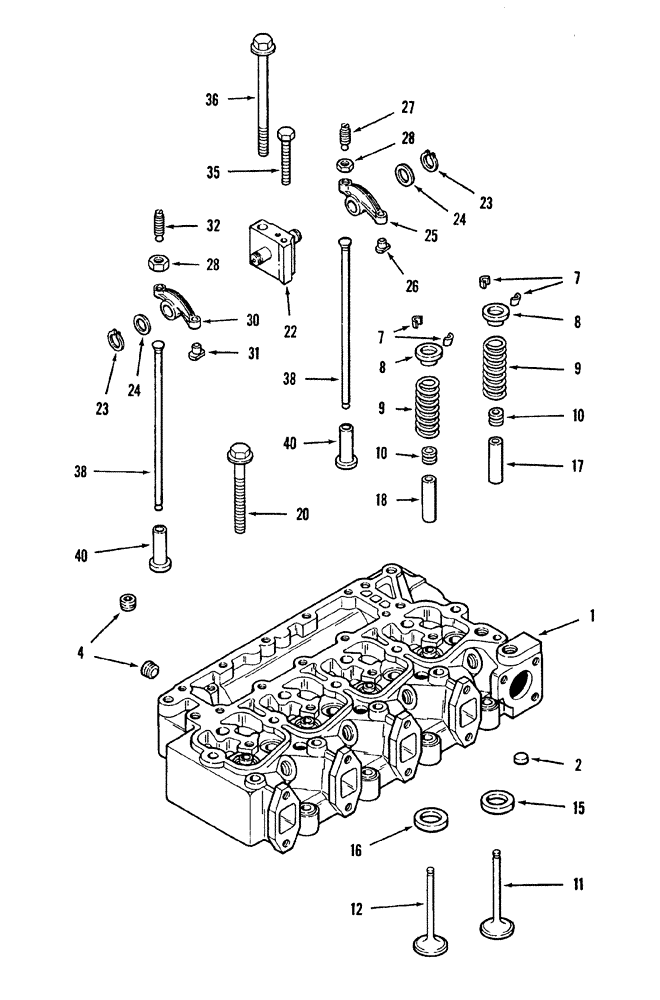

Запчасти Case IH 8840 (10-022) - VALVE MECHANISM (DIESEL) (10) - ENGINE

JR910275

HEAD (CYLINDER)

remanufactured, North America only

1шт.

JC910275

CORE-CYLINDER HEAD

RETURN NUMBER, use this number to return cylinder head core for credit.

1шт.

1

J910275

HEAD (CYLINDER)

ASSEMBLY new, with valves

1шт.

J913389

HEAD (CYLINDER)

ASSEMBLY, without valves

1шт.

2

J902606

PLUG

expansion, 21 mm OD

3шт.

4

A77429

PLUG

hex socket pipe, 1/4"-18 PT

5шт.

7

CASJ900250

RETAINER

KEEPER valve

16шт.

8

J900299

RETAINER

valve spring

8шт.

9

J900276

VALVE SPRING

8шт.

10

J901097

SEAL

valve

8шт.

11

J920867

VALVE

intake

4шт.

12

J920868

VALVE

exhaust

4шт.

15

J906854

SEAT, VALVE

insert, intake, service repair only

4шт.

16

J904105

SEAT, VALVE

insert, exhaust, service repair only

4шт.

17

J904408

GUIDE

valve, intake, service repair only

4шт.

18

J904409

GUIDE

valve, exhaust, service repair only

4шт.

J906206

GUIDE

valve, exhaust, service repair only

4шт.

20

J903938

BOLT

BOLT hex flange head, M12 x 1.75 x 70 mm

4шт.

20

J903939

BOLT

BOLT hex flange head, M12 x 1.75 x 120 mm

10шт.

21

J910814

SUPPORT

SHAFT ASSEMBLY rocker arm

4шт.

22

J907555

PLUG

1шт.

23

J900242

SNAP RING

retaining, rocker arm

8шт.

24

J900245

WASHER

thrust, rocker arm

8шт.

25

J910811

ROCKER

ARM ASSEMBLY intake

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set adjusting, 3/8" NF x 40 mm

1шт.

28

129-123

NUT,3/8"-24, G5

2шт.

30

J910810

ROCKER

ARM ASSEMBLY exhaust

4шт.

31

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

32

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set adjusting, 3/8" NF x 40 mm

1шт.

35

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

36

J903940

BOLT

BOLT hex flange head, M12 x 1.75 x 180 mm

4шт.

38

J904679

PUSH ROD

rocker arm

8шт.

40

J907240

TAPPET

valve, push rod

8шт.
