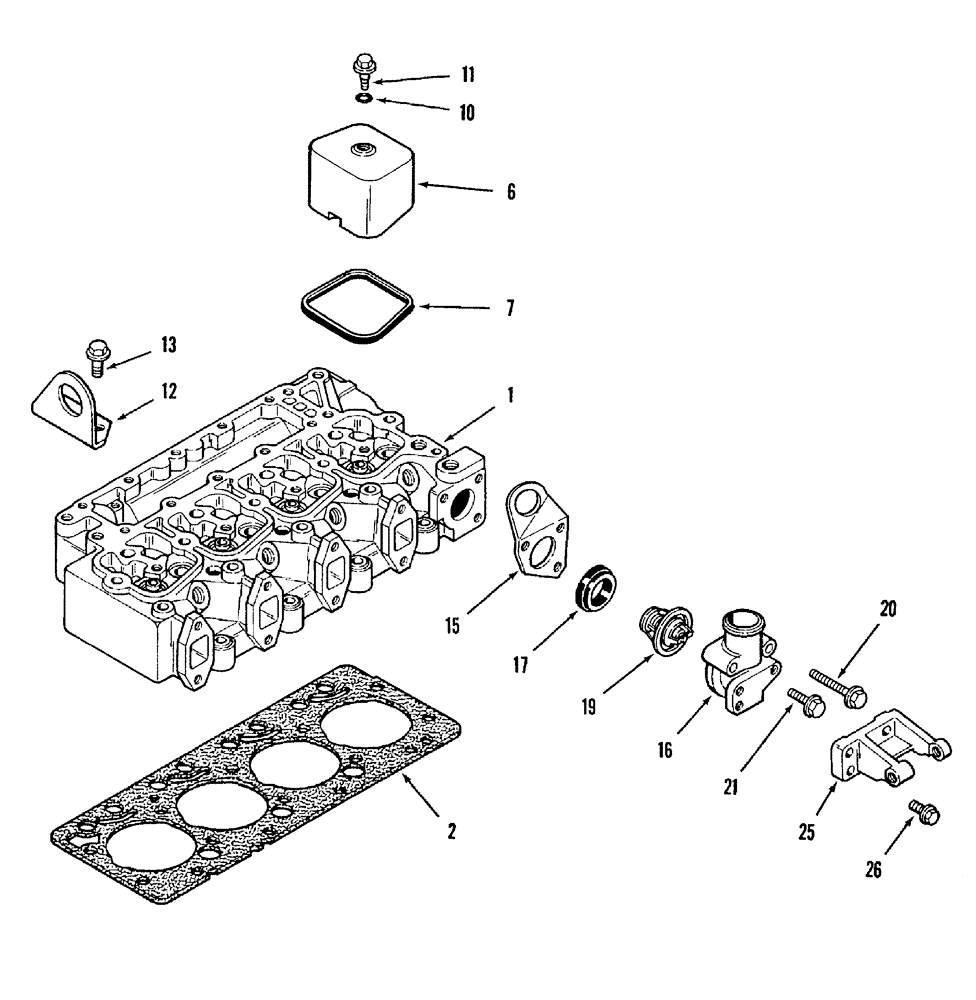

Запчасти Case IH 8840 (10-020) - CYLINDER HEAD AND COVERS, THERMOSTAT AND HOUSING (DIESEL) (10) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, engine, covers

1шт.

2

J921393

GASKET

cylinder head, standard, covers

1шт.

J921395

CYLINDER HEAD GASKET

cylinder head, 0.25 mm thicker, 2 notches, covers

1шт.

J921397

GASKET

cylinder head, 0.50 mm thicker, 3 notches, covers

1шт.

6

J902604

COVER

rocker, cylinder head

1шт.

7

J902666

GASKET

SEAL rocker cover, cylinder head

4шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt, cylinder head

4шт.

11

J907049

BOLT,Hex

special, 8M x 1.25 x 21.25 mm, cylinder head and covers

4шт.

12

J908118

BRACKET

lifting, rear, cylinder head and covers

1шт.

13

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Cylinder head and covers

2шт.

15

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

16

J914409

HOUSING

thermostat

1шт.

17

J920020

GASKET

housing, thermostat

1шт.

19

NSS

NOT SOLD SEPARAT

THERMOSTAT water, 95° C, order kit A77736, housing

1шт.

20

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

Thermostat and housing

2шт.

21

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Thermostat and housing

1шт.

25

J910713

SUPPORT

alternator mounting, thermostat and housing

1шт.

26

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

BOLT - hex flange head, 8 - 1.25 x 25 mm, Thermostat and housing

3шт.
