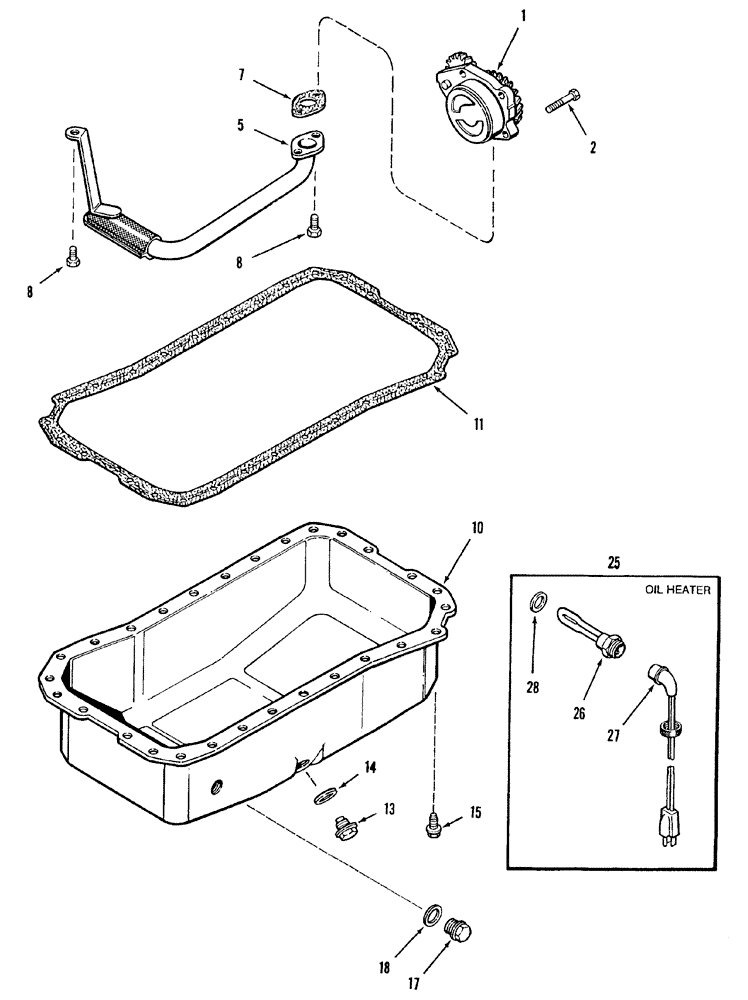

Запчасти Case IH 8840 (10-018) - OIL PUMP AND OIL PAN, ENGINE OIL HEATER (DIESEL) (10) - ENGINE

1

J918211

PUMP, ENGINE OIL

ASSEMBLY, oil pan

1шт.

JR918211

REMAN-ENG OIL PUMP

PUMP oil, remanufactured, North America only, oil pan

1шт.

JC918211

CORE-HYDRAULIC PUMP

RETURN NUMBER, use this part number to return pump core for credit, oil pump and oil pan

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

613-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT hex, 8 mm - 1.25 x 30 mm, oil pump and oil pan

4шт.

5

J905223

TUBE

suction, oil pump and oil pan

1шт.

7

J914383

GASKET

suction tube, oil pump and oil pan

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

Oil pump and oil pan

3шт.

10

J907570

PAN

oil, engine, oil pump

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET oil pan, oil pump

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

13

J911638

PLUG,M18 x 1.5

drain, magnetic, oil pump and oil pan

1шт.

14

J900216

PACKING RING

WASHER seal, drain plug, oil pump and oil pan

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

15

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

Oil pump and oil pan

28шт.

17

J904386

PLUG

pipe, oil pump and oil pan

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

seal, plug, oil pump and oil pan

1шт.

A77673

GASKET KIT

oil pan, Includes: Ref. 7, 11 and 14, oil pump

1шт.

25

A77490

KIT

heater, engine oil

1шт.

26

NSS

NOT SOLD SEPARAT

ELEMENT heater, 12 Volt , order P/N A77490, engine oil

1шт.

27

J905113

CABLE

electric, heater, engine oil

1шт.

28

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

seal, if equipped, engine oil heater

1шт.
