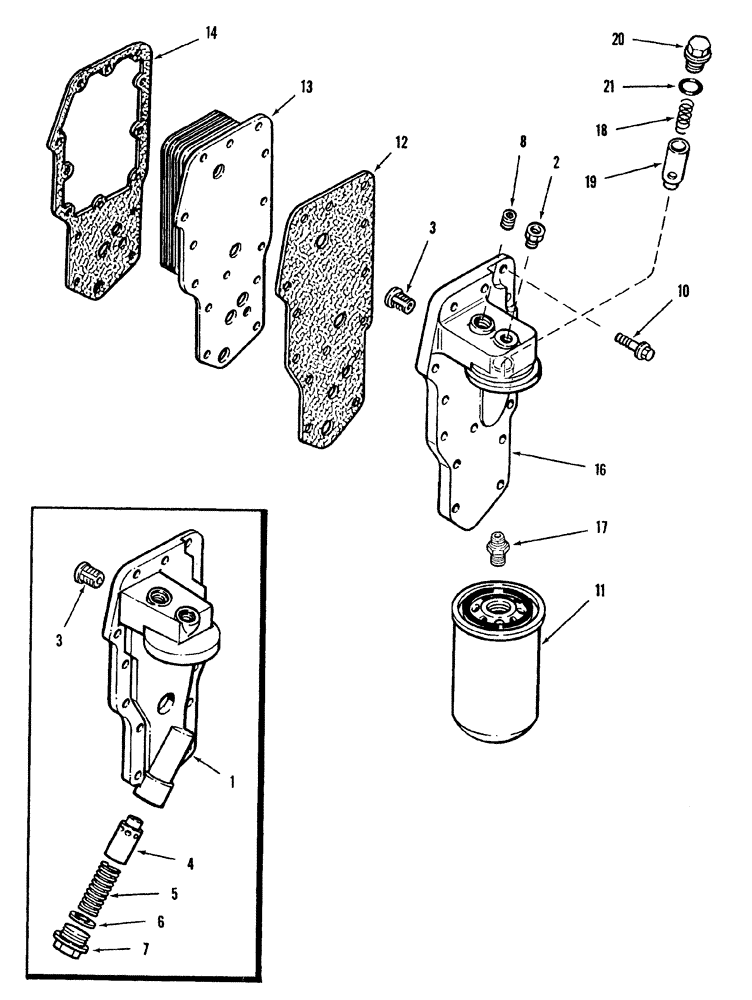

Запчасти Case IH 8840 (10-016) - OIL FILTER AND COOLER (DIESEL) (10) - ENGINE

1

J902295

HEAD ASSY.

filter and cooler, for repairs order P/N J918954

1шт.

2

J906619

PLUG,1/8" - 27

hex socket pipe, 1/8"-27 PT

1шт.

3

J902338

VALVE, PRESSURE RELI

EF

1шт.

4

J909376

PLUNGER

regulator, pressure, used with Ref. 1 P/N J902295, order P/N A77764

1шт.

5

J903261

SPRING

compression, used with Ref. 1 P/N J902295, order P/N A77764

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

seal, used with Ref. 1 P/N J902295

1шт.

7

J904386

PLUG

hex flange, used with Ref. 1 P/N J902295

1шт.

8

A77428

PLUG

hex socket pipe, 1/4"-18 PT

1шт.

10

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

11

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

oil

1шт.

12

J918257

GASKET

filter head, Replaces: P/N J912532

1шт.

13

J921557

COOLER

engine oil, Replaces: P/N J904320

1шт.

14

J918256

GASKET

cooler core, oil, Replaces: P/N J914387

1шт.

J918954

HEAD

ASSEMBLY lube oil filter, Replaces: P/N J915243

1шт.

16

J918328

HEAD

filter and cooler, order P/N J918954

1шт.

17

J909355

ADAPTER

filter head

1шт.

A77764

PACKAGE

KIT regulator, oil pressure

1шт.

18

J918427

SPRING

compression

1шт.

19

J918428

PLUNGER

regulator, pressure

1шт.

20

J915787

PLUG

pipe

1шт.

21

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

sealing

1шт.
