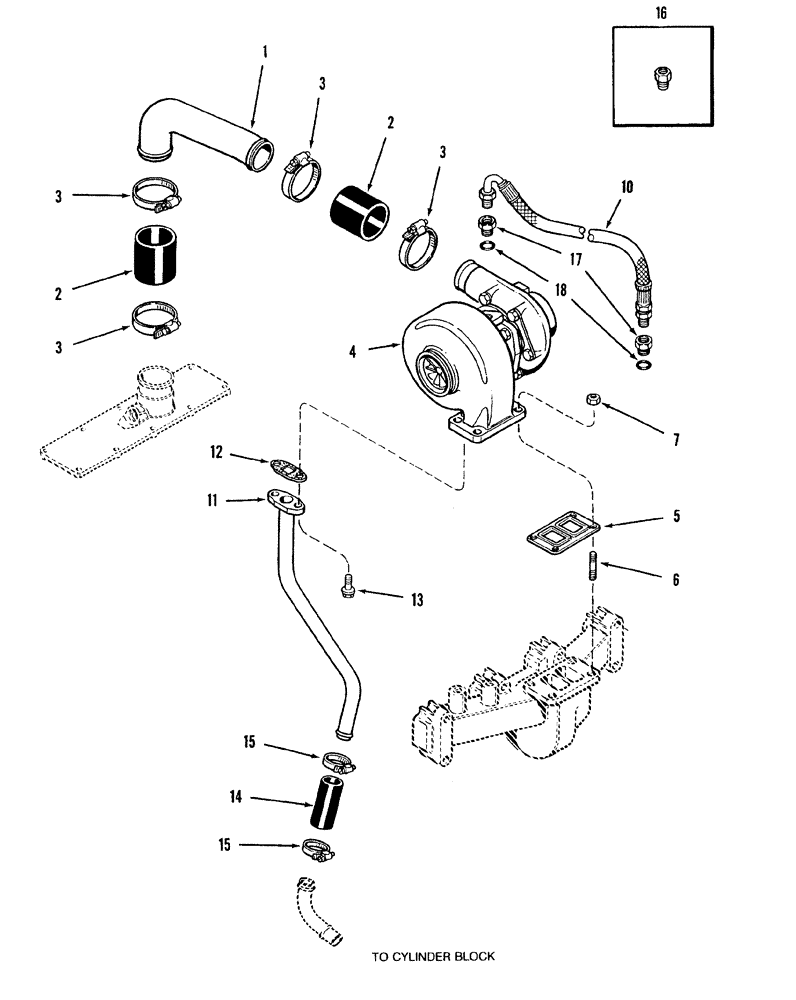

Запчасти Case IH 8840 (10-012) - TURBOCHARGER SYSTEM (10) - ENGINE

1

J906624

TUBE,2 mm OD x 265.1 mm L

TUBE crossover

1шт.

2

J916166

INTAKE AIR HOSE

air intake

2шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

4

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY engine

1шт.

5

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

6

J905417

STUD

STUD mounting, turbocharger

4шт.

7

J901961

NUT

hex, stud

4шт.

10

J909545

HOSE

Oil Supply, Turbocharger

1шт.

11

J903741

TUBE

oil drain, turbocharger

1шт.

12

J914388

GASKET

drain tube

1шт.

13

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

14

J903745

LARGE HOSE

HOSE,LARGE oil drain, turbocharger

1шт.

15

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

16

A77457

FITTING

CONNECTOR supply hose, if equipped

1шт.

17

J919687

HYD CONNECTOR

ASSEMBLY female

2шт.

18

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

12шт.
