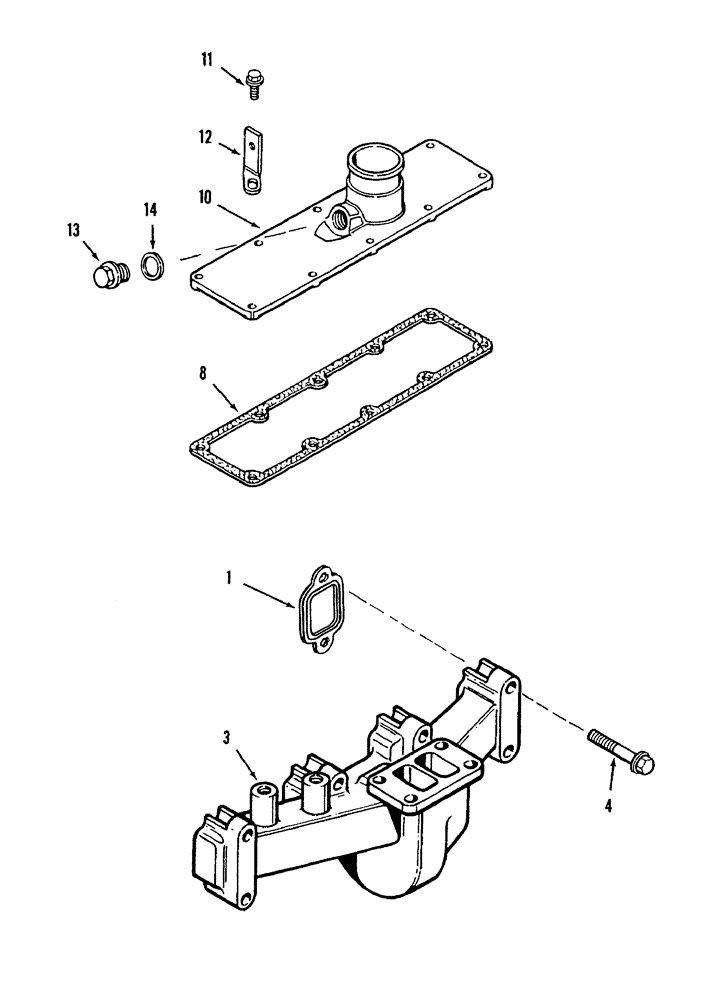

Запчасти Case IH 8840 (10-010) - MANIFOLDS (DIESEL) (10) - ENGINE

1

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

3

J901635

MANIFOLD

exhaust

1шт.

4

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

Exhaust manifold

8шт.

8

J914028

GASKET

intake manifold

1шт.

NSS

NOT SOLD SEPARAT

MANIFOLD intake, order A77415 kit

1шт.

11

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold Hex Flg Hd, M8 x 1.25 x 25

10шт.

12

NSS

NOT SOLD SEPARAT

BRACE fuel tube, intake manifold

1шт.

13

J907185

PLUG

ASSEMBLY intake manifold

1шт.

Part of Intake Manifold Kit, P/N A77416.

1шт.

14

J906773

WASHER

plug sealing, intake manifold

1шт.

Part of Intake Manifold Kit, P/N A77416.

1шт.

A77416

COVER

KIT intake manifold, Includes: Ref. 9, 13 and 14

1шт.
