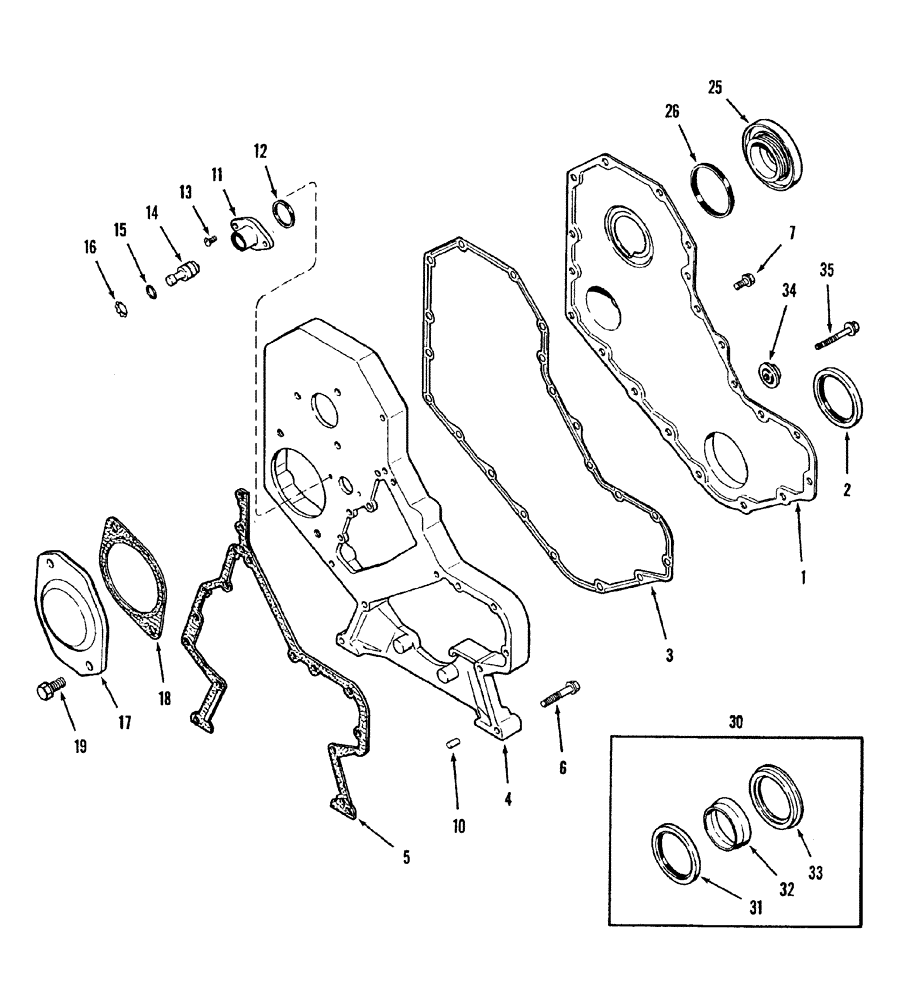

Запчасти Case IH 8840 (10-008) - FRONT GEAR COVER (DIESEL) (10) - ENGINE

1

J903794

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order Ref. 30

1шт.

3

J914385

GASKET,1.02mm Thk

front cover

1шт.

4

J920758

HOUSING

timing gear

1шт.

5

J916131

GASKET

gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

11шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

16шт.

10

J900257

PIN,10.01mm OD x 16mm L

dowel, locating

2шт.

11

J919683

HOUSING

timing pin

1шт.

12

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Rectangular

1шт.

13

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

14

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

15

J913994

O-RING

sealing

1шт.

16

J904849

SNAP RING,0.875", Int, #87

Timing pin

1шт.

17

J914868

COVER

PLATE accessory drive

1шт.

18

J919601

GASKET

cover plate

1шт.

19

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

25

J903463

PLUG,M63 x 5

drive hole, tachometer

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

cover

1шт.

30

J904353

GASKET KIT

seal, oil, crankshaft front

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

34

J912772

RETAINER

bolt

1шт.

35

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.
