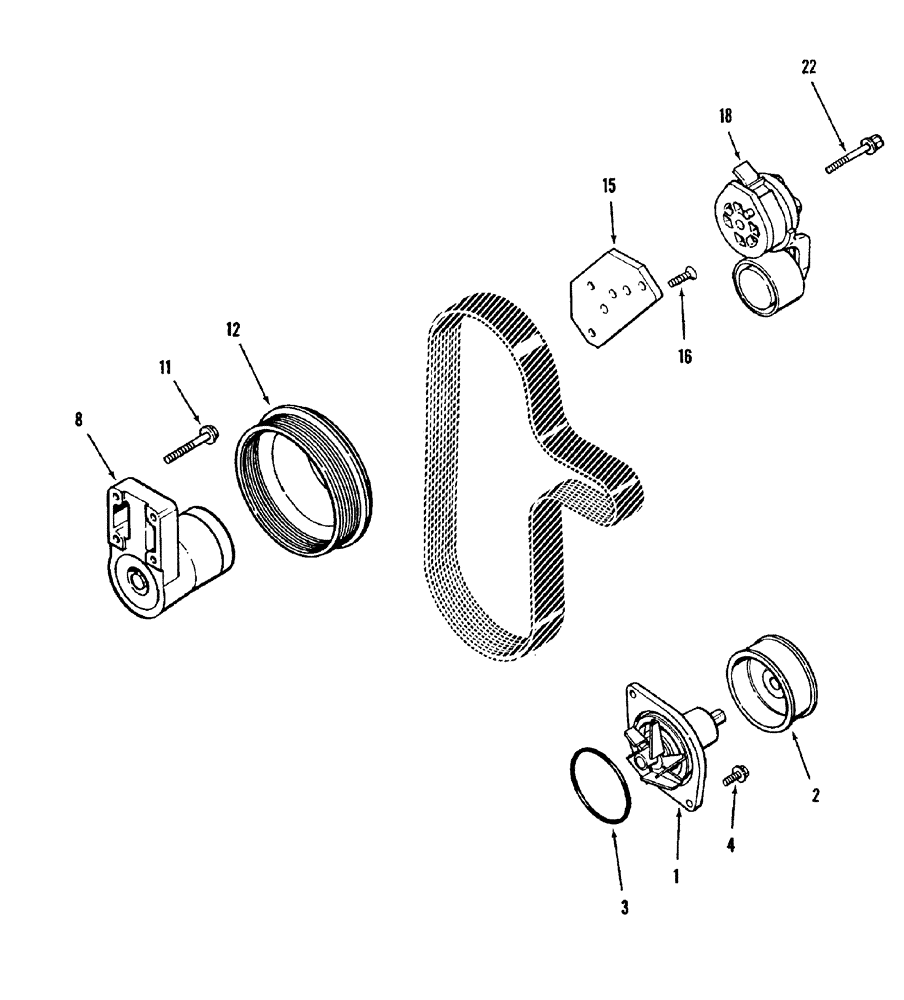

Запчасти Case IH 8840 (10-006) - WATER PUMP SYSTEM (DIESEL) (10) - ENGINE

AR77703

PUMP

water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

8840

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77703

CORE-WATER PUMP

RETURN NUMBER, use this part number to return pump core for credit.

1шт.

A77703

PUMP, WATER

KIT

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

8840, Replaces P/N A77703 & AR77703

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY water, order P/N A77703

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump, order P/N A77703

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J913433

BRACKET

ASSEMBLY fan

1шт.

11

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

12

J914462

PULLEY,163mm OD

fan

1шт.

15

J919985

SUPPORT

BRACKET belt tension

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Cap, Flat head

2шт.

18

J914086

BELT TENSIONER

ASSEMBLY belt

1шт.

22

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

BOLT - hex flange, 10 - 1.5 x 70 mm, grade 10.9

1шт.
