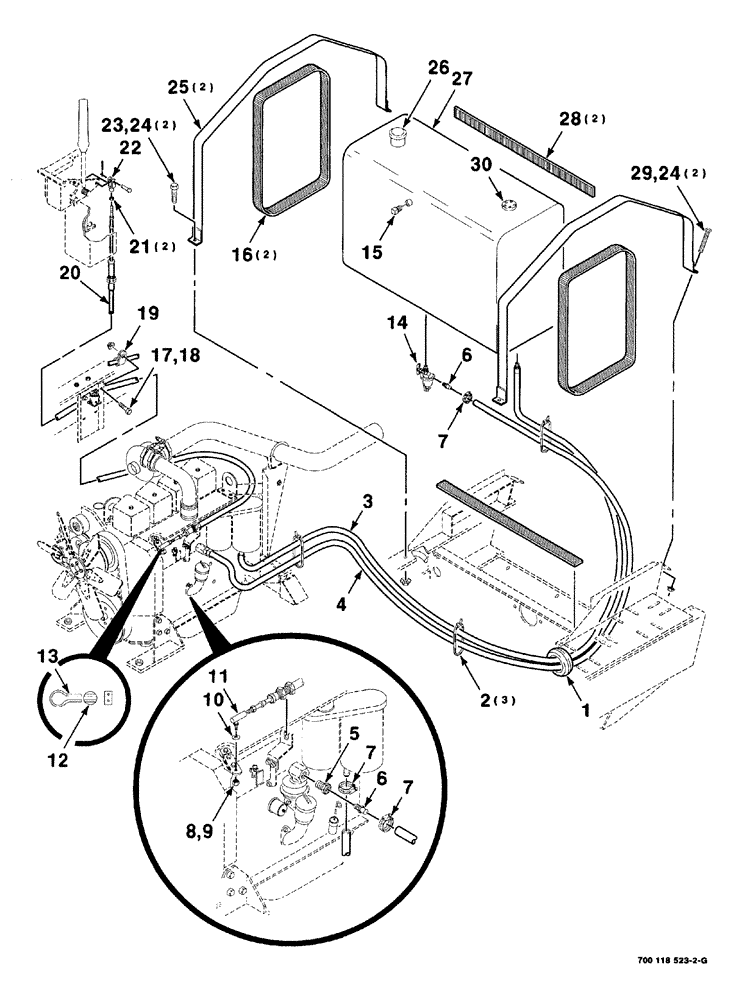

Запчасти Case IH 8840 (03-006) - FUEL TANK ASSEMBLY (10) - ENGINE

1

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE cable

3шт.

3

700708559

FUEL HOSE,4.76 mm ID x 1600.00 mm, SAE 30R2 Type1

1шт.

4

700115723

FUEL HOSE,0.31" ID x 88.58", SAE 30R9

Fuel

1шт.

5

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing

1шт.

6

7746662

INSERT

END hose, fuel

2шт.

7

7721020

HOSE CLAMP

3шт.

8

492-11025

LOCK WASHER,1/4"

1шт.

9

425-114

NUT,1/4"-28, G5

1шт.

10

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4"

1шт.

11

A76747

BALL JOINT,#10 -32 x 7/8" L

ASSEMBLY bail

1шт.

12

8041014

LEAD SEAL

SEAL lead

1шт.

13

7721434

RETAINING WIRE

WIRE seal

1шт.

14

A30049

STRAINER ELEMENT

fuel, see Figure 03-008

1шт.

15

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

Pipe

1шт.

16

844480

FELT

liner

2шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

19

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

20

700708549

CABLE

throttle

1шт.

21

225-14210

NUT,#10-32

2шт.

22

356174C91

FORK

CLEVIS

1шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

24

231-5146

FLANGE NUT,3/8"-16

4шт.

25

700115716

SECURING STRAP

fuel tank

2шт.

26

700708089

CAP

fuel, tank

1шт.

Part of Fuel Tank, Ref. 27, P/N 700707015.

1шт.

27

700707015

TANK

fuel, Includes: Ref. 26 and 30

1шт.

28

844498

FELT

liner

2шт.

29

113-210

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

30

700707298

SENDER UNIT

see Figure 03-010

1шт.

Part of Fuel Tank, Ref. 27, P/N 700707015.

1шт.
