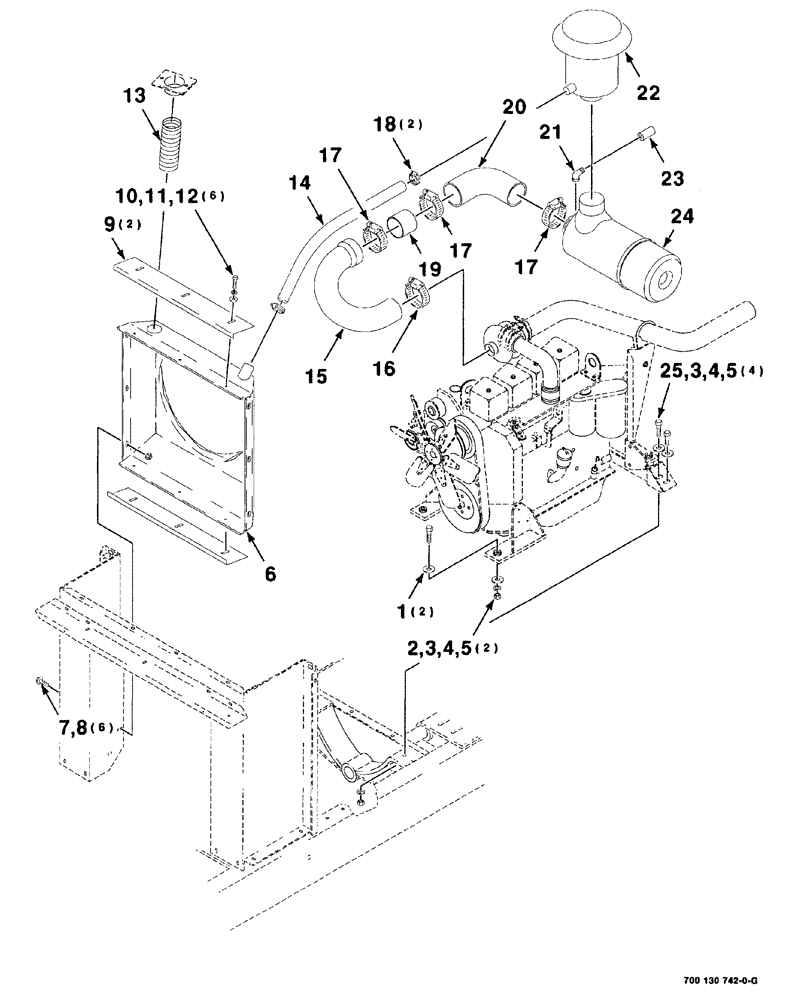

Запчасти Case IH 8840 (03-002) - AIR BREATHER AND EXHAUST ASSEMBLY (10) - ENGINE

1

457432

WASHER

special

2шт.

2

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW cap, hex, 1/2"-13 x 2-3/4"

2шт.

3

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

6шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

5

425-108

NUT,1/2" - 13, Gr 5

6шт.

6

700117864

SHROUD

WA fan

1шт.

7

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

9

700115722

PLATE

shield

2шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

11

492-11031

LOCK WASHER,5/16"

6шт.

12

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

13

700709868

HOSE

air, ducting

1шт.

14

700708541

INTAKE AIR HOSE,31.75 mm ID x 600.00 mm, SAE 20R1

Cleaner, Air

1шт.

15

700708542

INTAKE AIR HOSE,76.20 mm ID, 88.90 mm ID x 30.00 mm

1шт.

16

214-1556

HOSE CLAMP,#56, 3.06" - 4", Type F Worm, W/ Liner

1шт.

17

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

3шт.

18

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

19

700117951

TUBE,88.9 mm OD, 70 mm Length

1шт.

20

700708532

INTAKE AIR HOSE,88.90 mm ID x 175.00 mm

1шт.

21

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street

1шт.

22

700708540

PRECLEANER

1шт.

23

700707040

INDICATOR

service

1шт.

24

A189057

AIR CLEANER

ASSEMBLY, see Figure 03-004

1шт.

25

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.
