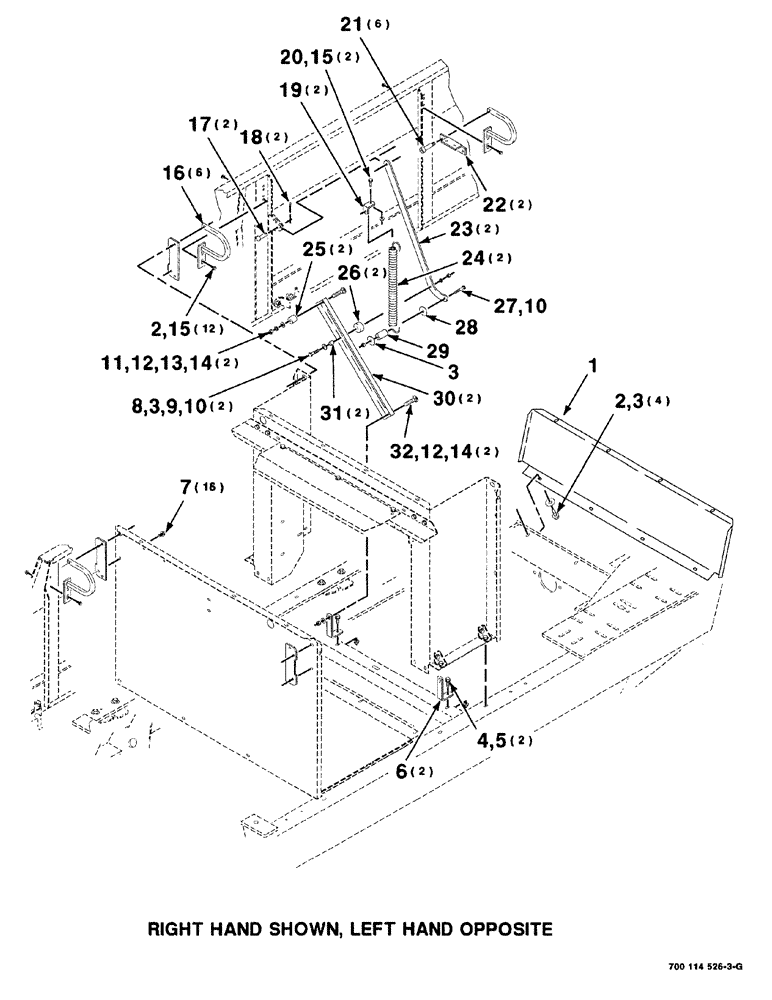

Запчасти Case IH 8840 (07-044) - PANEL STYLING ASSEMBLY (REAR) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700114880

COVER

1шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

16шт.

3

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

plain, wide, 5/16"

7шт.

4

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

5

231-5146

FLANGE NUT,3/8"-16

2шт.

6

700114860

STRAP

mounting

2шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

16шт.

8

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

9

492-11031

LOCK WASHER,5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

3шт.

11

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

2шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

4шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

425-106

NUT,3/8"-16, Cl 5

4шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

16

700111905

HINGE

WA

6шт.

17

427-5112

CLEVIS PIN,5/16" x 1 1/8"

clevis, 5/16" x 1"

2шт.

18

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

19

700114859

SUPPORT

spring

2шт.

20

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

SCREW machine, hex washer head, 5/16"-18 x 1"

2шт.

21

121-126

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 3/8"

6шт.

22

700114867

HINGE

WA hinge

2шт.

23

700114881

SUPPORT

hood

2шт.

24

51200300

EXTENSION

SPRING

2шт.

25

6389555

BUSHING

SPACER

2шт.

26

700114871

SPACER

2шт.

27

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

28

76695

WASHER

plain, hardened, 5/16"

1шт.

29

6112080

SPACER

1шт.

30

700114882

CHANNEL

2шт.

31

700114872

SPACER

2шт.

32

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.
