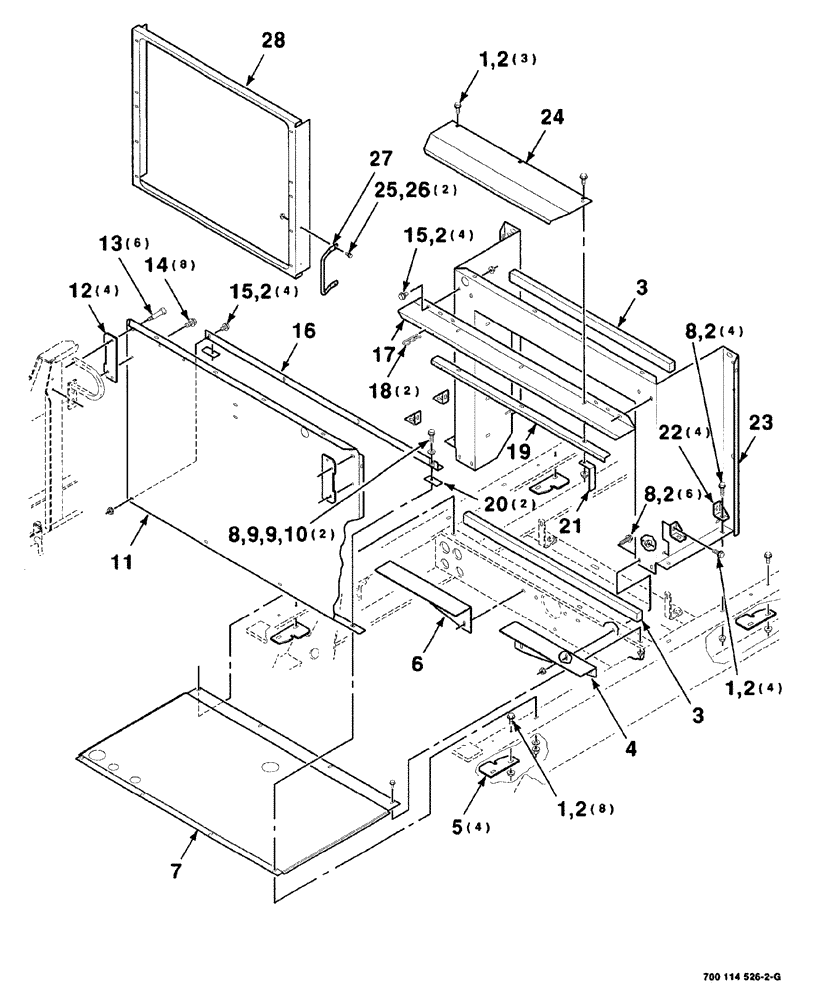

Запчасти Case IH 8840 (07-042) - PANEL STYLING ASSEMBLY (FRONT) (S.N. CFH0031381 AND LATER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

15шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

33шт.

3

844530

GASKET

2шт.

4

700120967

ANGLE

left

1шт.

5

700114985

STOP

latch

4шт.

6

700120968

ANGLE

right

1шт.

7

700114874

FLOOR

1шт.

8

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

SCREW machine, hex washer head, 5/16"-18 x 1"

12шт.

9

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

10

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, 5/16"-18, grade/G

2шт.

11

700120962

PANEL

front

1шт.

12

700111908

BAR PLATE

ASSEMBLY hinge

4шт.

13

121-126

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 3/8"

6шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

15

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

16

700120965

ANGLE

1шт.

17

700114879

ANGLE

1шт.

18

T54573

PIN

cotter, wire hair, .120"

2шт.

19

700114863

STOP

1шт.

20

700120969

SHIM

2шт.

21

700114861

ANGLE

stop

1шт.

22

700120789

ANGLE

front

4шт.

23

700114644

CONVEYOR

BULKHEAD radiator

1шт.

24

700114960

DEFLECTOR

1шт.

25

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

26

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

27

6829360

HANDLE

1шт.

28

700114873

SUPPORT

cooler

1шт.
