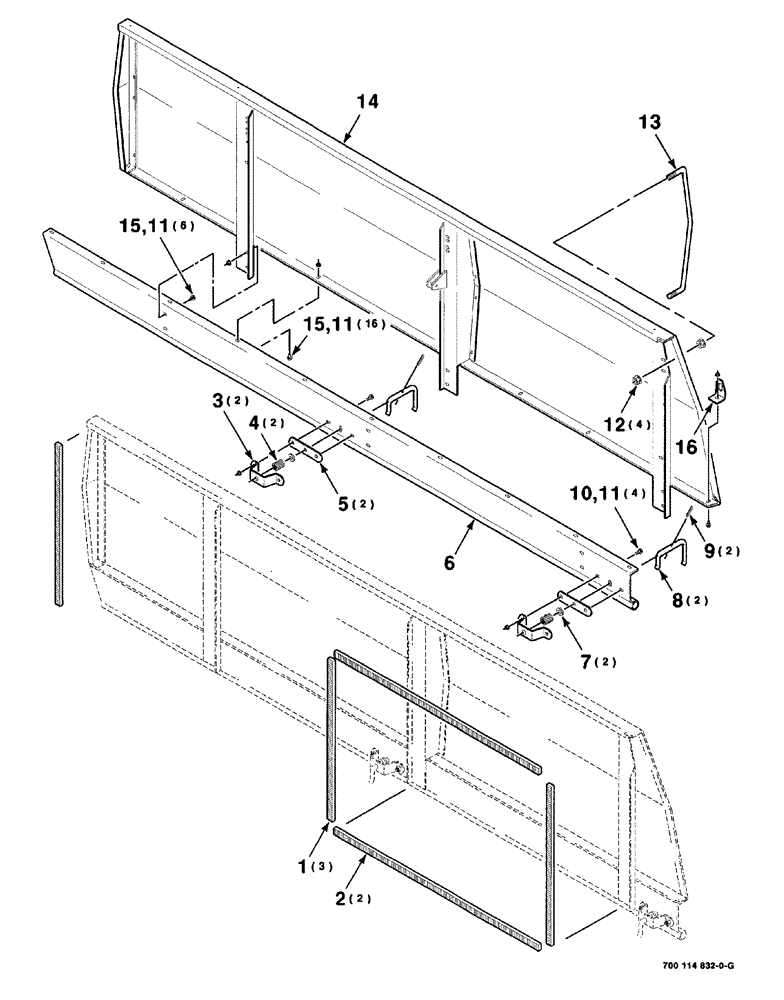

Запчасти Case IH 8840 (07-034) - PANEL STYLING SIDE ASSEMBLY (LEFT) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700114816

WEATHERSTRIP

STRIPPING weather

3шт.

2

700114815

WEATHERSTRIP

STRIPPING weather

2шт.

3

700111869

BRACKET

latch

2шт.

4

58685

SPRING

compression

2шт.

5

700111870

LARGE PLATE

PLATE, LARGE

2шт.

6

700114834

PANEL

left, lower

1шт.

7

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

2шт.

8

700111868

HANDLE

2шт.

9

438-11232

LOCK PIN,3/16" x 2", Slotted

SSP, 3/16" x 2-1/4"

2шт.

10

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

26шт.

12

7704919

FLANGE NUT,Flg, 5/8"-11, G8

HFN, 5/8"-11, grade 8

4шт.

13

700111867

HANDLE

1шт.

14

700114837

COVER

ASSEMBLY left

1шт.

15

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

22шт.

16

700114855

ANGLE

1шт.
