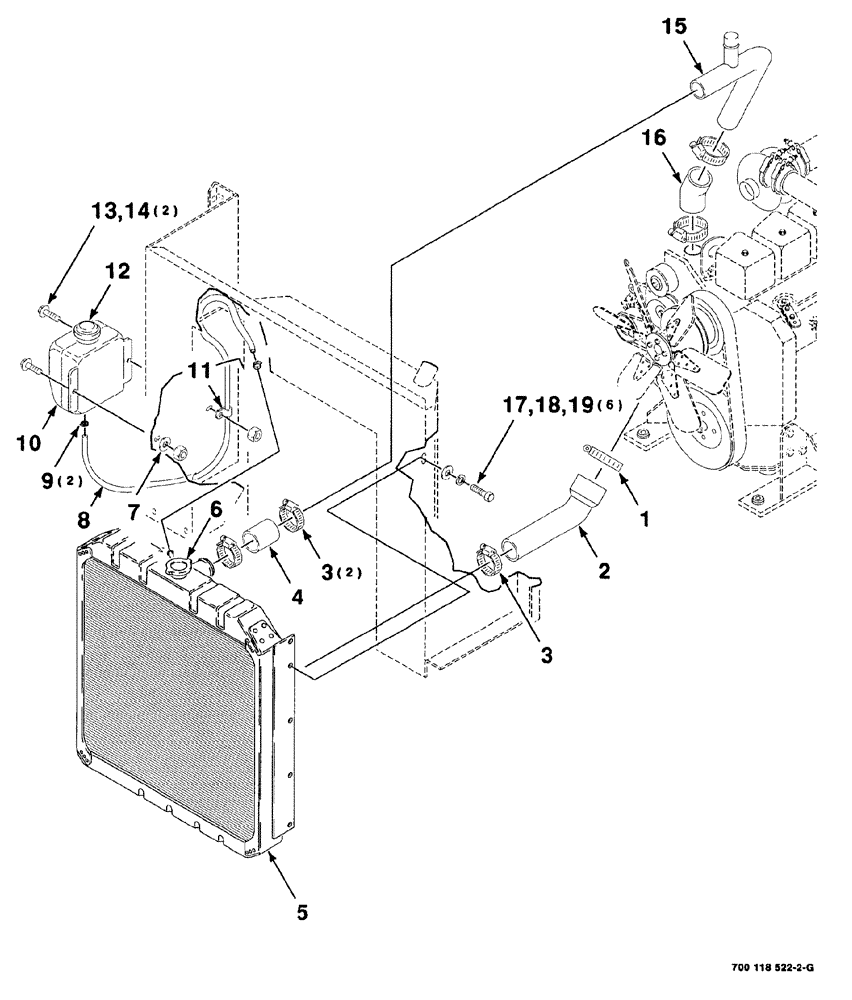

Запчасти Case IH 8840 (02-010) - RADIATOR ASSEMBLY (10) - ENGINE

1

214-1444

HOSE CLAMP,58.6mm - 82.5mm

1шт.

2

700708543

HOSE

radiator, lower

1шт.

3

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

3шт.

4

741389

RADIATOR

HOSE coupler

1шт.

5

700708264

RADIATOR

1шт.

6

700708265

CAP

radiator

1шт.

7

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4"

1шт.

8

2400028

HOSE,0.31" ID x 48.03", SAE 30R1

overflow

1шт.

9

7721020

HOSE CLAMP

2шт.

10

700705626

TANK

reservoir, coolant

1шт.

11

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line

1шт.

12

700706181

CAP

reservoir

1шт.

13

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

machine, hex washer head, 1/4"-20 x 3/4"

2шт.

14

425-104

NUT,1/4"-20, Cl 5

2шт.

15

700708533

TUBE,44.45 mm OD, 360, 328 mm Length

radiator

1шт.

16

700708561

HOSE

coupler

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

18

492-11038

LOCK WASHER,3/8"

6шт.

19

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

6шт.
