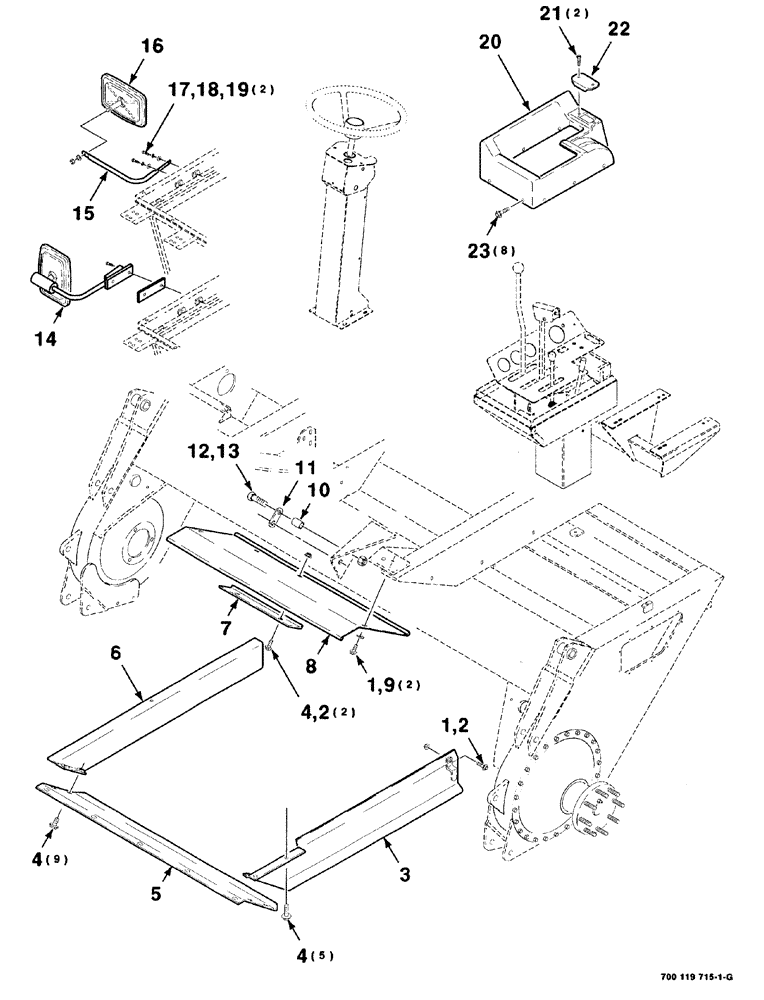

Запчасти Case IH 8840 (07-030) - PLATFORM SHIELDS ASSEMBLY (LOWER) (S.N. CFH0031381 AND LATER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

3

700111920

SHIELD

WA left

1шт.

4

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

16шт.

5

700115744

COACHWORK

front

1шт.

6

700115740

SHIELD

WA right

1шт.

7

700119713

ANGLE

1шт.

8

700119714

COVER

front

1шт.

9

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

plain, wide, 5/16"

2шт.

10

700114925

BUSHING

1шт.

11

700117954

STRAP

1шт.

12

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

SCREW cap, hex, 3/4"-10 x 3"

1шт.

13

425-1012

NUT,3/4"-10, G5

1шт.

14

5108721

REAR VIEW MIRROR

right

1шт.

Superseded by 700708969 and 700117841.

1шт.

15

700117841

SUPPORT

mirror, right

1шт.

16

L74714

MIRROR

1шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

18

492-11025

LOCK WASHER,1/4"

2шт.

19

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4"

2шт.

20

700111844

COVER

console

1шт.

21

7706203

SCREW,Pan, #6 - 20 x 1/4"

SPHTCTS, No. 6-20 x 1/4"

2шт.

22

700111927

COVER

fuse box

1шт.

23

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

tapping, thread cutting, hex washer head, 1/4"-20 x 1/2"

8шт.
