(07-028) - PLATFORM SHIELDS ASSEMBLY (LOWER) (S.N. CFH0031001 THRU CFH0031380)

Запчасти Case IH 8840 (07-028) - PLATFORM SHIELDS ASSEMBLY (LOWER) (S.N. CFH0031001 THRU CFH0031380) (90) - PLATFORM, CAB, BODYWORK AND DECALS

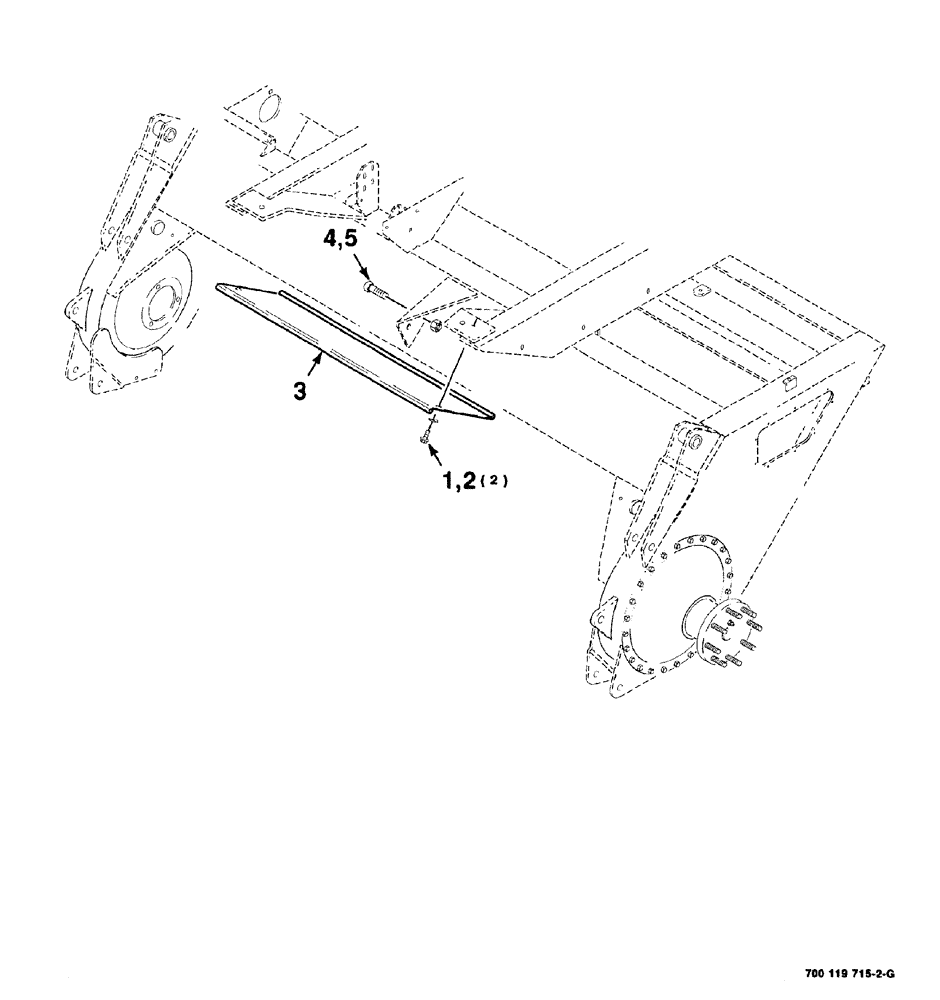

Схема запчастей Case IH 8840 - (07-028) - PLATFORM SHIELDS ASSEMBLY (LOWER) (S.N. CFH0031001 THRU CFH0031380) (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
2
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

2

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

plain, wide, 5/16"

2шт.

3

700115743

COACHWORK

SHIELD front

1шт.

4

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

SCREW cap, hex, 3/4"-10 x 3"

1шт.

5

425-1012

NUT,3/4"-10, G5

1шт.
