(07-026) - CAB FOOT SUPPORT ASSEMBLIES

Запчасти Case IH 8840 (07-026) - CAB FOOT SUPPORT ASSEMBLIES (90) - PLATFORM, CAB, BODYWORK AND DECALS

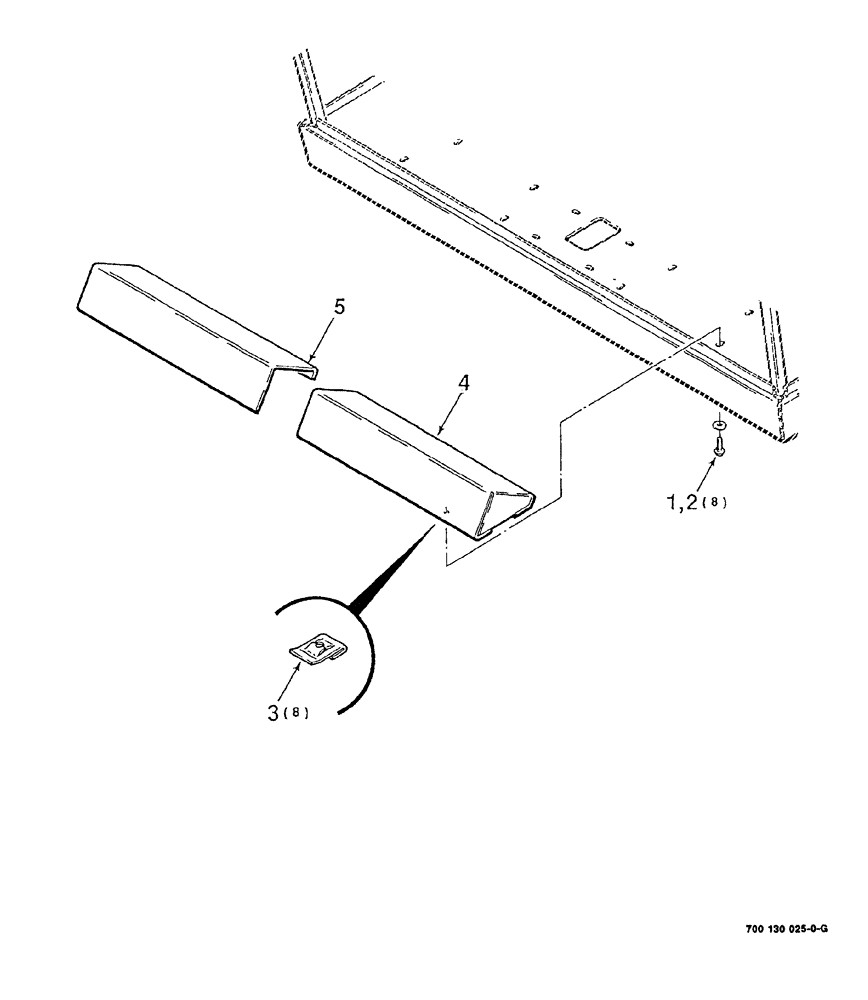

Схема запчастей Case IH 8840 - (07-026) - CAB FOOT SUPPORT ASSEMBLIES (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
1
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7883291

SCREW,Hex Washer, 1/4" - 20 x 1 1/4"

machine, hex washer head, 1/4"-20 x 1-1/4"

8шт.

2

495-21031

WASHER,1/4"

8шт.

3

74740

NUT

speed, 1/4"-20

8шт.

4

700110110

SUPPORT

left

1шт.

5

700110111

SUPPORT

right

1шт.
