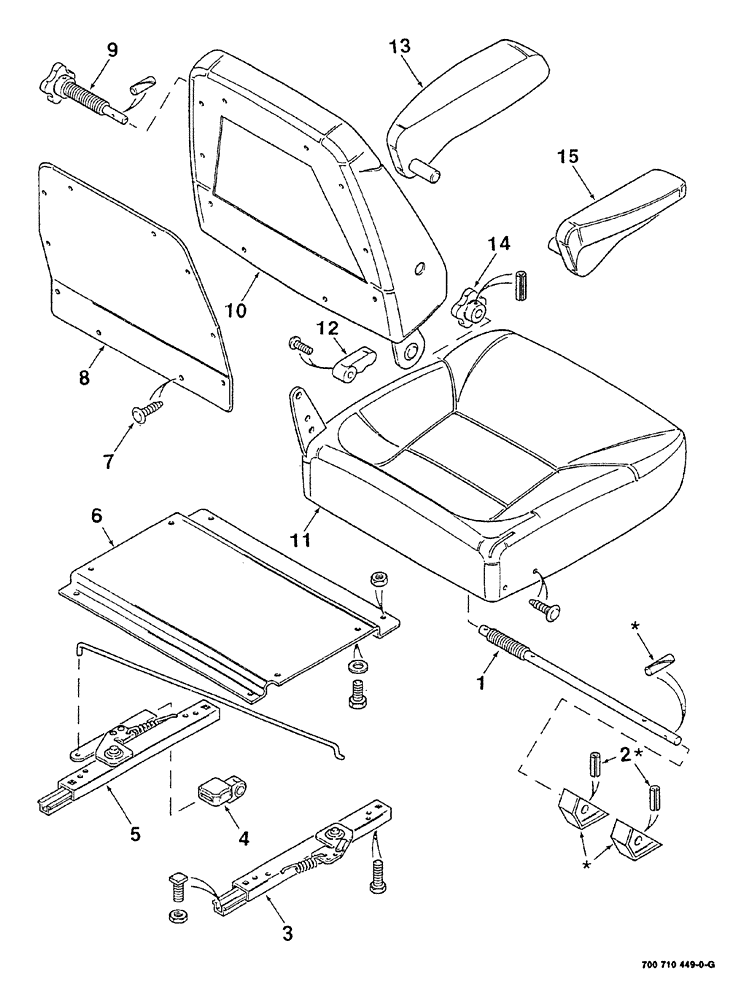

Запчасти Case IH 8840 (07-022) - SEAT ASSEMBLY (S.N. CFH0031381 THRU CFH0086415) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1981813C1

PACKAGE, REPAIR

SEAT, with backrest complete

1шт.

P/N 243700A1 interchanges with P/N 1981813C1, but existing stock of P/N 1981813C1 should be used prior to ordering P/N 243700A1.

1шт.

S.N. CFH0031381 thru CFH0031842.

1шт.

243700A1

SPARE PART SET

SEAT, with backrest complete

1шт.

P/N 243700A1 interchanges with P/N 1981813C1, but P/N 243700A1 must be stocked for it's respective effectivity.

1шт.

S.N. CFH0031843 and later.

1шт.

182991A1

LARGE PLATE

PLATE, LARGE seat, adapter

1шт.

P/N 182991A1 must be stocked for it's respective effectivity.

1шт.

1

1343826C2

SHAFT ASSY.

cam, Includes items in art marked with an asterisk

1шт.

Part of Seat Cushion Assembly, Ref. 11, P/N 243700A1 and P/N 242321A1.

1шт.

2

38-31016

PIN,5/32" x 1", Coiled

1шт.

Part of Seat Cushion Assembly, Ref. 11, P/N 243700A1 and P/N 242321A1.

1шт.

3

700709441

SLIDE

ASSEMBLY slave

1шт.

4

1999691C1

PACKAGE,SERVICE

KNOB fore and aft

1шт.

5

1344248C1

SLIDE

ASSEMBLY locking, with handle

1шт.

6

182991A1

LARGE PLATE

PLATE, LARGE seat adapter

1шт.

P/N 182991A1 must be stocked for it's respective effectivity.

1шт.

S.N. CFH0031381 thru CFH0081842.

1шт.

182991A1

LARGE PLATE

PLATE, LARGE seat adapter

1шт.

P/N 182991A1 must be stocked for it's respective effectivity.

1шт.

S.N. CFH0031843 and later.

1шт.

242321A1

CUSHION ASSY.

SET

1шт.

P/N 242321A1 must be stocked for it's respective effectivity.

1шт.

S.N. CFH0031843 and later.

1шт.

7

1999693C1

KIT

clips, christmas tree

1шт.

8

1981820C2

PACKAGE, REPAIR

KIT backrest cover

1шт.

9

1999691C1

PACKAGE,SERVICE

KNOB lumbar

1шт.

10

1981816C2

PACKAGE,SERVICE

KIT backrest pad

1шт.

Part of Seat Cushion Assembly, Ref. 11, P/N 243700A1 and P/N 242321A1.

1шт.

11

243700A1

SPARE PART SET

CUSHION ASSEMBLY seat, Includes: Ref. 1, 2, 10, 11 and 12

1шт.

P/N 242321A1 interchanges with P/N 243700A1, but existing stock of P/N 243700A1 should be used prior to ordering P/N 242321A1.

1шт.

242321A1

CUSHION ASSY.

seat, Includes: Ref. 1, 2, 10, 11 and 12

1шт.

P/N 242321A1 interchanges with P/N 243700A1, but P/N 242321A1 must be stocked for it's respective effectivity.

1шт.

182991A1

LARGE PLATE

PLATE, LARGE adapter, seat

1шт.

P/N 182991A1 must be stocked for it's respective effectivity.

1шт.

Part of Seat Cushion Assembly, Ref. 11, P/N 243700A1 and P/N 242321A1.

1шт.

12

1999691C1

PACKAGE,SERVICE

KIT back tilt

1шт.

Part of Seat Cushion Assembly, Ref. 11, P/N 243700A1 and P/N 242321A1.

1шт.

13

1981818C1

ARMREST

left

1шт.

14

1999691C1

PACKAGE,SERVICE

KNOB seat tilt

1шт.

15

700708810

ARMREST ASSY.

right

1шт.
