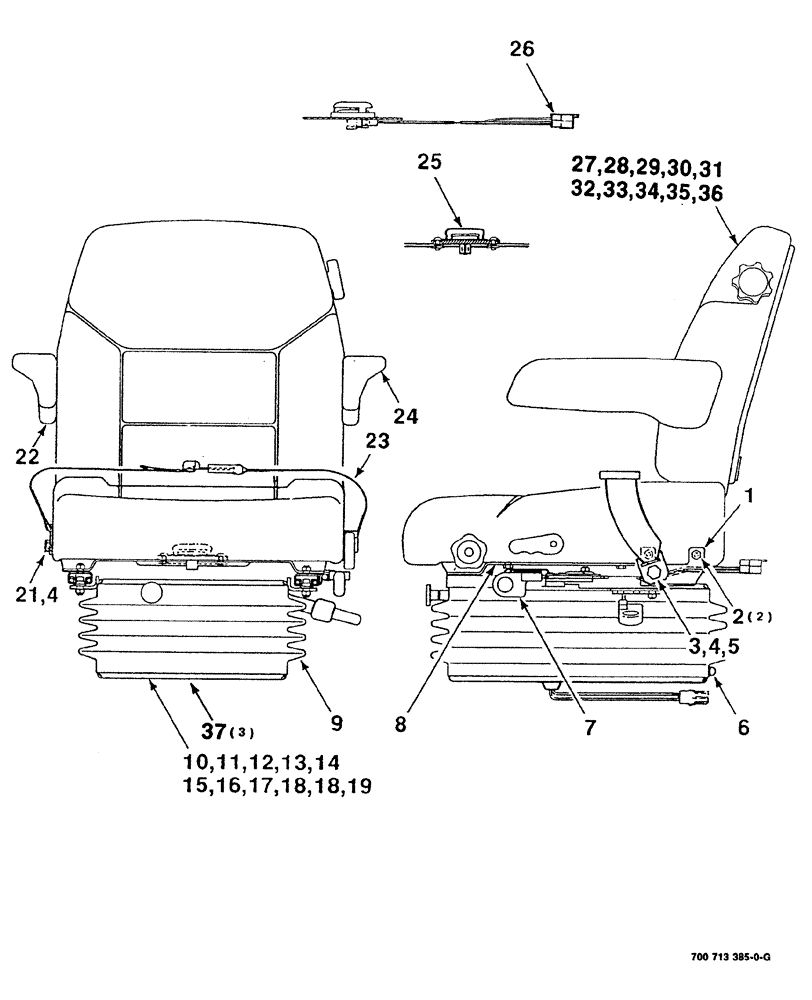

Запчасти Case IH 8840 (07-020) - SEAT ASSEMBLY (S.N. CFH0086416 AND LATER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

700713385

SEAT

ASSEMBLY cloth, complete

1шт.

1

1975957C1

BRACKET

mounting, seat belt

1шт.

2

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

3

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

1шт.

4

496-21047

WASHER

plain, hardened, 7/16"

2шт.

5

131-1119

LOCK NUT,7/16"-24, GA

center, hex, 7/16"-20

1шт.

6

132872A1

KIT

Service, boot button

1шт.

7

1344248C1

SLIDE

KIT service, single locking

1шт.

8

182991A1

LARGE PLATE

PLATE, LARGE adapter, seat, narrow

1шт.

9

1990647C2

KIT

BOOT air suspension

1шт.

10

241196A1

SUSPENSION

ASSEMBLY air, with isolator, Includes: Ref. 11 thru 19

1шт.

11

1999947C4

COMPRESSOR

KIT service, wire harness

1шт.

Part of Air Suspension Assembly, Ref. 10, P/N 241196A1.

1шт.

12

1344250C2

KIT

KIT service, shock absorber, suspension

1шт.

Part of Air Suspension Assembly, Ref. 10, P/N 241196A1.

1шт.

13

197793A1

SPRING

PART service, air

1шт.

Part of Air Suspension Assembly, Ref. 10, P/N 241196A1.

1шт.

14

1990645C1

LATCH

ASSEMBLY isolator

1шт.

Part of Air Suspension Assembly, Ref. 10, P/N 241196A1.

1шт.

15

227546A1

KIT

KIT service, shock absorber, isolator

1шт.

Part of Air Suspension Assembly, Ref. 10, P/N 241196A1.

1шт.

16

180594A3

KIT

KIT service, bearing, latch isolator, air suspension

1шт.

Part of Air Suspension Assembly, Ref. 10, P/N 241196A1.

1шт.

17

1981852C3

SWITCH

KIT service, air valve

1шт.

Part of Air Suspension Assembly, Ref. 10, P/N 241196A1.

1шт.

18

180593A1

KIT

BUMPER

2шт.

Part of Air Suspension Assembly, Ref. 10, P/N 241196A1.

1шт.

19

700713652

SHAFT

bearing

1шт.

Part of Air Suspension Assembly, Ref. 10, P/N 241196A1.

1шт.

20

1990548C4

KIT

KIT service, air line and fittings

1шт.

21

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

1шт.

22

700708810

ARMREST ASSY.

PIN right

1шт.

23

741033

SAFETY BELT

seat

1шт.

24

1981818C1

ARMREST

PIN left

1шт.

25

242306A2

SWITCH

seat

1шт.

26

1345209C1

HARNESS

switch, seat

1шт.

27

243700A1

SPARE PART SET

SEAT ASSEMBLY top, without armrests, Includes: Ref. 35 and 36

1шт.

28

1981816C2

PACKAGE,SERVICE

KIT back pad

1шт.

29

242321A1

CUSHION ASSY.

seat

1шт.

30

1999691C1

PACKAGE,SERVICE

KIT top knob, seat

1шт.

31

1999691C1

PACKAGE,SERVICE

KNOB fore and aft

1шт.

32

1981820C2

PACKAGE, REPAIR

KIT service, backrest cover

1шт.

33

1999693C1

KIT

service, clip, back cover

1шт.

34

1999691C1

PACKAGE,SERVICE

KNOB lumbar

1шт.

35

700719053

CUSHION

ASSEMBLY seat

1шт.

Part of Top Seat Assembly, Ref. 27, P/N 243700A1.

1шт.

36

700719055

CUSHION

BACKREST ASSEMBLY

1шт.

Part of Top Seat Assembly, Ref. 27, P/N 243700A1.

1шт.

37

A45054

BUMPER,Neoprene

3шт.
