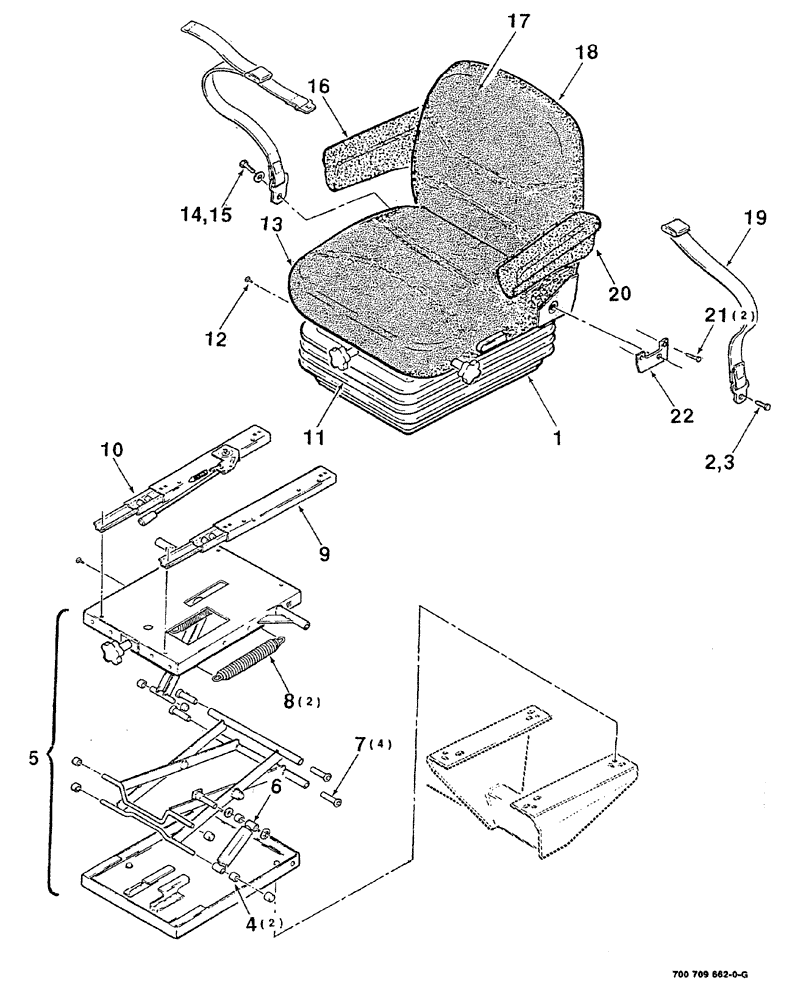

Запчасти Case IH 8840 (07-018) - SEAT ASSEMBLY (S.N. CFH0031381 THRU CFH0086415) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700709662

SEAT

ASSEMBLY complete

1шт.

P/N 700122900 interchanges with P/N 700709662 , but existing stock of P/N 700709662 should be used prior to ordering P/N 700122900.

1шт.

700122900

SEAT

ASSEMBLY complete

1шт.

P/N 700122900 interchanges with P/N 700709662, but P/N 700122900 must be stocked for it's respective effectivity.

1шт.

2

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

1шт.

3

492-11044

LOCK WASHER,7/16"

1шт.

4

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

shock

2шт.

5

241190A1

PACKAGE

KIT suspension assembly

1шт.

6

1344250C2

KIT

ABSORBER shock

1шт.

7

1344249C1

KIT

TUBE bearing

4шт.

8

123968A2

PACKAGE

SPRING suspension

2шт.

9

700709441

SLIDE

ASSEMBLY

1шт.

10

1344248C1

SLIDE

ASSEMBLY, with handle

1шт.

11

1990647C2

KIT

BOOT ASSEMBLY suspension, with screws

1шт.

12

132872A1

KIT

Pins, packaged 25 per box

1шт.

132872A1

KIT

Service, boot button

1шт.

13

243701A1

CUSHION, SEAT

KIT

1шт.

14

414-732

BOLT,Hex, 7/16" - 20 x 2", Gr 5

hex, 7/16"-20 x 2"

1шт.

15

496-21047

WASHER

plain, hardened, 7/16"

1шт.

16

700708810

ARMREST ASSY.

right

1шт.

17

1981816C2

PACKAGE,SERVICE

KIT backrest pad

1шт.

18

1981820C2

PACKAGE, REPAIR

KIT backrest cover

1шт.

19

741033

SAFETY BELT

ASSEMBLY seat

1шт.

20

1981818C1

ARMREST

left

1шт.

21

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

22

1975957C1

BRACKET

seat belt, left

1шт.
