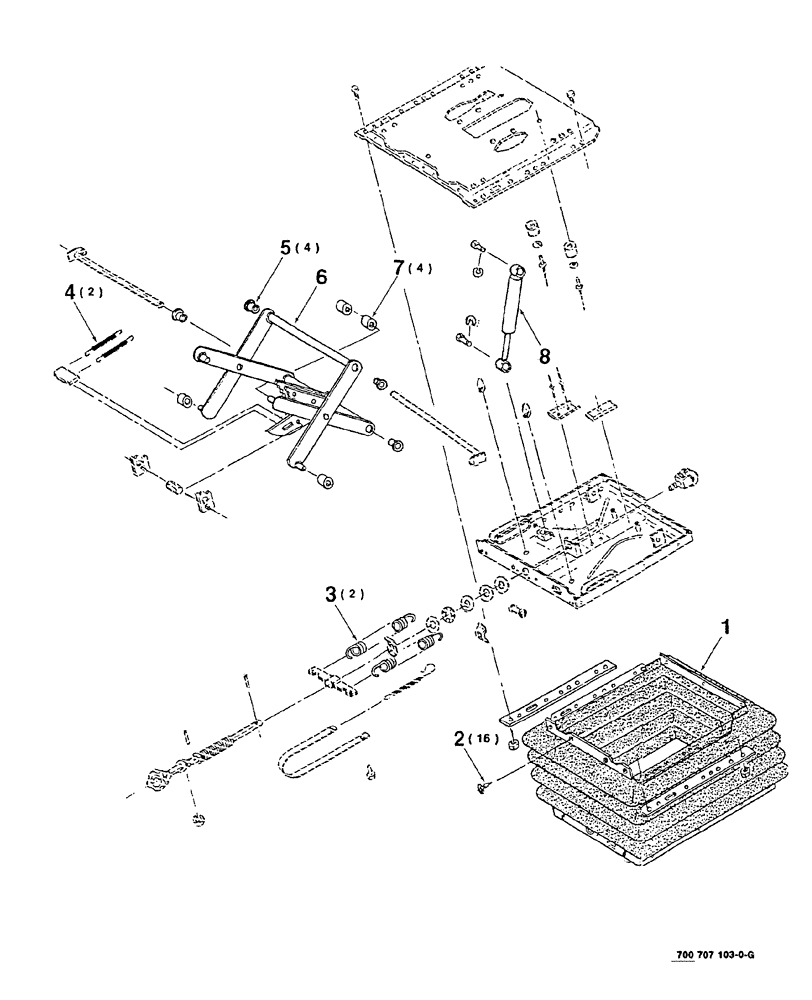

Запчасти Case IH 8840 (07-016) - SEAT ASSEMBLY (S.N. CFH0031001 THRU CFH0031356) (90) - PLATFORM, CAB, BODYWORK AND DECALS

700707103

DRIVER SEAT

complete

1шт.

P/N 700709662 interchanges with P/N 700707103, but existing stock of P/N 700707103 should be used prior to ordering P/N 700709662.

1шт.

700709662

SEAT

ASSEMBLY complete

1шт.

P/N 700709662 interchanges with P/N 700707103, but P/N 700709662 must be stocked for it's respective effectivity.

1шт.

700122900

SEAT

ASSEMBLY complete

1шт.

P/N 700122900 must be stocked for it's respective effectivity.

1шт.

700713385

SEAT

ASSEMBLY complete

1шт.

P/N 700713385 must be stocked for it's respective effectivity.

1шт.

1

700709375

BOOT

ASSEMBLY shield

1шт.

2

700709374

FASTENER

16шт.

3

3225330R1

SPRING

suspension

2шт.

4

60-1603T1

SPRING

tension

2шт.

5

700709371

BUSHING

bearing

4шт.

6

700709370

FUNNEL

FRAME suspension

1шт.

7

3225310R1

ROLLER

BUSHING

4шт.

8

700709372

SHOCK ABSORBER

1шт.
