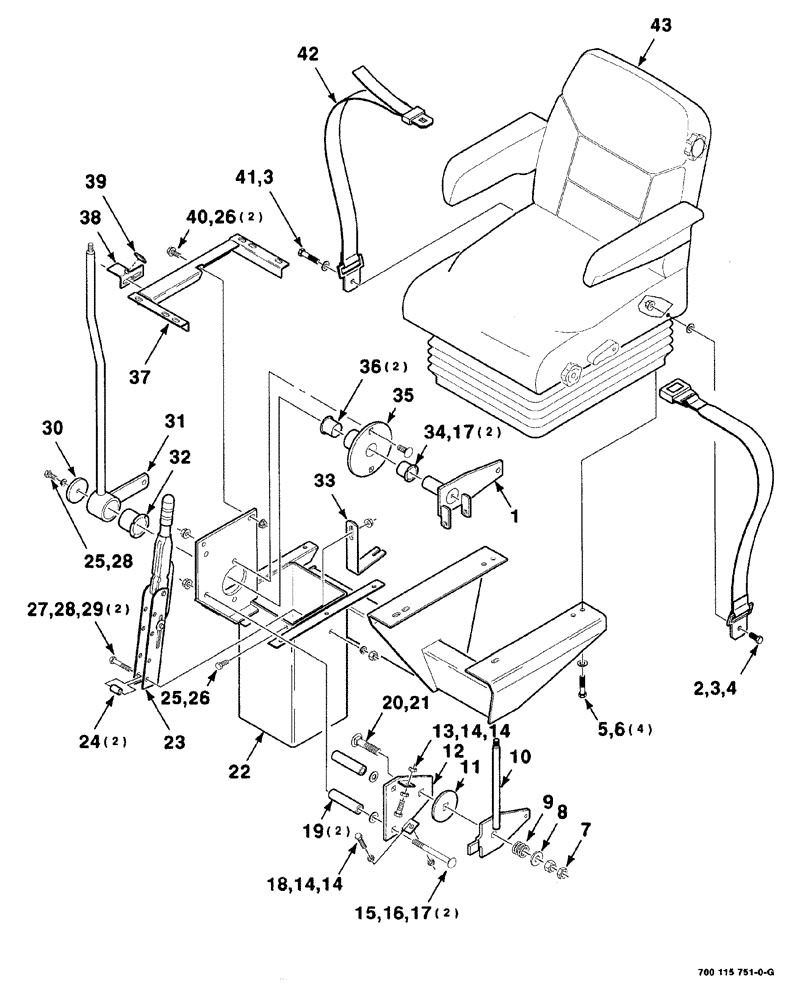

Запчасти Case IH 8840 (07-014) - CONTROLS ASSEMBLY (OPERATORS) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700115468

PIVOT

WA

1шт.

2

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

1шт.

3

496-21047

WASHER

plain, hardened, 7/16"

2шт.

4

131-1119

LOCK NUT,7/16"-24, GA

center, hex, 7/16"-20

1шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

7

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

8

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

1шт.

9

58024

SPRING

compression

1шт.

10

700111019

LEVER

WA

1шт.

11

700711026

DISC

friction

1шт.

12

700114951

SUPPORT

WA lever

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

14

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

15

433-664

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4", Gr 5

BOLT square neck, round head, 3/8"-16 x 4"

2шт.

16

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

2шт.

17

231-5146

FLANGE NUT,3/8"-16

4шт.

18

700705617

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

SCREW cap, hex, full thread, 5/16"-18 x 1-1/4"

1шт.

19

700116062

SPACER

2шт.

20

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1шт.

21

425-108

NUT,1/2" - 13, Gr 5

1шт.

22

700111038

HOUSING

WA controls

1шт.

Due to a design change P/N 700111038 and P/N 700130150 are not interchangeable.

1шт.

S.N. CFH0031001 thru CFH0086415.

1шт.

700130150

MOUNTING PARTS

WA controls

1шт.

Due to a design change P/N 700111038 and P/N 700130150 are not interchangeable.

1шт.

S.N. CFH0086416 and later.

1шт.

23

H506881

HANDLE

LEVER ASSEMBLY parking brake

1шт.

24

6606966

SPACER

2шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

27

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

28

492-11031

LOCK WASHER,5/16"

3шт.

29

425-105

NUT,5/16"-18, G5

2шт.

30

6617344

WASHER

WASHER

1шт.

31

700111026

LEVER

WA

1шт.

32

700705559

BUSHING

nylined

1шт.

33

700115752

SUPPORT

throttle

1шт.

34

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

35

700111023

MOUNTING PLATE

WA

1шт.

36

277523R1

BUSHING

nylined

2шт.

37

700111050

FRAME

WA

1шт.

38

700115757

BRACKET

BRACKET stop

1шт.

39

6805055

SEAL

neoprene rubber, bulk, 20 feet

1шт.

40

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

41

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

1шт.

42

741033

SAFETY BELT

ASSEMBLY seat

1шт.

43

700707103

DRIVER SEAT

1шт.

P/N 700709662 interchanges with P/N 700707103, but existing stock of P/N 700707103 should be used prior to ordering P/N 700709662.

1шт.

700709662

SEAT

ASSEMBLY

1шт.

P/N 700709662 interchanges with P/N 700707103, but P/N 700709662 must be stocked for it's respective effectivity.

1шт.

700122900

SEAT

ASSEMBLY

1шт.

P/N 700122900 must be stocked for it's respective effectivity.

1шт.

700713385

SEAT

ASSEMBLY

1шт.

P/N 700713385 must be stocked for it's respective effectivity.

1шт.
