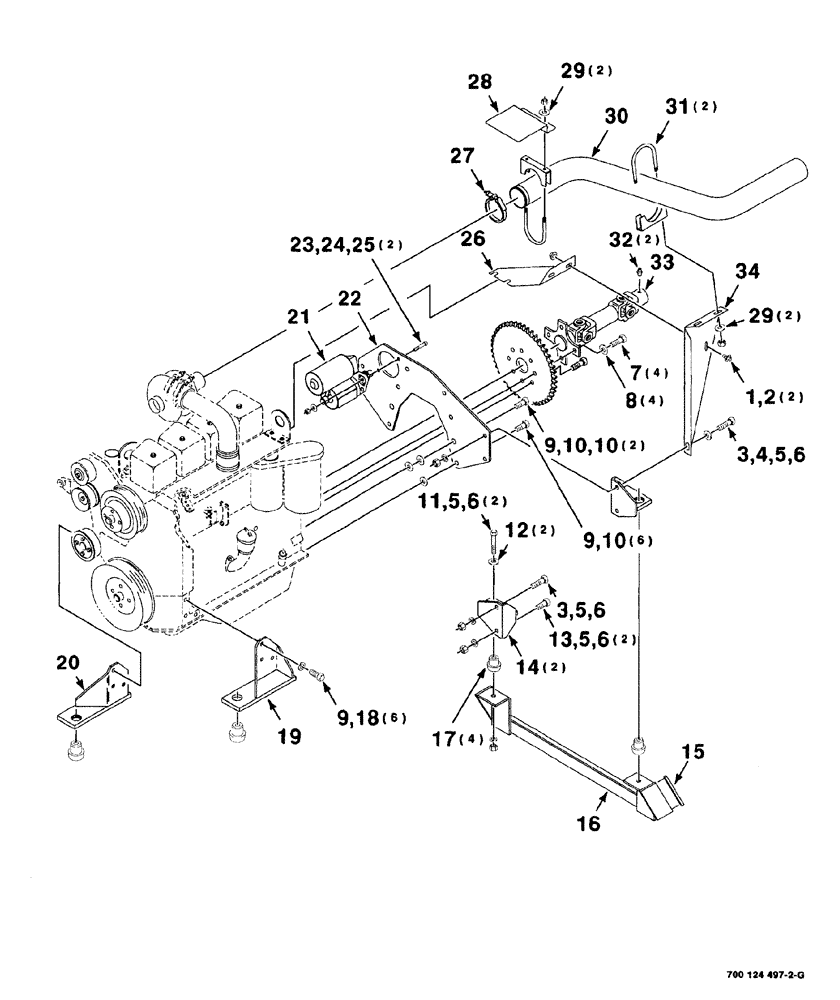

Запчасти Case IH 8840 (02-006) - ENGINE MOUNT, REAR DRIVE AND STARTER ASSEMBLY (10) - ENGINE

1

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

3

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

4

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

6

425-108

NUT,1/2" - 13, Gr 5

6шт.

7

700708551

CAPSCREW,M12 x 1.25 x 40mm, Cl 12.9

hex, M12 x 1.25 x 40, class 12.9

4шт.

8

700708548

WASHER

hardened

4шт.

9

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

14шт.

10

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Plain, hardened

10шт.

11

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW cap, hex, 1/2"-13 x 2-3/4"

2шт.

12

457432

WASHER

2шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

14

700117904

MOUNTING PARTS

WA rear

2шт.

15

700105604

ADHESIVE STRIP

TRIM

1шт.

16

700117872

MOUNTING PARTS

PLATE, WA rear

1шт.

17

700707039

RUBBER MOUNTING

MOUNT rubber

4шт.

18

892-10012

LOCK WASHER,M12

Spring, Helical

6шт.

19

700117867

MOUNTING PARTS

SUPPORT left

1шт.

20

700117868

MOUNTING PARTS

SUPPORT right

1шт.

21

A170746

STARTING MOTOR

1шт.

21

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, STARTER

1шт.

21

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

22

700117898

LARGE PLATE

PLATE, LARGE rear

1шт.

23

7771728

SCREW

cap, hex, M10 x 1.50 x 40

2шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Hardened

2шт.

25

825-1410

NUT,M10, Cl 8

2шт.

26

700117881

GUSSET

SUPPORT

1шт.

27

700708544

CLAMP

T bolt

1шт.

28

700117857

SHIELD

1шт.

29

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

4шт.

30

700708534

PIPE

exhaust

1шт.

31

722769

CLAMP

2шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

33

700708535

UNIVERSAL JOINT

ASSEMBLY, see Figure 02-008

1шт.

34

700130035

SUPPORT

exhaust

1шт.
