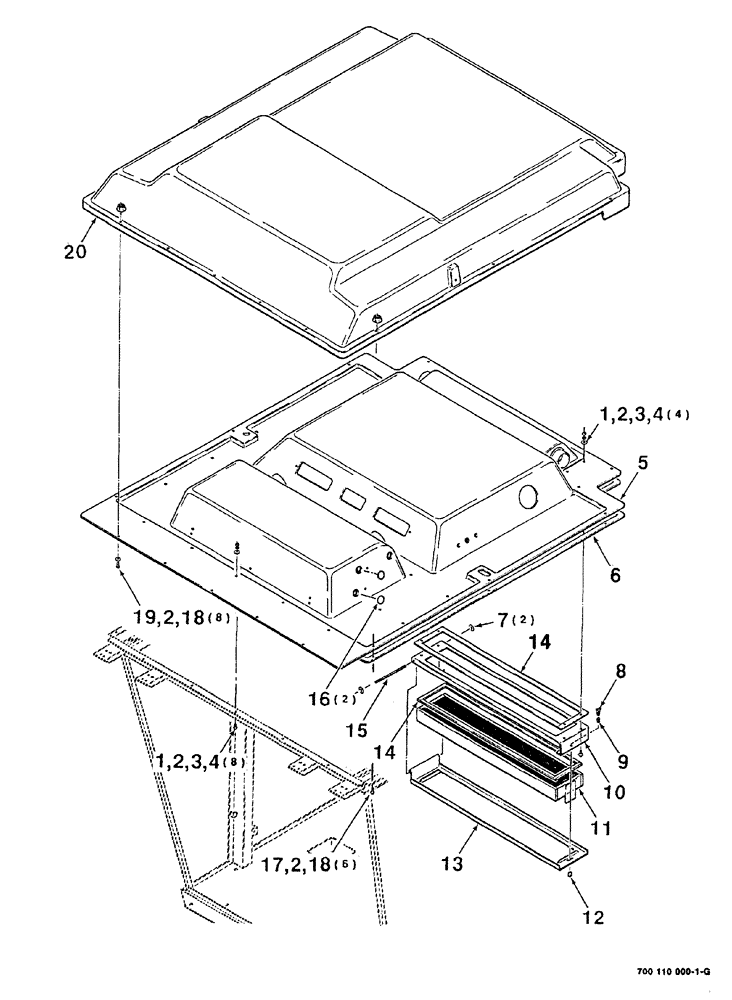

Запчасти Case IH 8840 (07-010) - CAB ROOF AND FRAME ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

machine, hex washer head, 1/4"-20 x 3/4"

12шт.

2

495-21031

WASHER,1/4"

26шт.

3

492-11025

LOCK WASHER,1/4"

12шт.

4

425-104

NUT,1/4"-20, Cl 5

12шт.

5

700110113

ROOF LINING

HEADLINER ASSEMBLY

1шт.

6

6805055

SEAL

strip, 20 bulk length

1шт.

7

700707858

SNAP RING

RING

2шт.

8

7894975

CLIP

1шт.

9

7758212

SPRING

1шт.

10

700116911

PANEL

filter

1шт.

11

8022345

FILTER

1шт.

12

7894967

HANDLE

1шт.

13

700116912

LID

LID filter

1шт.

14

8022501

SEAL

filter

2шт.

15

700116914

PIN

hinge

1шт.

16

700708527

PLUG

hole

2шт.

17

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

machine, hex washer head, 1/4"-20 x 1"

6шт.

18

1703354

NUT

lock, hex flange top, 1/4"-20, grade/G

14шт.

19

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

20

700117559

CAP

outer

1шт.
