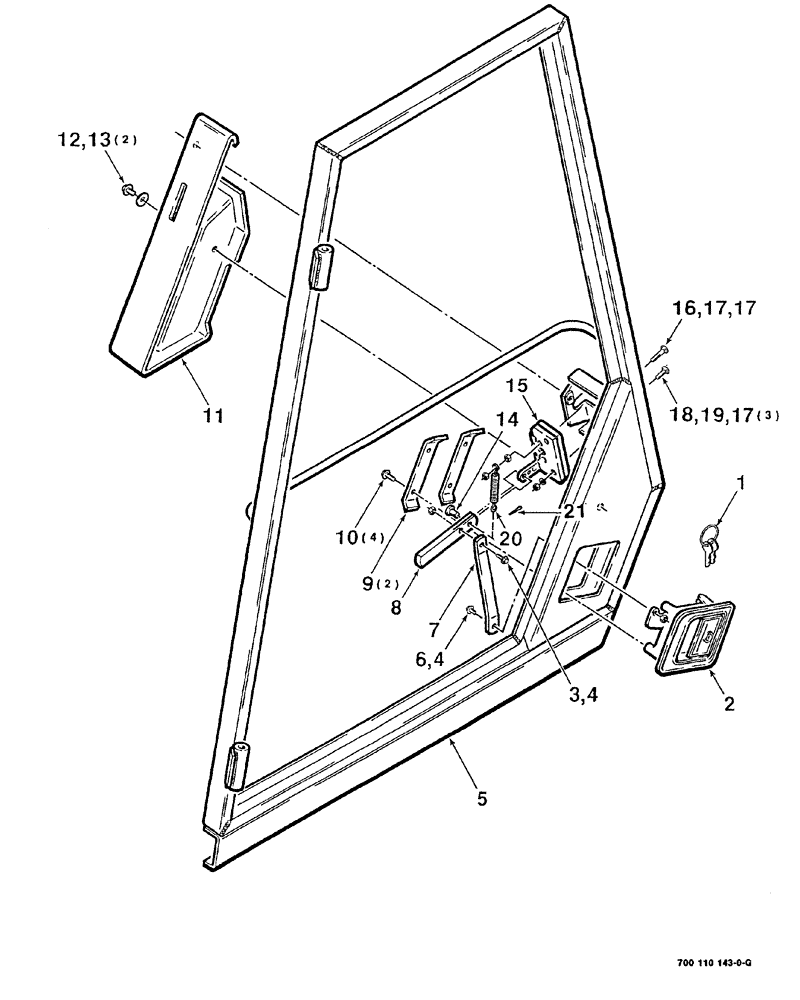

Запчасти Case IH 8840 (07-004) - CAB DOOR ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

8025306

KEY

SET

1шт.

2

700704800

HANDLE

ASSEMBLY flush mount

1шт.

3

700707203

CAPTIVE WASHER SCREW

SCREW machine, hex washer head, No.12-24 x 3/4"

1шт.

4

1954816C1

LOCK NUT

lock, hex center, No.12-24

2шт.

5

700110069

DOOR

WA

1шт.

6

463-3128

SCREW,Hex Wash Hd, #12-24 x 1/2"

machine, hex washer head, No.12-24 x 1/2"

1шт.

7

700110557

LINK

door latch

1шт.

8

700110094

HANDLE

1шт.

9

700110096

STRAP

retainer

2шт.

10

63-31010

SCREW,Hex Wash Hd, #10-24 x 5/8"

machine, hex washer head, No. 10-24 x 5/8"

4шт.

11

700110112

COVER

1шт.

12

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

13

495-21031

WASHER,1/4"

2шт.

14

427-3058

CLEVIS PIN,3/16" x .580"

3/16" x 1/2"

1шт.

15

700704802

LATCH

LATCH left

1шт.

16

7770183

BOLT,Round, 1/4" - 20 x 1 1/2", Grade 5

square neck, round head, 1/4"-20 x 1-1/2"

1шт.

17

425-104

NUT,1/4"-20, Cl 5

5шт.

18

111-122

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 1/4", G5

3шт.

19

492-11025

LOCK WASHER,1/4"

3шт.

20

7758022

SPRING

extension

1шт.

21

432-412

COTTER PIN,1/16" x 3/4"

1шт.
