(09-024) - GUARD ANGLE TILT KIT

Запчасти Case IH 8840 (09-024) - GUARD ANGLE TILT KIT (88) - ACCESSORIES

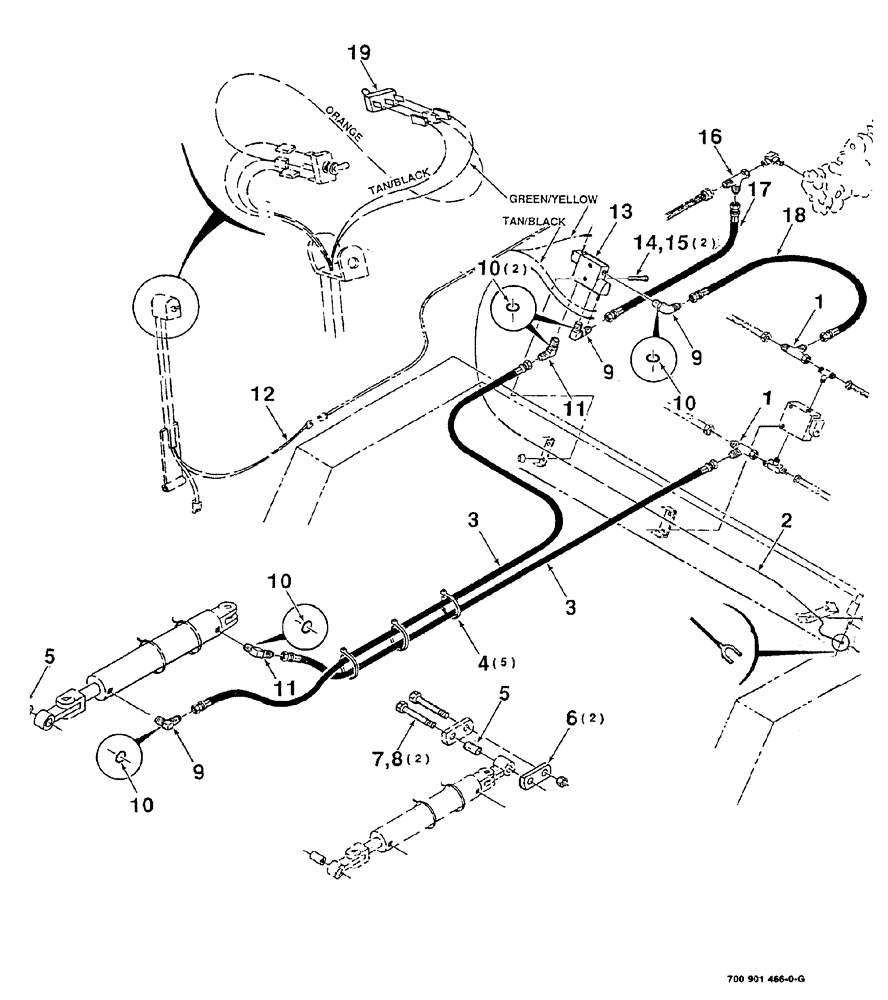

Схема запчастей Case IH 8840 - (09-024) - GUARD ANGLE TILT KIT (88) - ACCESSORIES
16
10
11
2
3
19
18
10
9
1
17
1
15
10
8
9
4
7
9
5
3
12
10
5
13
6
11
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK60442

ATTACHMENT

KIT guard angle tilt, complete, to be ordered thru wholegoods only

1шт.

1

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

2

700707732

WIRE

electric

1шт.

3

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

2шт.

4

529070

CABLE TIE,368.3mm L

TIE cable

5шт.

5

700114925

BUSHING

BUSHING

2шт.

6

700117954

STRAP

2шт.

7

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

cap, hex, 3/4"-10 x 3-1/4"

2шт.

8

425-1012

NUT,3/4"-10, G5

2шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 13

3шт.

10

738468

O-RING

5шт.

11

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 13

2шт.

12

700707733

WIRE HARNESS

wire

1шт.

13

700707590

CONTROL VALVE

control

1шт.

Part of Elbow, Ref. 9, P/N 218-5105.

1шт.

Part of Elbow, Ref. 11, P/N 218-5135.

1шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

15

231-5146

FLANGE NUT,3/8"-16

2шт.

16

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

17

700707731

FLEXIBLE HOSE

hydraulic

1шт.

18

7872864

HOSE ASSY.

hydraulic

1шт.

19

700705647

TOGGLE SWITCH

1шт.
