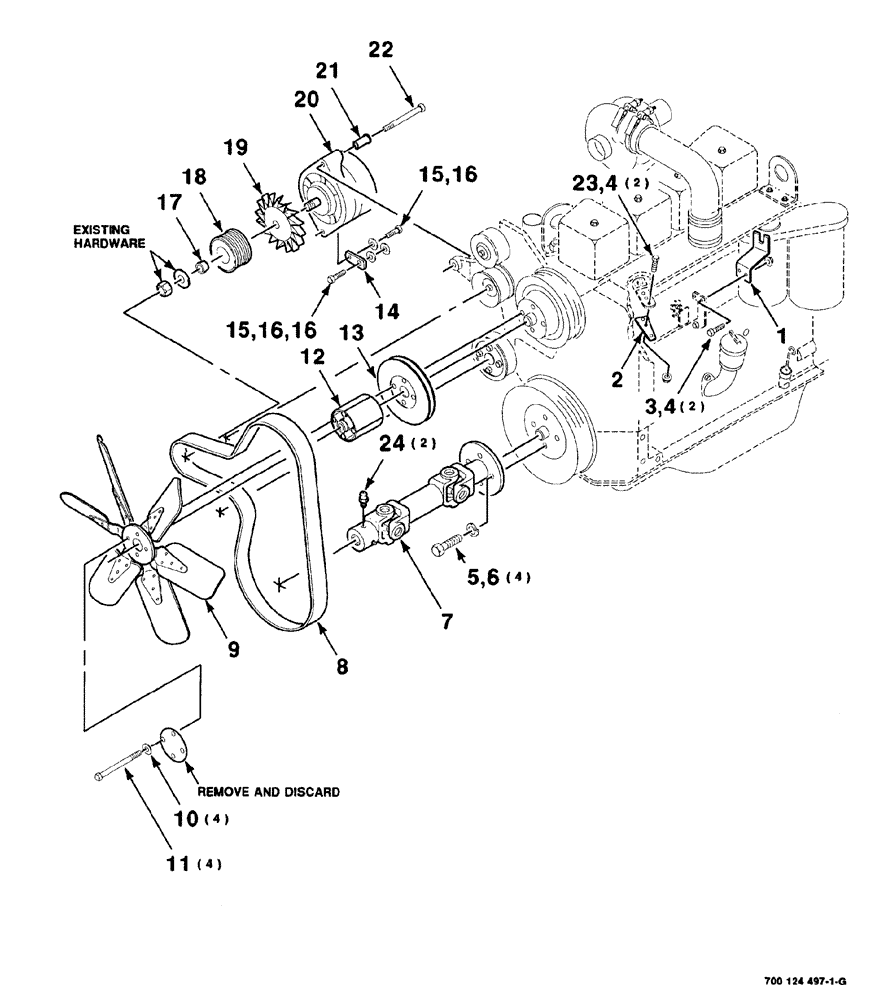

Запчасти Case IH 8840 (02-002) - ENGINE ASSEMBLY (ALTERNATOR, FAN AND FRONT DRIVE) (10) - ENGINE

1

700117885

MOUNTING PARTS

SUPPORT

1шт.

2

700124510

STRAP

throttle

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

5

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

6

492-11044

LOCK WASHER,7/16"

4шт.

7

700708536

UNIVERSAL JOINT

ASSEMBLY, see Figure 02-004

1шт.

8

J911561

BELT,27.92mm W x 1663.7mm L, 8 Ribs

1шт.

9

A189138

FAN

1шт.

10

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

plain, hardened, M10

4шт.

11

700708765

BOLT

SCREW cap, hex, M10 x 1.5 x 115

4шт.

12

A184524

SPACER

fan

1шт.

13

A189155

PULLEY

SHEAVE

1шт.

14

700117858

STRAP

1шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

17

J908563

RETAINER

pulley

1шт.

18

J908560

PULLEY

alternatnor

1шт.

19

221425R1

FAN

alternator, see Figure 10-056

1шт.

20

A187873

ALTERNATOR,12V, 65A

1шт.

20

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

20

AC187873

CORE-ALTERNATOR

Return number

1шт.

20

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

20

87297230

REMAN-ALTERNATOR

REMANUFACTURED 12 VOLT 65 AMP ALTERNATOR

1шт.

20

87297231

CORE-ALTERNATOR

Return Number, 12 VOLT 65 AMP ALTERNATOR

1шт.

21

J902469

SPACER

1шт.

22

7771975

SCREW,Hex, M10 x 100mm, Cl 8.8

cap, hex, M10 x 1.5 x 100

1шт.

23

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.
