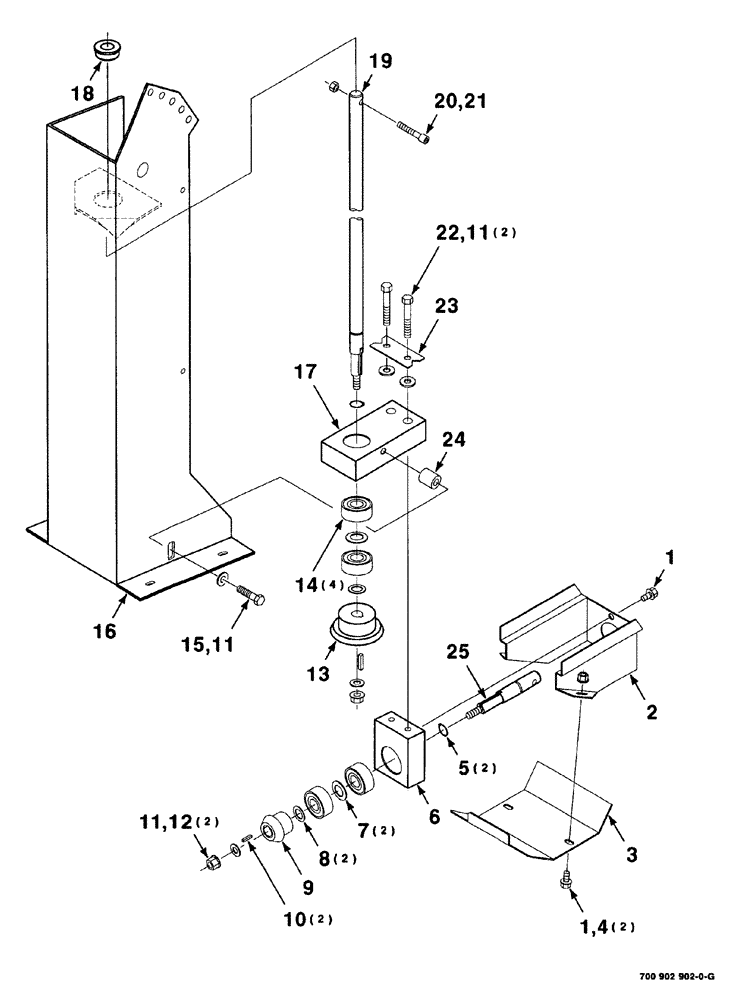

Запчасти Case IH 8840 (09-018) - STEERING RATIO SPEED-UP KIT (88) - ACCESSORIES

HK60633

KIT

steering ratio speed-up, complete, to be ordered thru wholegoods only

1шт.

1

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

2

700124267

COVER

1шт.

3

700124268

CAP

1шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

grade/F

2шт.

5

100-1675

SNAP RING,#75, Ext

2шт.

6

700124260

BEARING HOUSING

bearing

1шт.

7

52183

BUSHING

machinery, narrow rim, 3/4" x 18 gauge

2шт.

8

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

machinery, narrow rim, 5/8" x 18 gauge

2шт.

9

700711587

GEAR

bevel

1шт.

10

61002

KEY

3/16" x 3/16" x 1"

2шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

5шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, 3/8"-16, grade/G

2шт.

13

700711588

GEAR

bevel

1шт.

14

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

cylindrical

4шт.

15

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

16

700124265

CHANNEL

WA post

1шт.

17

700124259

BEARING HOUSING

bearing

1шт.

18

700705557

BUSHING

flanged

1шт.

19

700124258

SHAFT

1шт.

20

61-524

HEX SOC SCREW,5/16"-18 x 1 1/2"

cap, hex socket head, SPL, 5/16"-18 x 1-1/2"

1шт.

21

230-4115

LOCK NUT,5/16"-18, GA

lock, hex top, 5/16"-18, grade/B

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

23

700111558

LOCKING TAB

TAB

1шт.

24

6562011

SPACER

1шт.

25

700124261

SHAFT

1шт.
