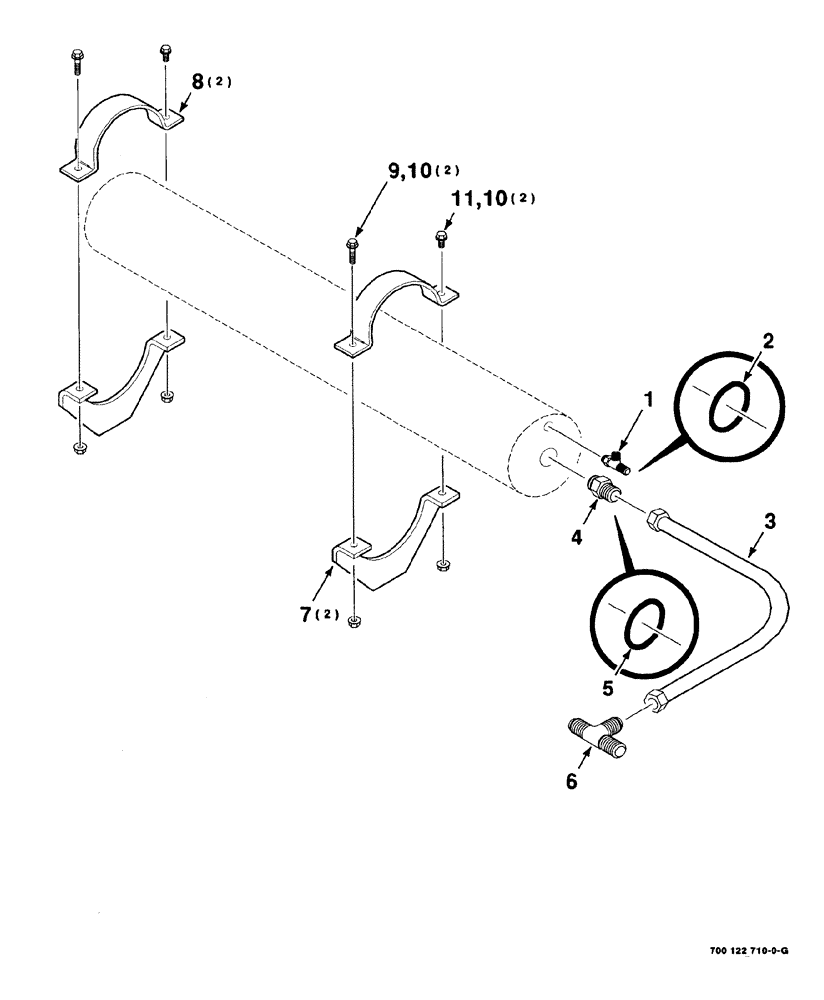

Запчасти Case IH 8840 (09-014) - ACCUMULATOR ADAPTER KIT (88) - ACCESSORIES

700122710

ADAPTER

KIT accumulator, complete

1шт.

1

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

With O-ring

1шт.

2

738468

O-RING

1шт.

3

700710133

TUBE,19.05 mm OD, 215, 215 mm Length

LINE hydraulic

1шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

5

738484

O-RING

1шт.

6

218-596

TEE,1 1/16"-12 37 Degree

tee

1шт.

7

700122707

SUPPORT

2шт.

8

700122708

STRAP

2шт.

9

700711084

BOLT

SCREW flange, hex, 3/8"-16 x 1-1/2", grade 8

2шт.

10

231-5146

FLANGE NUT,3/8"-16

4шт.

11

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.
