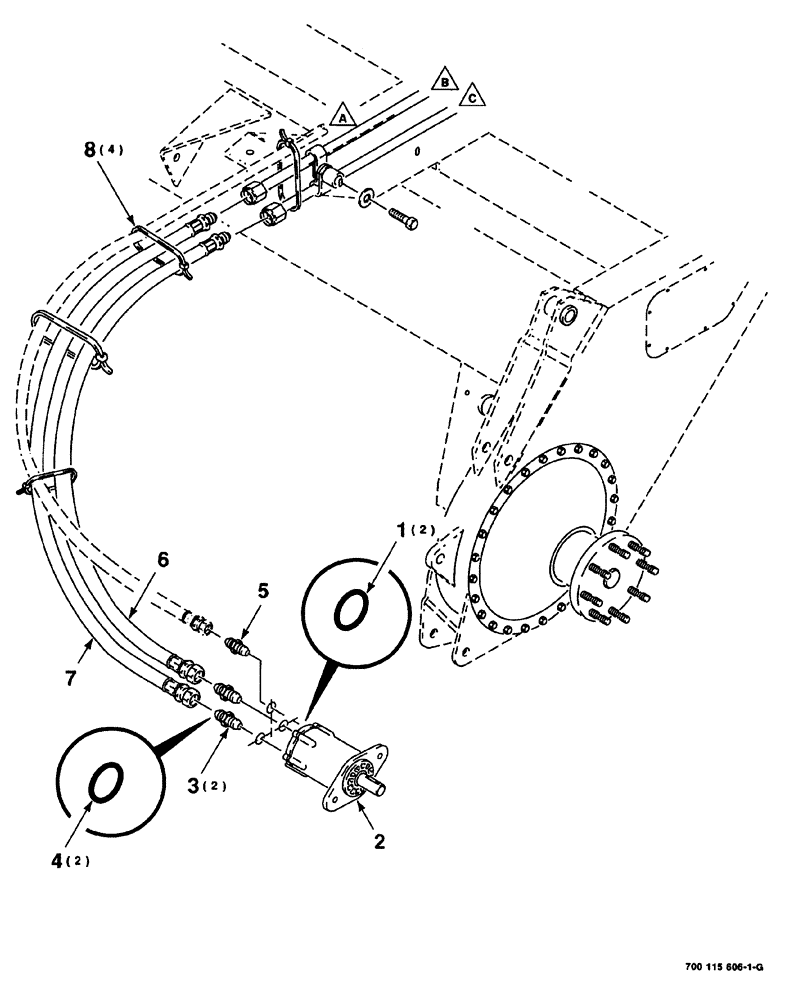

Запчасти Case IH 8840 (08-034) - HEADER DRIVE ASSEMBLY (FRONT) (58) - ATTACHMENTS/HEADERS

1

738468

O-RING

2шт.

Part of Flare O-ring Connector, Ref. 5, P/N 218-5057.

1шт.

2

700706977

HYDRAULIC MOTOR

see Figure 08-036

1шт.

700728299R

REMAN-HYD MOTOR

8840, Reman for New P/N 700706977

1шт.

700728299C

REMAN-HYD MOTOR

Return Number

1шт.

3

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 4

2шт.

4

738484

O-RING

2шт.

Part of Connector, Ref. 3, P/N 218-5050.

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 1

1шт.

6

700706992

HOSE

hydraulic

1шт.

7

700706993

HOSE

hydraulic

1шт.

8

529070

CABLE TIE,368.3mm L

TIE cable

4шт.
