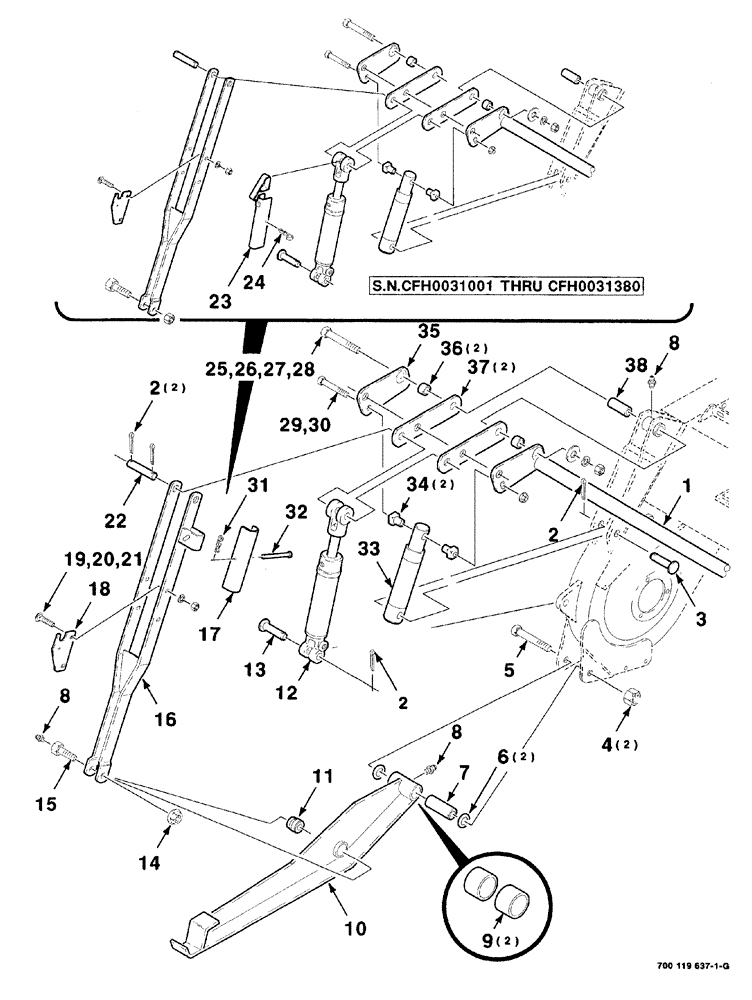

Запчасти Case IH 8840 (08-004) - HEADER FLOTATION AND LIFT ARM ASSEMBLY (RIGHT) (58) - ATTACHMENTS/HEADERS

1

700118683

SHAFT

torque

1шт.

2

432-1228

COTTER PIN,3/16" x 1 3/4"

4шт.

3

439-11668

HEADED PIN,25.4mm OD x 107.95mm L

1" x 4"

1шт.

4

232-41116

LOCK NUT,1"-8, GC

2шт.

5

700118693

PIN

BOLT, 1"-8 x 7"

1шт.

6

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

2шт.

7

700118691

SLEEVE,25.55mm ID x 38.34mm OD x 110mm L

lower

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

9

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

needle

2шт.

10

700111097

HYDRAULIC LIFT

ARM lower, right, without needle bearings

1шт.

11

700121583

SPACER

link, lift

1шт.

12

700705563

HYDRAULIC CYLINDER

hydraulic, right

1шт.

S.N. CFH0031001 thru CFH0031732.

1шт.

Due to a design change 700705563 and 700712020 are not interchangeable.

1шт.

700712020

CYLINDER

hydraulic, right

1шт.

S.N. CFH0031733 and later.

1шт.

Due to a design change 700705563 and 700712020 are not interchangeable.

1шт.

13

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

clevis, 1" x 3-1/2"

1шт.

14

232-53114

FLANGE NUT,Flg, 7/8"-9

lock, hex flange top, 7/8"-9, grade/G

1шт.

15

700121584

BOLT,Hex, 7/8" - 9 x , Gr 5

special

1шт.

16

700121586

LINK

vertical

1шт.

17

6251292

STOP

safety

1шт.

S.N. CFH0031381 and later.

1шт.

18

700110905

PLATE

hanger

1шт.

19

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

700111102

PIN

1шт.

23

700111931

STOP

safety

1шт.

S.N. CFH0031001 thru CFH0031380.

1шт.

24

T40222

SPLIT PIN/SAFETY PIN

cotter, wire hair, .243"

1шт.

S.N. CFH1131001 thru CFH0031380.

1шт.

25

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

hex, 3/4"-10 x 6-1/2"

1шт.

26

495-11081

WASHER,3/4", SAE

1шт.

27

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

28

425-1012

NUT,3/4"-10, G5

1шт.

29

326-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

1шт.

30

232-53110

FLANGE NUT,Flg, 5/8"-11

lock, hex flange top, 5/8"-11, grade/G

1шт.

31

T54573

PIN

cotter, wire hair, .120"

1шт.

32

63644

CLEVIS PIN

3/8" x 2-1/8"

1шт.

S.N. CFH0031381 and later.

1шт.

33

700705564

HYDRAULIC CYLINDER

hydraulic

1шт.

S.N. CFH0031001 thru CFH0031577.

1шт.

Due to a design change 700705564 and 700711647 are not interchangeable.

1шт.

700711647

CYLINDER,50.8mm Rod, 127mm Stroke

hydraulic

1шт.

Due to a design change 700705564 and 700711647 are not interchangeable.

1шт.

S.N. CFH0031578 and later.

1шт.

34

700118814

BUSHING

block

2шт.

35

700111101

PLATE

tube, torque

1шт.

36

6834071

BUSHING

2шт.

37

700111085

STRAP

link

2шт.

38

700111080

BUSHING

arm, lift

1шт.

S.N. CFH0031381 and later.

1шт.
