Запчасти Case IH 8840 (08-002) - HEADER FLOTATION AND LIFT ARM ASSEMBLY (LEFT) (58) - ATTACHMENTS/HEADERS

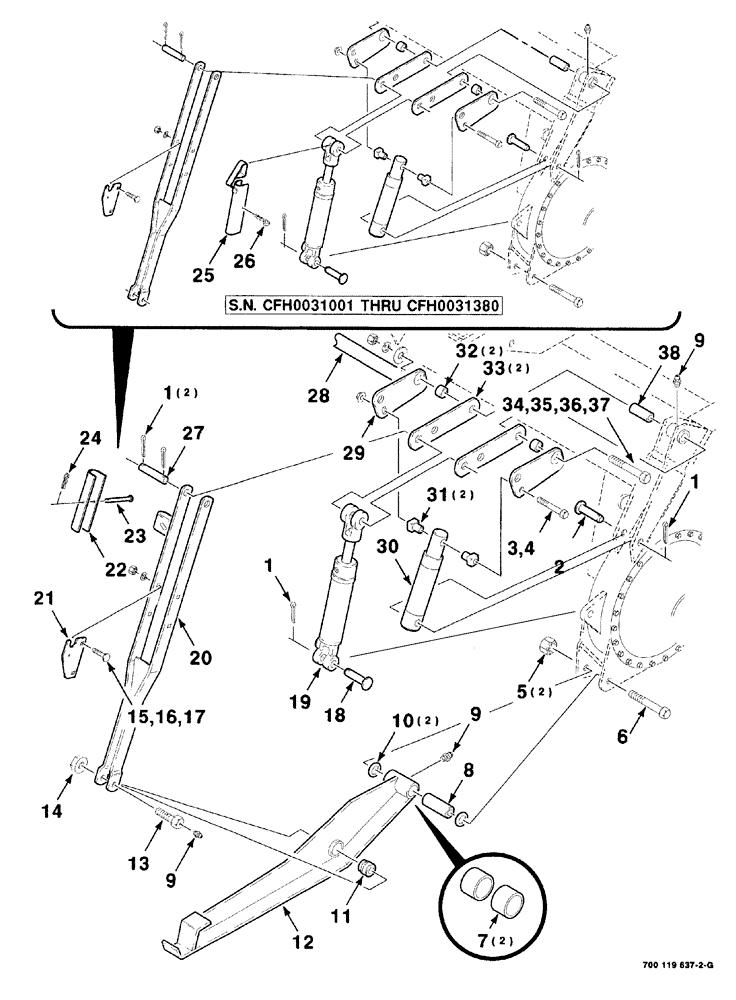

Схема запчастей Case IH 8840 - (08-002) - HEADER FLOTATION AND LIFT ARM ASSEMBLY (LEFT) (58) - ATTACHMENTS/HEADERS
1
1
32
7
20
25
9
9
33
34
31
38
26
6
3
10
11
27
19
30
4
16
12
24
13
29
36
37
9
8
1
21
35
5
18
28
23
17
15
22
2
14

Артикул

Название

Примечание

Количество

1

432-1228

COTTER PIN,3/16" x 1 3/4"

4шт.

2

439-11668

HEADED PIN,25.4mm OD x 107.95mm L

1" x 4"

1шт.

3

326-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

1шт.

4

232-53110

FLANGE NUT,Flg, 5/8"-11

lock, hex flange top, 5/8"-11, grade/G

1шт.

5

232-41116

LOCK NUT,1"-8, GC

2шт.

6

700118693

PIN

BOLT, 1"-8 x 7"

1шт.

7

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

needle

2шт.

8

700118691

SLEEVE,25.55mm ID x 38.34mm OD x 110mm L

lower

1шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

10

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

2шт.

11

700121583

SPACER

link, lift

1шт.

12

700111089

ARM

lower lift, left, without needle bearings

1шт.

13

700121584

BOLT,Hex, 7/8" - 9 x , Gr 5

special

1шт.

14

232-53114

FLANGE NUT,Flg, 7/8"-9

lock, hex flange top, 7/8"-9, grade/G

1шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

16

492-11038

LOCK WASHER,3/8"

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

clevis, 1" x 3-1/2"

1шт.

19

700705563

HYDRAULIC CYLINDER

hydraulic, see Figure 08-006

1шт.

S.N. CFH0031001 thru CFH0031732.

1шт.

Due to a design change 700705563 and 700712021 are not interchangeable.

1шт.

700712021

CYLINDER

hydraulic, left, see Figure 08-008

1шт.

Due to a design change 700705563 and 700712021 are not interchangeable.

1шт.

S.N. CFH0031733 and later.

1шт.

20

700121586

LINK

vertical

1шт.

21

700110905

PLATE

hanger

1шт.

22

6251292

STOP

safety

1шт.

23

63644

CLEVIS PIN

3/8" x 2-1/8"

1шт.

S.N. CFH0031381 and later.

1шт.

24

T54573

PIN

cotter, wire hair, .120"

1шт.

25

700111931

STOP

safety

1шт.

S.N. CFH0031001 thru CFH0031380.

1шт.

26

T40222

SPLIT PIN/SAFETY PIN

cotter, wire hair

1шт.

S.N. CFH0031001 thru CFH0031380.

1шт.

27

700111102

PIN

1шт.

28

700118683

SHAFT

torque

1шт.

29

700111101

PLATE

tube, torque

1шт.

30

700705564

HYDRAULIC CYLINDER

hydraulic

1шт.

S.N. CFH0031001 thru CFH0031577.

1шт.

Due to a design change 700705564 and 700711647 are not interchangeable.

1шт.

700711647

CYLINDER,50.8mm Rod, 127mm Stroke

hydraulic, see Figure 08-012

1шт.

Due to a design change 700705564 and 700711647 are not interchangeable.

1шт.

S.N. CFH0031578 and later.

1шт.

31

700118814

BUSHING

block

2шт.

32

6834071

BUSHING

2шт.

33

700111085

STRAP

link

2шт.

34

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

hex, 3/4"-10 x 6-1/2"

1шт.

35

495-11081

WASHER,3/4", SAE

1шт.

36

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

37

425-1012

NUT,3/4"-10, G5

1шт.

38

700111080

BUSHING

arm, lift

1шт.

S.N. CFH0031381 and later.

1шт.

Выбрано товаров: 52
