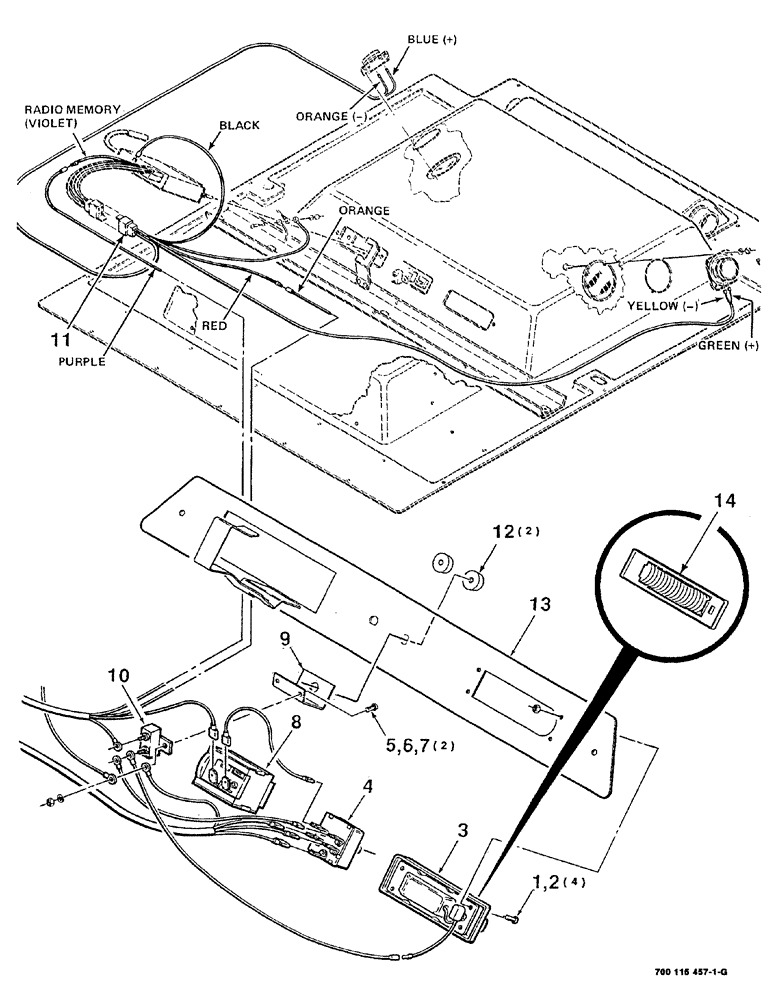

Запчасти Case IH 8840 (04-018) - BLOWER CONTROL PANEL ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

machine, pan head, cross recess, No. 6-32 x 3/8"

4шт.

2

225-14106

NUT,#6-32

4шт.

3

8020562

LAMP

DOMELIGHT

1шт.

4

245258A1

ROTARY SWITCH

blower

1шт.

5

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

2шт.

6

492-11010

LOCK WASHER,#10

2шт.

7

225-14110

NUT,#10-24

2шт.

8

8022337

SWITCH

thermostat

1шт.

9

700110144

MOUNTING PLATE

circuit breaker

1шт.

10

7025653

CIRCUIT-BREAKER

1шт.

11

700712487

HARNESS

radio

1шт.

12

539024R1

KNOB

control

2шт.

13

700124526

PANEL

control

1шт.

14

8022816

SWIVEL CONNECTION

BEZEL and LENS

1шт.
