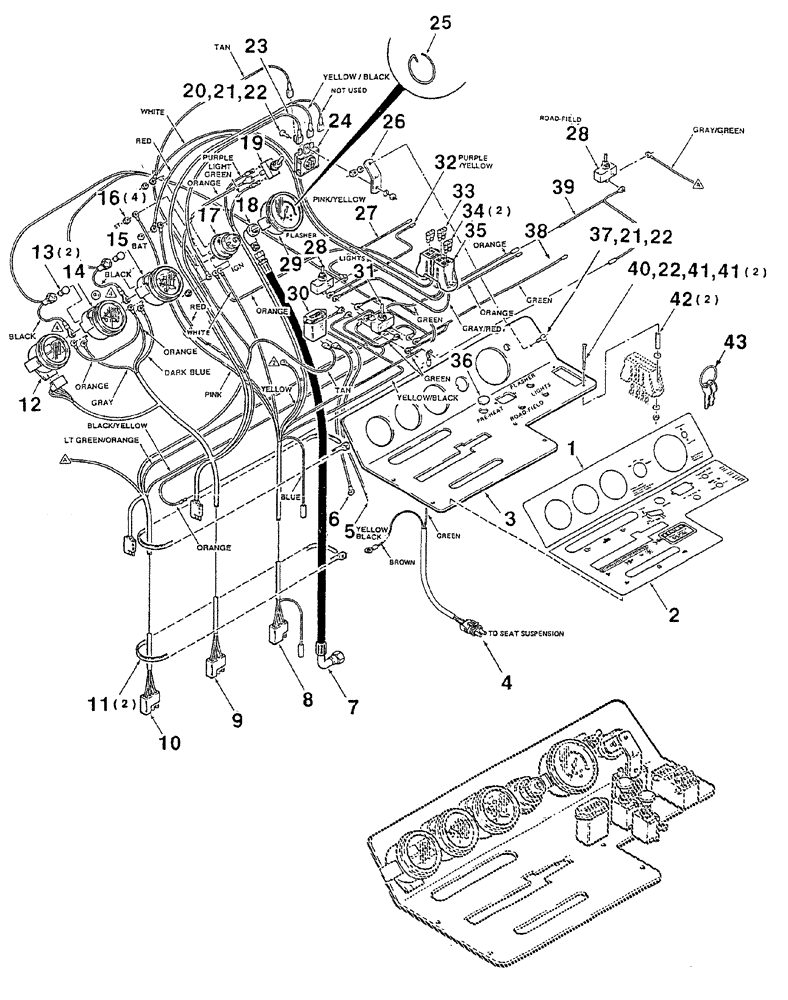

Запчасти Case IH 8840 (04-016) - CONTROL PANEL ASSEMBLY (S.N. CFH0031466 AND LATER) (55) - ELECTRICAL SYSTEMS

1

700707775

DECAL

panel, console

1шт.

2

700706918

DECAL

panel, console

1шт.

3

700115521

PANEL

console

1шт.

4

700713815

HARNESS

wire

1шт.

5

700705658

WIRE HARNESS

electrical

1шт.

6

700705661

WIRE HARNESS

electrical

1шт.

7

700707385

HOSE

ASSEMBLY

1шт.

8

700705666

WIRE HARNESS

wiring

1шт.

9

700705664

WIRE HARNESS

wiring

1шт.

10

700707108

WIRE HARNESS

wire

1шт.

11

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

2шт.

12

700707106

INSTRUMENT CLUSTER

indicator light

1шт.

13

B50213

BULB

lamp

2шт.

14

8022022

FUEL GAUGE

1шт.

15

700707105

VOLTMETER

GAUGE

1шт.

16

225-14210

NUT,#10-32

4шт.

17

D75657

SWITCH

starter

1шт.

18

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

ELBOW, 90°

1шт.

19

700705647

TOGGLE SWITCH

1шт.

20

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan head, cross recess, No.10-24 x 1/2"

1шт.

21

492-11010

LOCK WASHER,#10

2шт.

22

225-14110

NUT,#10-24

4шт.

23

700711340

ELECTRICAL WIRE

WIRE electrical

1шт.

24

299985A1

BUZZER

1шт.

25

700709829

DIPSTICK

INDICATOR

1шт.

26

700111196

MOUNTING PLATE

buzzer

1шт.

27

700706886

WIRE

electrical

1шт.

28

700706896

SWITCH

2шт.

29

700705581

SENDER UNIT

pressure

1шт.

30

L107631

METER

hour

1шт.

31

700706897

SWITCH

1шт.

32

700706885

WIRE

electrical

1шт.

33

A149804

FUSE

1шт.

34

A149800

FUSE,10 Amp

2шт.

35

700710348

FUSE HOLDER

fuse box

1шт.

36

7745052

BUSHING

BUTTON snap in

1шт.

37

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

1шт.

38

700706888

WIRE HARNESS

wire

1шт.

39

700707104

WIRE HARNESS

WIRE electrical

1шт.

40

700710346

SCREW

machine, pan head, cross recess, No. 12-24 x 2"

2шт.

41

27616R1

WASHER,.281" x 5/8" x .075", HDN

plain, No.12

4шт.

42

38-32420

PIN,9.53mm OD x 31.75mm L, Coiled

spring, slotted, 8 x 32 (Metric)

2шт.

43

700712801

KEY

ignition

1шт.
