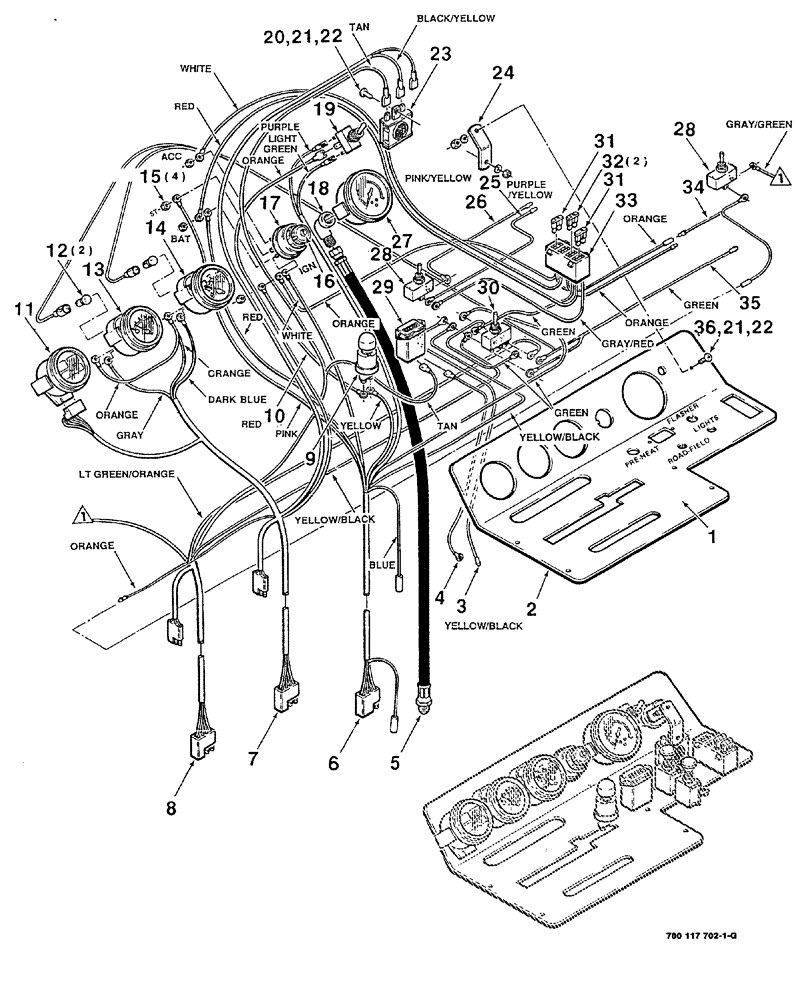

Запчасти Case IH 8840 (04-014) - CONTROL PANEL ASSEMBLY (S.N. CFH0031001 THRU CFH0031465) (55) - ELECTRICAL SYSTEMS

1

700706918

DECAL

panel, console, half

1шт.

2

700115521

PANEL

console

1шт.

3

700705658

WIRE HARNESS

electrical

1шт.

4

700705661

WIRE HARNESS

electrical

1шт.

5

700705606

FLEXIBLE HOSE

gauge

1шт.

6

700705666

WIRE HARNESS

wiring

1шт.

7

700705664

WIRE HARNESS

wiring

1шт.

8

700707108

WIRE HARNESS

wire

1шт.

9

A30858

SWITCH

STARTING SWITCH - push button type

1шт.

10

7724289

ELECTRICAL WIRE

WIRE electrical

1шт.

11

700707106

INSTRUMENT CLUSTER

indicator light

1шт.

12

B50213

BULB

lamp

2шт.

13

8022022

FUEL GAUGE

1шт.

14

700707105

VOLTMETER

1шт.

15

225-14210

NUT,#10-32

4шт.

16

A20346

KEY

ignition

1шт.

17

D75657

SWITCH

starter

1шт.

18

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

ELBOW, 90°

1шт.

19

700705647

TOGGLE SWITCH

1шт.

20

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan head, cross recess, No. 10-24 x 1/2"

2шт.

21

225-14110

NUT,#10-24

2шт.

22

492-11010

LOCK WASHER,#10

2шт.

23

S299985A1

BUZZER

1шт.

24

700111196

MOUNTING PLATE

buzzer

1шт.

25

700706885

WIRE

electrical

1шт.

26

700706886

WIRE

electrical

1шт.

27

700705581

SENDER UNIT

pressure

1шт.

28

700706896

SWITCH

2шт.

29

L107631

METER

hour

1шт.

30

700706897

SWITCH

1шт.

31

A149800

FUSE,10 Amp

2шт.

32

A149804

FUSE

1шт.

33

700706893

FUSE HOLDER

fuse box

1шт.

P/N 700710348 interchanges with P/N 700706893, but existing stock of P/N 700706893 should be used prior to ordering P/N 700710348.

1шт.

700710348

FUSE HOLDER

fuse box

1шт.

P/N 700710348 interchanges with P/N 700706893, but P/N 700710348 must be stocked for it's respective effectivity.

1шт.

34

700707104

WIRE HARNESS

WIRE electrical

1шт.

35

700706888

WIRE HARNESS

wire

1шт.

36

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

1шт.
