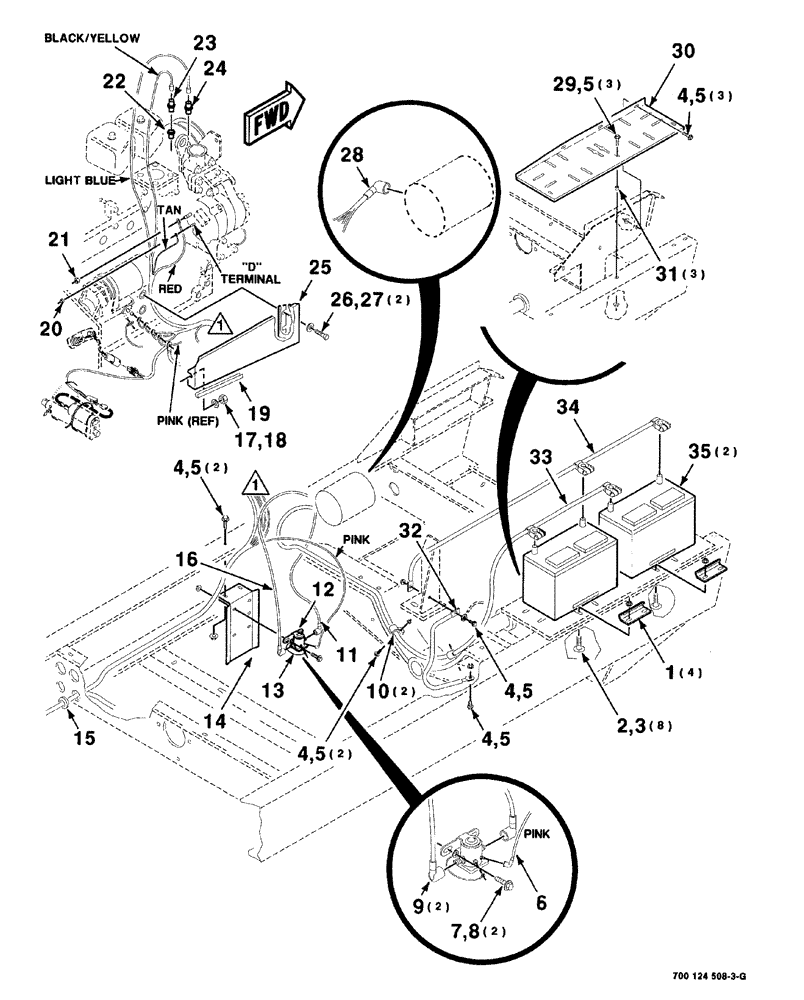

Запчасти Case IH 8840 (04-010) - ENGINE WIRING ASSEMBLY (BATTERY CABLES) (55) - ELECTRICAL SYSTEMS

1

6827695

CLAMP BRACKET

HOLDDOWN

4шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

8шт.

3

231-5146

FLANGE NUT,3/8"-16

8шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

9шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

6

700707064

SHIELD

terminal, electrical

1шт.

7

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

9

700707961

SHIELD

terminal, electrical

2шт.

10

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line

2шт.

11

700713367

ELECTRICAL WIRE

WIRE electrical

1шт.

12

8722639

SOLENOID SWITCH

1шт.

13

8722621

ELECTRICAL WIRE

WIRE electrical

1шт.

14

700115731

SUPPORT

relay

1шт.

15

700707095

GROMMET

1шт.

16

700713366

ELECTRICAL WIRE

WIRE electrical

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

1шт.

18

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

1шт.

19

6835060

GROMMET

TRIM

1шт.

20

825-1405

NUT,M5, Cl 8

1шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

22

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

reducer

1шт.

23

700714587

SWITCH

temperature

1шт.

24

700708219

TEMPERATURE SENDER

1шт.

25

700117931

SHIELD

starter

1шт.

26

7771843

SCREW

cap, hex, M12 x 1.75 x 16

2шт.

27

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

28

700707065

SHIELD

terminal, electrical

1шт.

29

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

SCREW machine, hex washer head, 5/16"-18 x 1"

3шт.

30

700124652

RACK

battery

1шт.

31

6179832

SPACER

3шт.

32

722868

CABLE

ground

1шт.

33

700707058

ELECTRIC CABLE

starter, battery

1шт.

34

700707057

GROUND CABLE

ground, battery

1шт.

35

B24F72W

WET BATTERY

24F, 600 amp

2шт.
