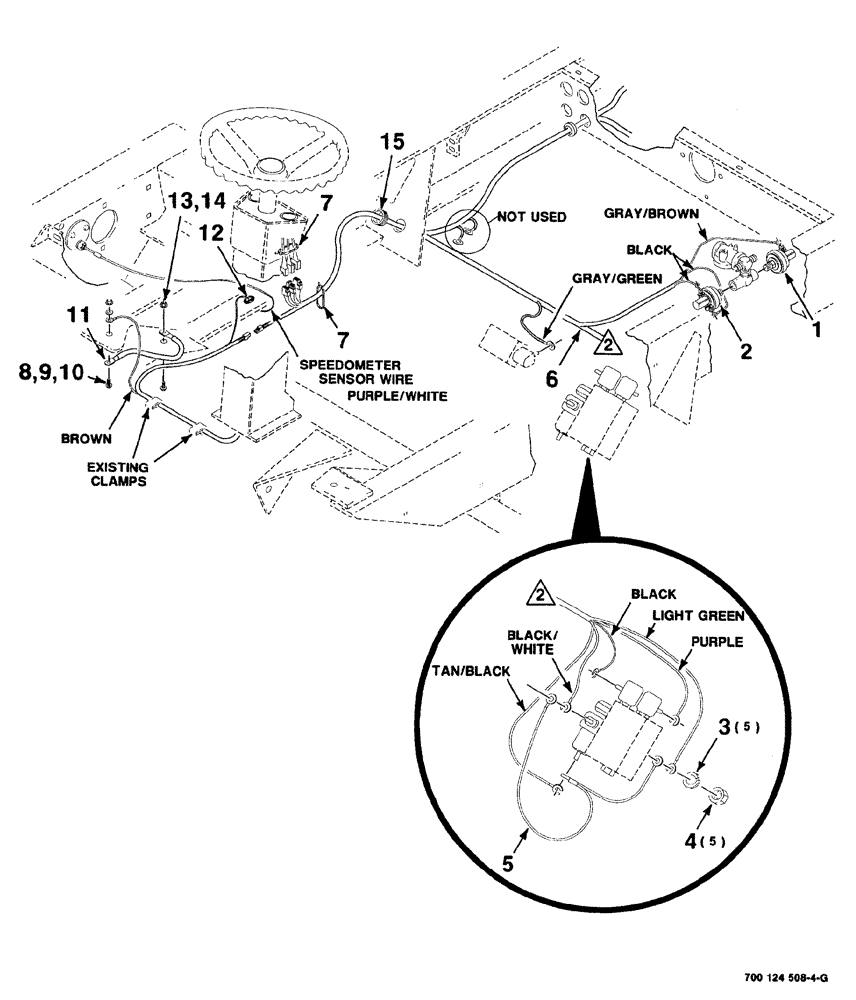

Запчасти Case IH 8840 (04-008) - ENGINE WIRING ASSEMBLY (FRONT) (55) - ELECTRICAL SYSTEMS

1

700707070

PRESSURE SWITCH

pressure

1шт.

2

700706901

PRESSURE SWITCH

pressure

1шт.

3

492-11010

LOCK WASHER,#10

5шт.

4

225-14210

NUT,#10-32

5шт.

5

700705693

WIRE HARNESS

wire

1шт.

6

700708514

HARNESS

wire

1шт.

7

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

2шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

1шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

11

722868

CABLE

ground

1шт.

12

27862

GROMMET

1шт.

13

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

14

231-5146

FLANGE NUT,3/8"-16

1шт.

15

700707095

GROMMET

1шт.
