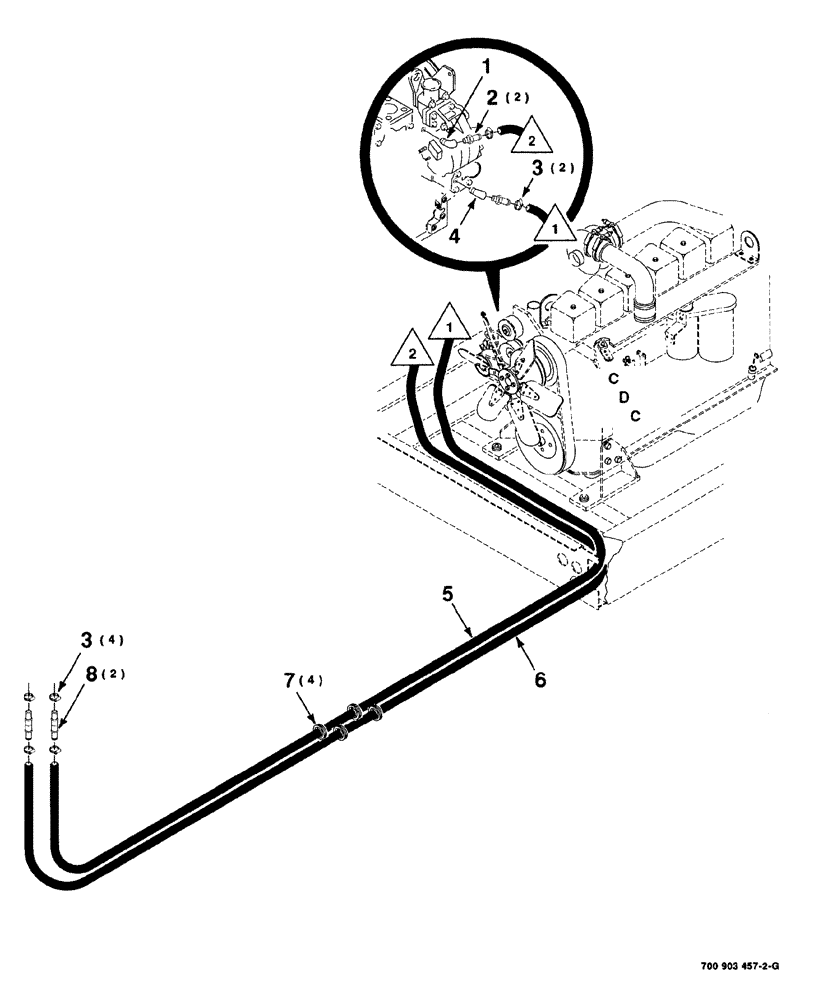

Запчасти Case IH 8840 (09-012) - HEATER KIT (50) - CAB CLIMATE CONTROL

HK60594

HEATER

KIT complete, to be ordered thru wholegoods only

1шт.

1

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

ELBOW, 90°

1шт.

2

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

INSERT

2шт.

3

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

6шт.

4

137894

ELBOW,45 Degree, 1/2" NPT Street

ELBOW, 45°

1шт.

5

700122711

HEATER HOSE,0.63" ID x 76.77", SAE 30R3 Class D2

Return, Heater

1шт.

6

700122712

HEATER HOSE,0.63" ID x 92.52", SAE 30R3 Class D2

Pressure, Heater

1шт.

7

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

4шт.

8

700710295

FITTING

HOSE splicer

2шт.
