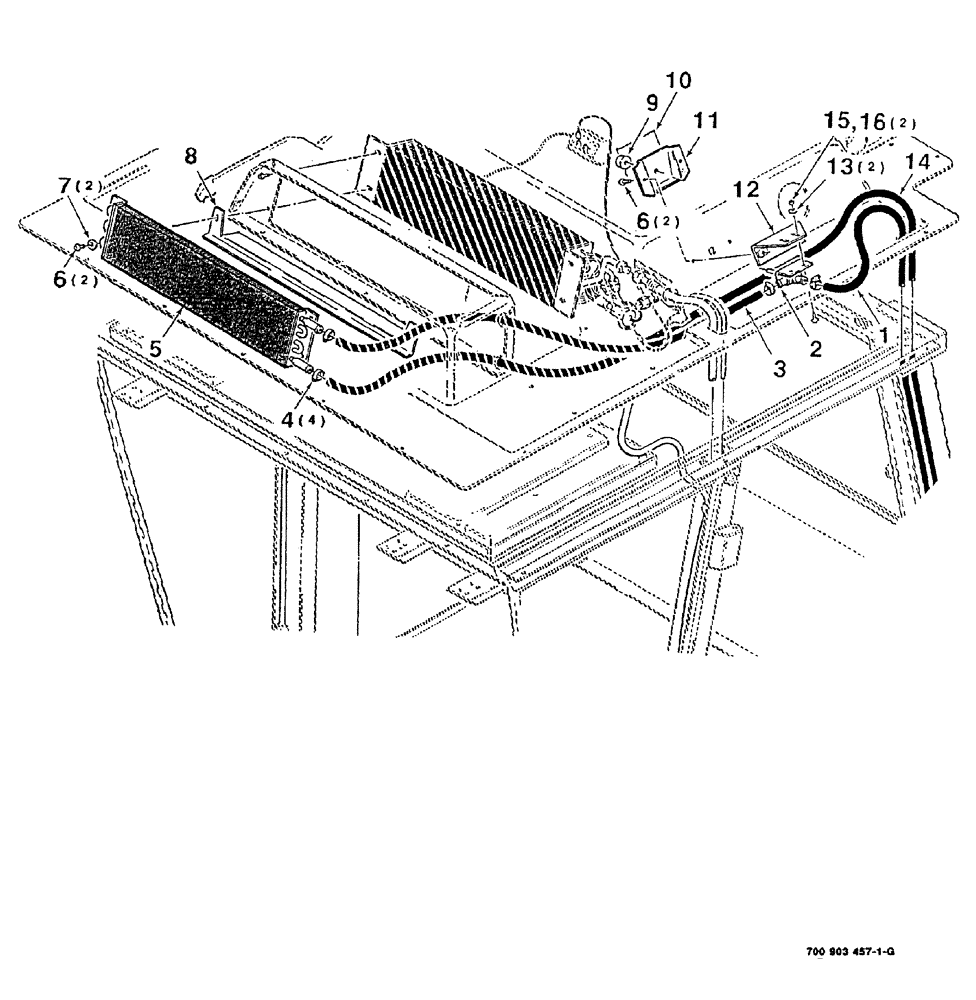

Запчасти Case IH 8840 (09-010) - HEATER KIT (50) - CAB CLIMATE CONTROL

HK60594

HEATER

KIT complete, also includes the information shown in Figure 09-012, to be ordered thru wholegoods only

1шт.

1

700120993

HEATER HOSE,0.63" ID x 77.95"

Pressure, Heater

1шт.

2

700709777

HYDRAULIC VALVE

control, water

1шт.

3

700120994

HEATER HOSE,0.63" ID x 33.23"

Pressure, Heater

1шт.

4

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

4шт.

5

700709005

CORE

heater

1шт.

6

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

machine, hex washer head, 1/4"-20 x 3/4"

4шт.

7

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4"

2шт.

8

700120672

PAN

drain

1шт.

9

539024R1

KNOB

control

1шт.

10

700709795

DECAL

heater

1шт.

Part of Valve Cover, Ref. 11, P/N 700120988.

1шт.

11

700120988

PANEL

COVER valve, Includes: Ref. 10

1шт.

12

700120990

SUPPORT

valve

1шт.

13

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan head, cross recess, No. 10-24 x 1/2"

2шт.

14

495-31022

WASHER,#10

2шт.

15

225-14110

NUT,#10-24

2шт.

16

700120992

HEATER HOSE,0.63" ID x 118.11"

Return, Heater

1шт.
