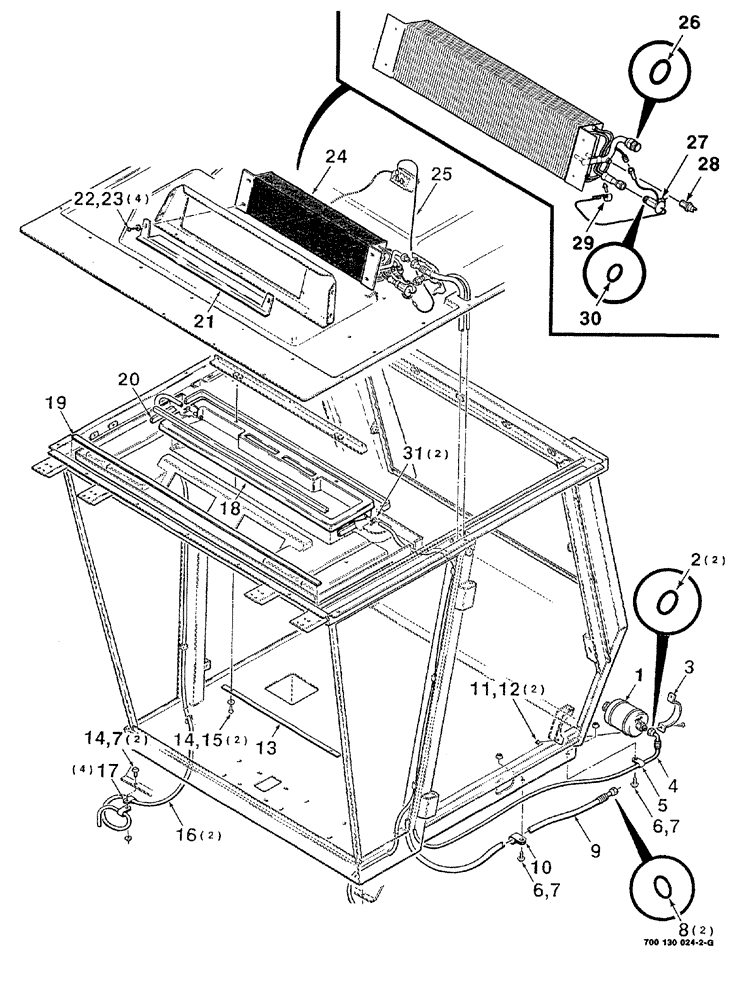

Запчасти Case IH 8840 (07-048) - AIR CONDITIONER EVAPORATOR AND DRYER ASSEMBLY (S.N. CFH0086001 AND LATER) (50) - CAB CLIMATE CONTROL

1

700705099

RECEIVER-DRYER

RECEIVER/DRYER

1шт.

2

700712717

O-RING

2шт.

Part of Hose Assembly, Ref. 4, P/N 700712706.

1шт.

3

6804587

CLAMP

dryer

1шт.

4

700712706

HOSE

ASSEMBLY, 5/16" ID, Includes: Ref. 2

1шт.

5

756460

CLAMP

1шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

8

31-1809

O-RING

O-RING

2шт.

Part of Hose Assembly, Ref. 9, P/N 700712716.

1шт.

9

700712716

HOSE

ASSEMBLY, 1/2" ID, Includes: Ref. 8

1шт.

10

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

11

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

machine, hex washer head, 1/4"-20 x 1"

2шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

13

700115437

STRAP

1шт.

14

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

SCREW machine, hex washer head, 5/16"-18 x 1"

4шт.

15

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

16

700110137

HOSE,0.50" ID x 156.10",

Drain

2шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

18

700119893

PAN

ASSEMBLY drain

1шт.

19

6805055

SEAL

12 foot bulk length

1шт.

20

700110139

SEAL

12 foot bulk length

1шт.

21

700120672

PAN

drain

1шт.

22

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

23

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4"

4шт.

24

700712700

HEATER ASSY.

CORE evaporator, Includes: Ref. 26

1шт.

25

700706889

WIRE

electrical

1шт.

26

700712718

O-RING

neoprene, .426" ID

1шт.

Part of Evaporator Core, Ref. 24, P/N 700712700.

1шт.

27

700712704

VALVE

expansion

1шт.

S.N. CFH0086001 thru CFH0086415.

1шт.

Due to a design change P/N 700712704 and P/N 700711760 are not interchangeable.

1шт.

700711760

VALVE

expansion, Includes: Ref. 30

1шт.

S.N. CFH0086416 and later.

1шт.

Due to a design change P/N 700712704 and P/N 700711760 are not interchangeable.

1шт.

28

700706904

PRESSURE SWITCH

low pressure

1шт.

29

8020398

CLAMP

spring

1шт.

30

700712771

O-RING

neoprene, .176" ID

1шт.

Part of Expansion Valve, P/N 700711760.

1шт.

31

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.
