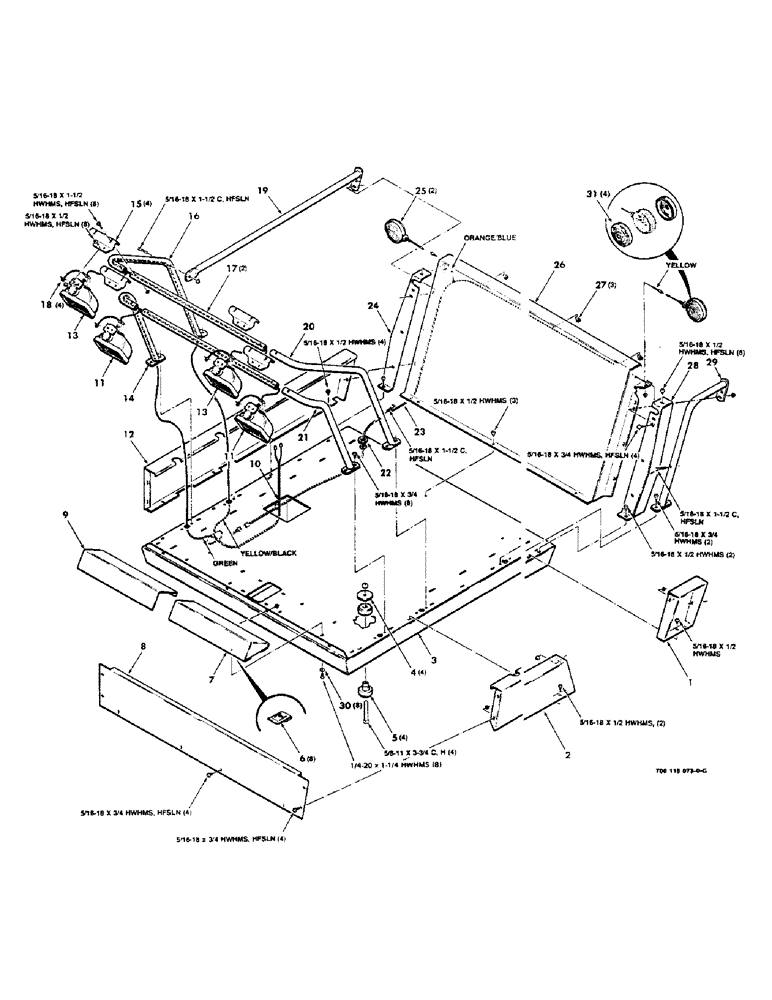

Запчасти Case IH 8830 (7-18) - OPEN PLATFORM ASSEMBLY (09) - CHASSIS

1

700115251

PANEL

- end, rear

1шт.

2

700115250

PANEL

- left

1шт.

3

700115255

PLATFORM

FLOORBOARD

1шт.

4

NLS

NO LONGER SERVICED

CAP - washer

4шт.

5

700704796

RUBBER MOUNTING

MOUNT - cushion

4шт.

6

74740

NUT

1/4-20 SPEED NUT

8шт.

7

700110110

SUPPORT

- left

1шт.

8

700115252

SHIELD

- front

1шт.

9

700110111

SUPPORT

- right

1шт.

10

700707220

WIRE HARNESS

HARNESS - wiring

1шт.

11

700705184

WORK LAMP

HEADLIGHT

2шт.

12

700115254

PANEL

- right

1шт.

13

700705183

HEADLAMP

FLOODLIGHT

2шт.

14

700116262

RAIL

- lower, right

1шт.

15

700115079

MOUNTING PARTS

MOUNT - light

4шт.

16

700115077

RAIL

- upper, right

1шт.

17

700115262

PIPE

- guard, center

2шт.

18

700705124

WIRE

- electrical

4шт.

19

700115083

PIPE

- guardrail

1шт.

20

700115074

RAIL

- upper, left

1шт.

21

700116261

RAIL

- lower, left

1шт.

22

827758

GROMMET

1шт.

23

700707221

WIRE HARNESS

HARNESS - wiring

1шт.

24

700115090

PANEL

- right

1шт.

25

700708036

SIDE LAMP ASSY

FLASHER

2шт.

26

700115245

PANEL

- rear

1шт.

27

722496

CLIP

3шт.

28

700115085

PANEL

- left

1шт.

29

700115080

PIPE

- rail, rear

1шт.

30

705517

WASHER

1/4 HARDENED PLAIN WASHER

8шт.

31

700711749

LENS

- flasher

4шт.

7701717

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16-18 X 1-1/2 C

3шт.

703355

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8-11 X 3-3/4 C

4шт.

7883291

SCREW,Hex Washer, 1/4" - 20 x 1 1/4"

1/4-20 X 1-1/4 HWHMS

8шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HWHMS

26шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

22шт.

7883358

SCREW,Hex Washer, 5/16" - 18 x 1 1/2"

5/16-18 X 1-1/2 HWHMS

8шт.
