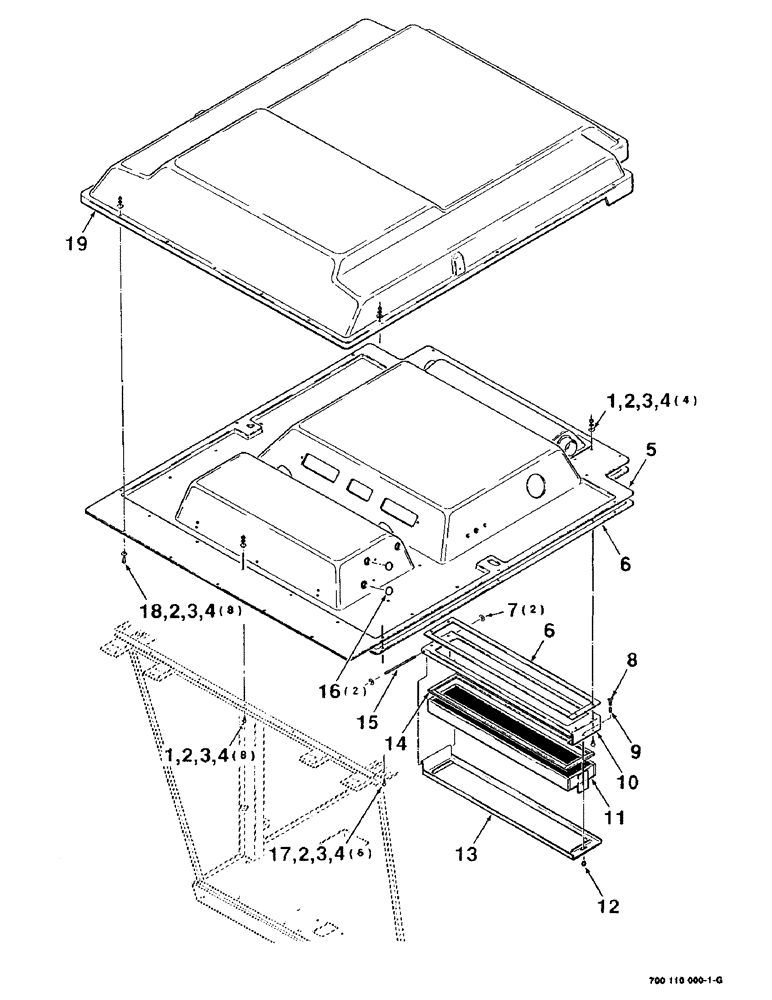

Запчасти Case IH 8830 (7-16) - CAB ROOF AND FRAME ASSEMBLY (09) - CHASSIS

1

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

12шт.

2

700709601

WASHER,1/4"

1/4 WIDE PLAIN WASHER

26шт.

3

705012

LOCK WASHER

1/4"

26шт.

4

704007

NUT,1/4"-20, G5

1/4-20 H

26шт.

5

700110113

ROOF LINING

HEADLINER ASSEMBLY

1шт.

6

6805055

SEAL

- strip (20 bulk length)

1шт.

7

700707858

SNAP RING

RING - retainer

2шт.

8

7894975

CLIP

1шт.

9

7758212

SPRING

1шт.

10

700116911

PANEL

- filter

1шт.

11

8022345

FILTER

1шт.

12

7894967

HANDLE

1шт.

13

700116912

LID

- filter

1шт.

14

8022501

SEAL

- filter

1шт.

15

700116914

PIN

- hinge

1шт.

16

700708527

PLUG

- hole

2шт.

17

7883283

SCREW,Hex Washer, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

6шт.

18

7703457

HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 C

8шт.

19

700110118

ROOF

CAP - outer

1шт.
